On-Vehicle Inspection

SUSPENSION: FRONT UPPER SUSPENSION ARM (for AWD): ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT FRONT SUSPENSION UPPER ARM BALL JOINT RATTLE
(a) Jack up the vehicle.

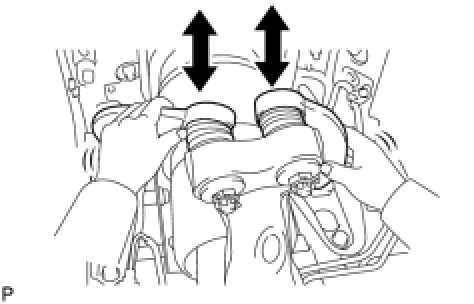

(b) Move the front suspension upper arm up and down by hand, and check for rattle.
OK:
No rattle.
