On-Vehicle Inspection

SUSPENSION: FRONT LOWER SUSPENSION ARM (for AWD): ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT FRONT LOWER SUSPENSION ARM BALL JOINT RATTLE
(a) Jack up the vehicle.

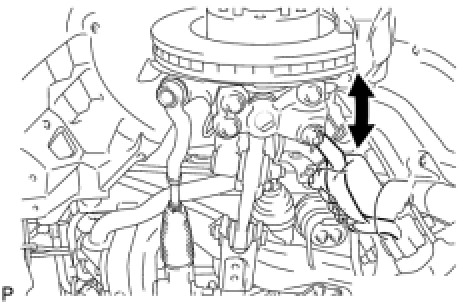

(b) Move the front No. 2 suspension lower arm up and down by hand, and check for rattle.
OK:
No rattle.
