Freeze Frame Data








STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: FREEZE FRAME DATA

FREEZE FRAME DATA

1. FREEZE FRAME DATA
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG) and check the freeze frame data by following the prompts on the tester screen.

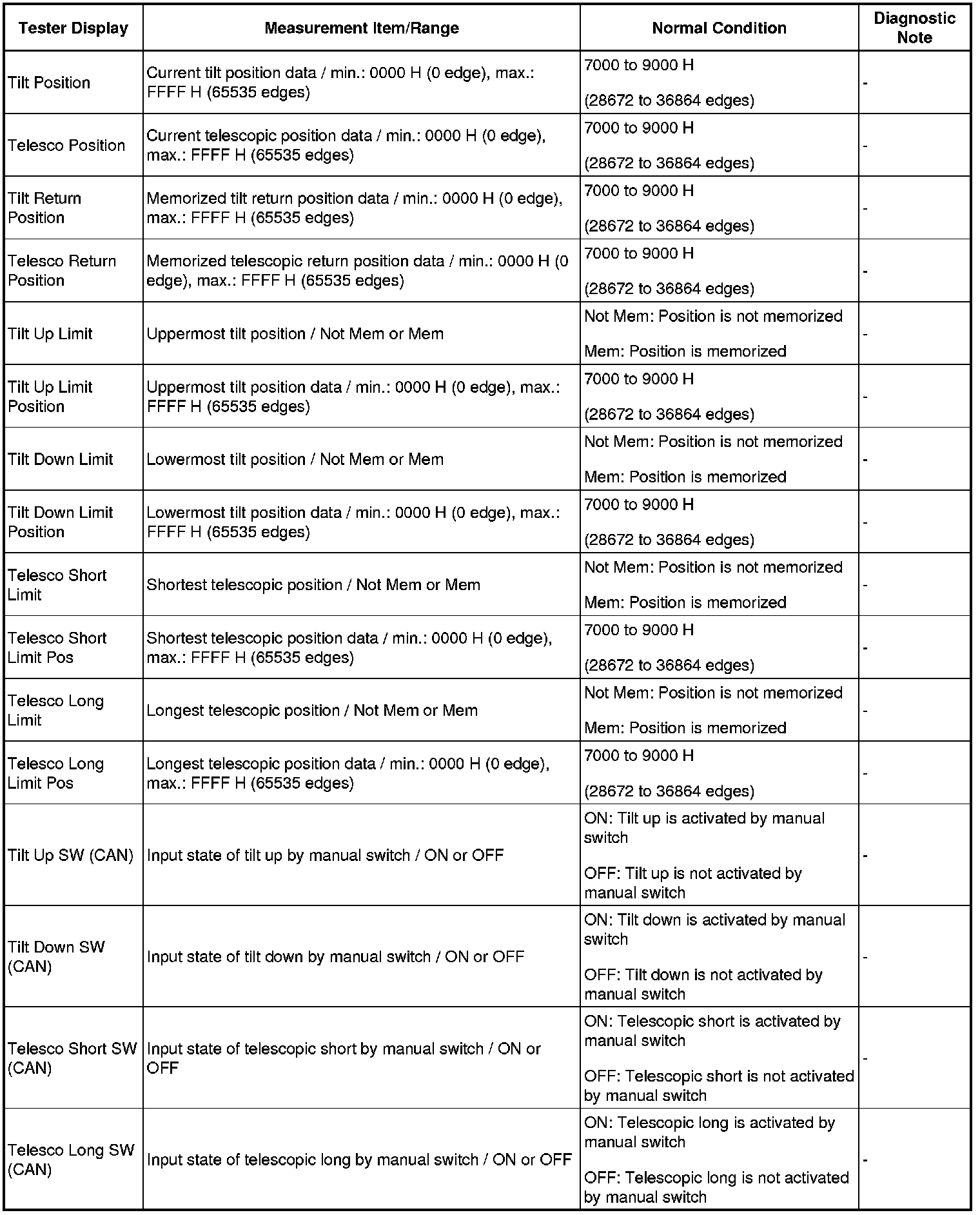

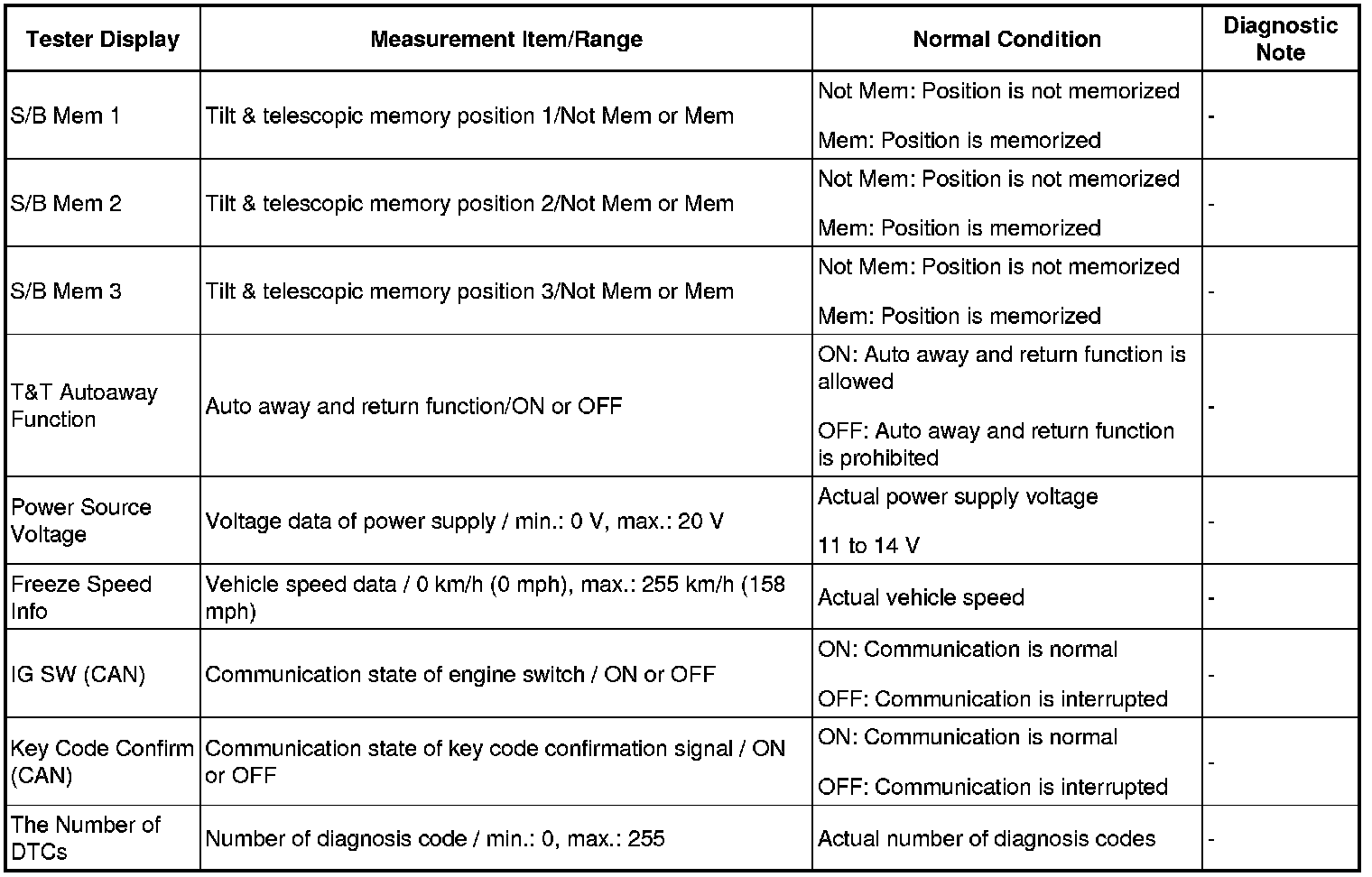

Tilt & Telescopic:
