OTHER SYSTEM: REAR POWER OUTLET SOCKET (for Ottoman): INSTALLATION

INSTALLATION





1. INSTALL POWER OUTLET SOCKET

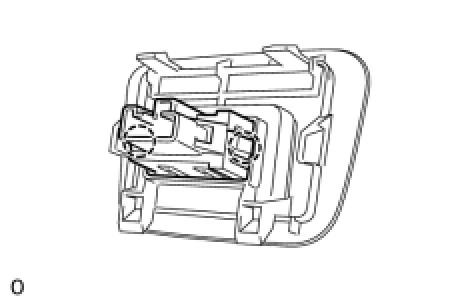

(a) Attach the 2 claws to install the outlet socket to the box plate.





2. INSTALL CONSOLE BOX PLATE

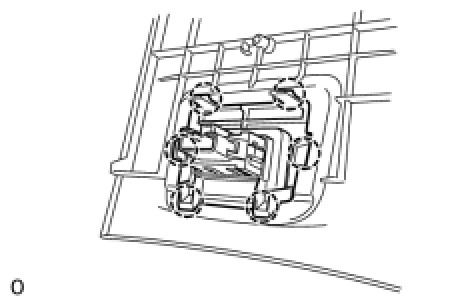

(a) Attach the 6 claws of the box plate to the rear console end panel.
3. INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY Installation
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
6. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
