Installation

OTHER SYSTEM: POWER OUTLET SOCKET (for Ottoman): INSTALLATION

INSTALLATION

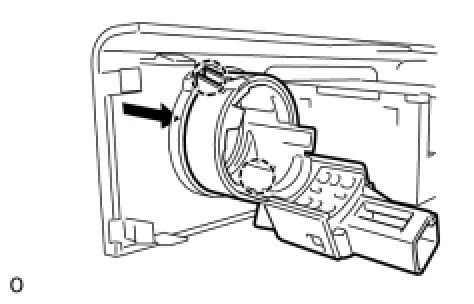

1. INSTALL REAR CIGARETTE LIGHTER BEZEL STAY (W/ Cigarette Lighter)





(a) Attach the 2 claws to install the bezel stay.

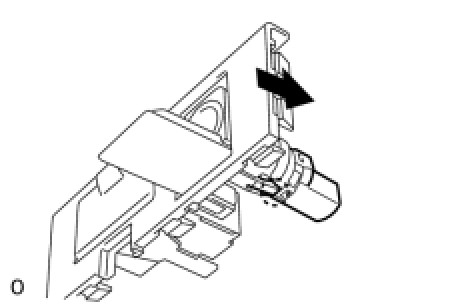

2. INSTALL REAR CIGARETTE LIGHTER ASSEMBLY (W/ Cigarette Lighter)





(a) Attach the claw to install the rear cigarette lighter.





3. INSTALL REAR CIGARETTE LIGHTER COVER (W/ Cigarette Lighter)
(a) Install the rear cigarette lighter cover.

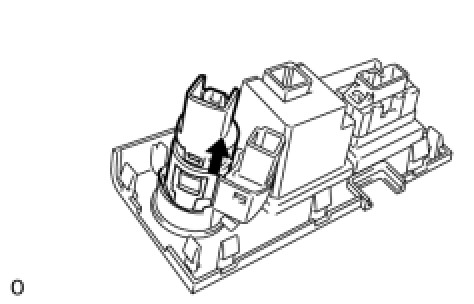

4. INSTALL POWER OUTLET SOCKET COVER





(a) Attach the 2 claws to install the socket cover.

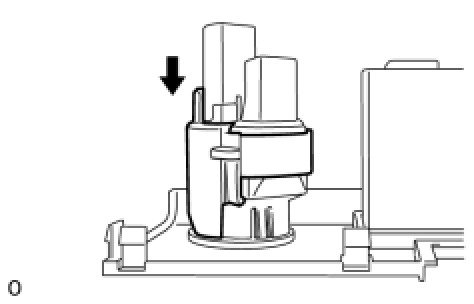

5. INSTALL POWER OUTLET SOCKET





(a) Attach the claw to install the socket.
6. INSTALL REAR SEAT CONSOLE ARMREST BASE Reassembly
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
9. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
