Heating and Air Conditioning








SERVICE SPECIFICATIONS: AIR CONDITIONING: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

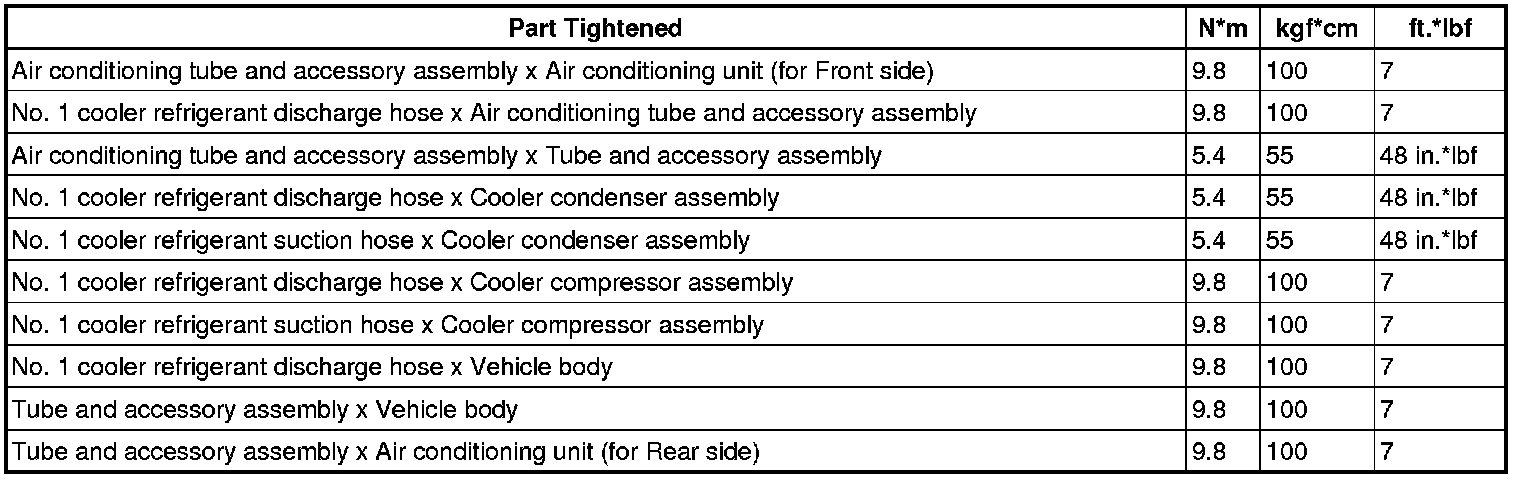

REFRIGERANT LINE

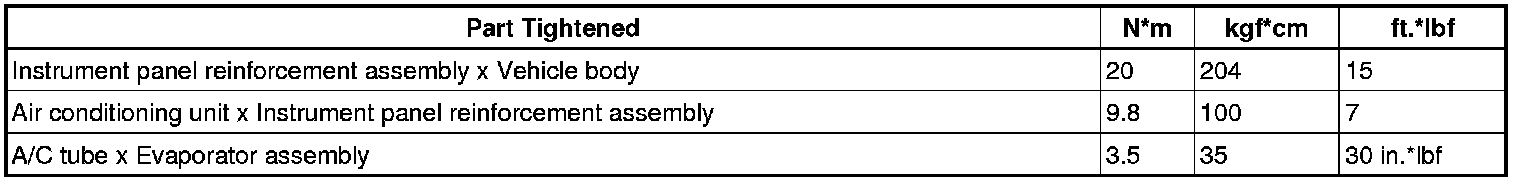

AIR CONDITIONING UNIT (for Front Side)





AIR CONDITIONING UNIT (for Rear Side)

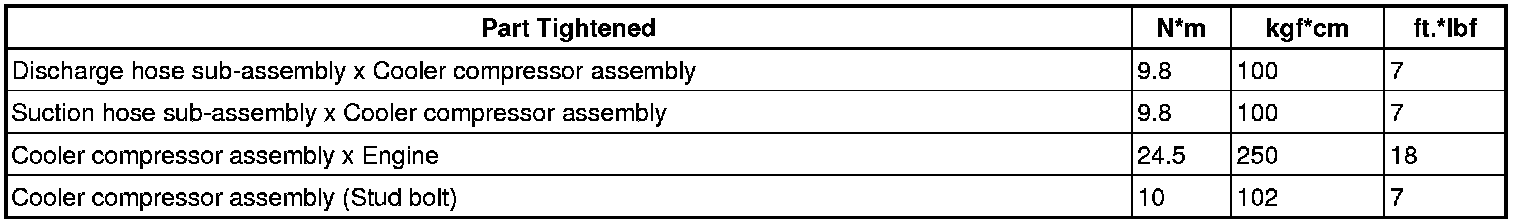

COMPRESSOR AND MAGNETIC CLUTCH

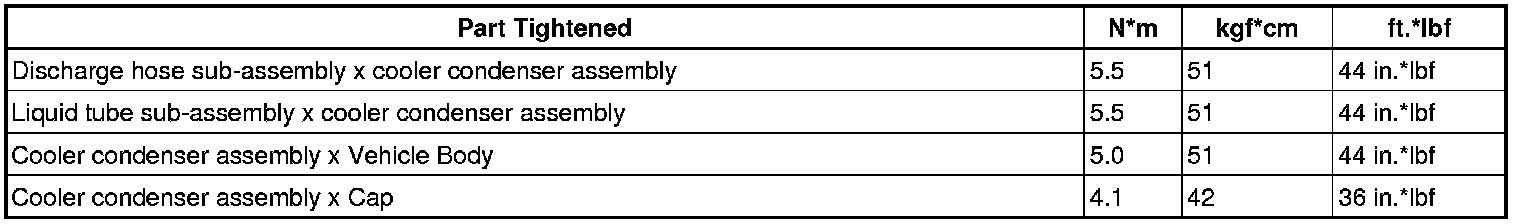

CONDENSER
