Piston, Engine

Piston
Diameter
Standard 93.955 to 93.965 mm (3.6990 to 3.6994 in.)
Minimum 93.830 mm (3.6941 in.)

Oil clearance
Standard 0.035 to 0.057 mm (0.0014 to 0.0022 in.)
Maximum 0.370 mm (0.0146 in.)

INSPECT PISTON PIN OIL CLEARANCE

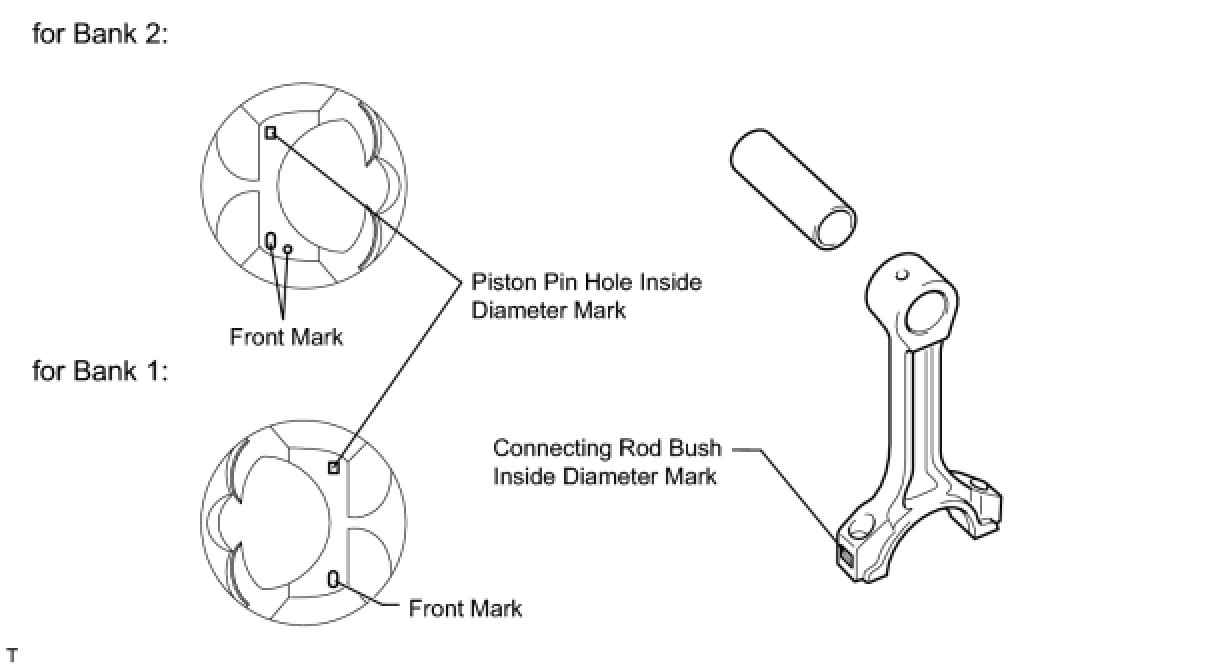

Check each mark on the piston, piston pin and connecting rod.

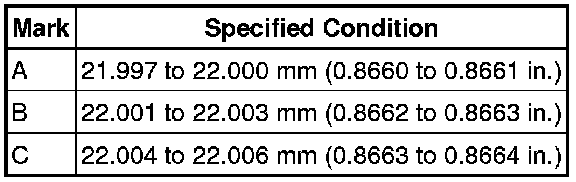

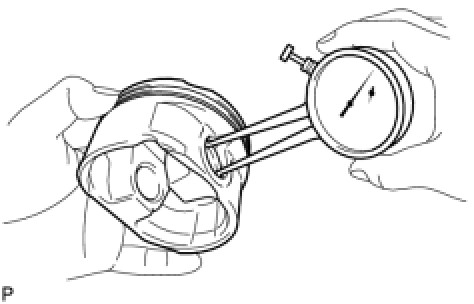

Standard piston pin hole inside diameter:

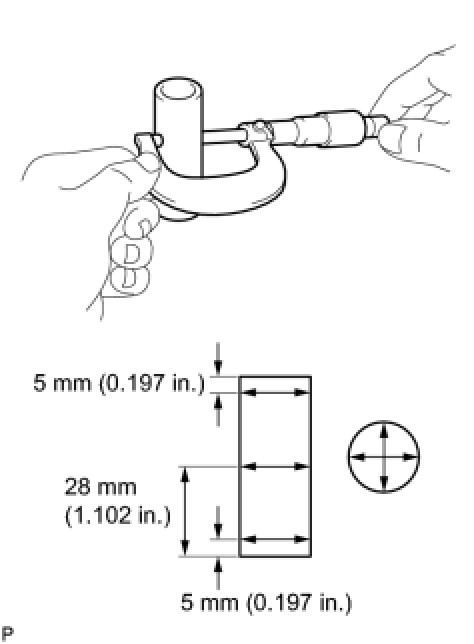

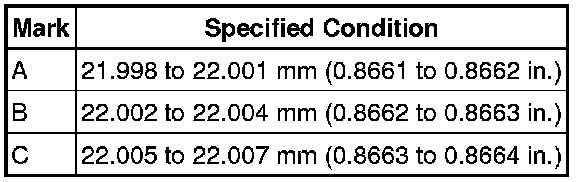

Standard piston pin diameter:





Standard oil clearance:
-0.002 to 0.004 mm (-0.0001 to 0.0002 in.)
Maximum oil clearance:
0.015 mm (0.0006 in.)
If the oil clearance is greater than the maximum, replace the piston and piston pin as a set.
