Fluid Pan, A/T

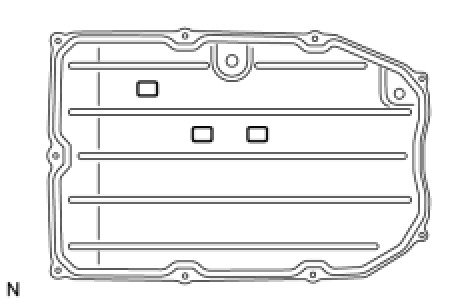

AA80E AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
Torque: 7.3 Nm (74 kgf-cm, 64 in-lbf)

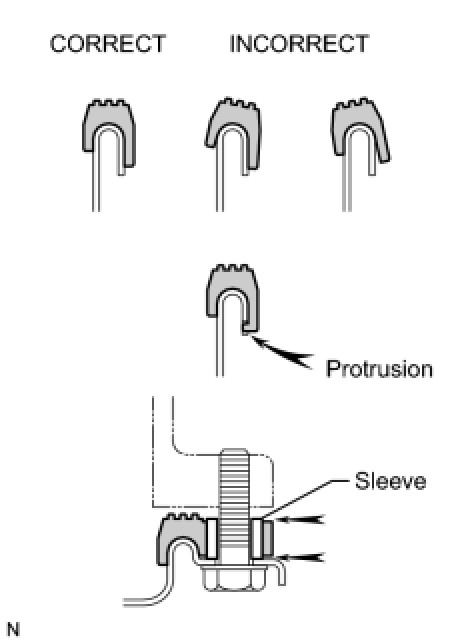

NOTICE:
