Removal

WINDSHIELD / WINDOWGLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH: REMOVAL

REMOVAL

1. REMOVE FRONT POWER WINDOW REGULATOR SWITCH ASSEMBLY

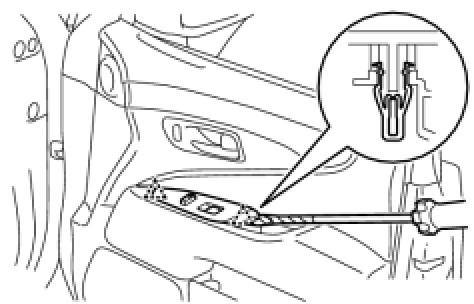

(a) Using a screwdriver, detach the 2 clamps.
HINT: Tape the screwdriver tip before use.

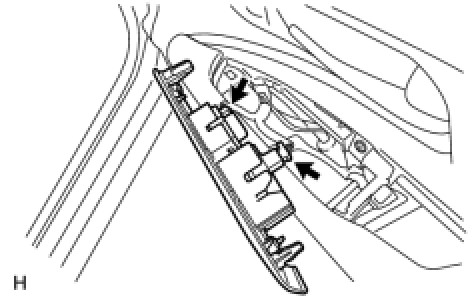

(b) Detach the armrest base panel assembly.





(c) Disconnect the 2 connectors.

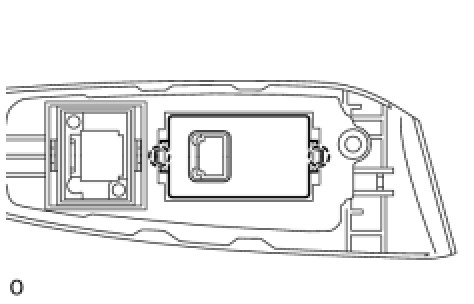

(d) Detach the 2 claws and remove the power window regulator switch assembly.
