Removal

PARKING BRAKE: ELECTRIC PARKING BRAKE SWITCH: REMOVAL

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE INSTRUMENT SIDE PANEL LH Removal
4. REMOVE NO. 1 INSTRUMENT CLUSTER MOULDING Removal





5. REMOVE SWITCH BASE HOLE COVER

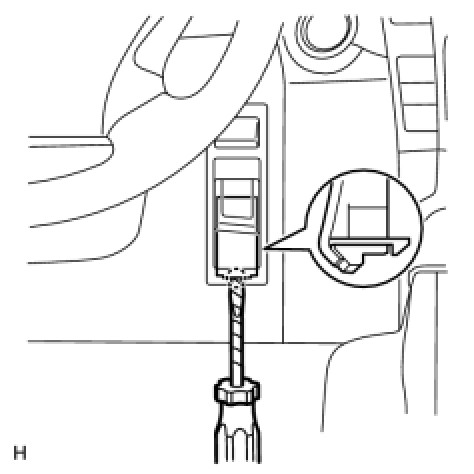

(a) Detach the claw and remove the cover from the No. 1 instrument panel safety pad.
HINT: Tape the screwdriver tip before use.

6. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Removal
7. REMOVE ELECTRIC PARKING BRAKE SWITCH ASSEMBLY
(a) Disconnect the connector.

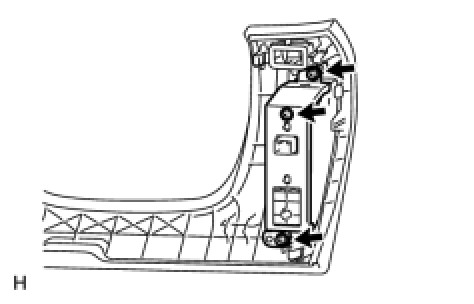

(b) Remove the 3 screws and bracket from the No. 1 instrument panel safety pad.
(c) Remove the electric parking brake switch from the No. 1 instrument panel safety pad.
