Problem Symptoms Table

SEAT BELT: POWER SHOULDER BELT ANCHORAGE SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE
HINT:
- Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
- Problem symptoms may occur if the electric power control system functions malfunction. Follow the HOW TO PROCEED WITH TROUBLESHOOTING procedures.

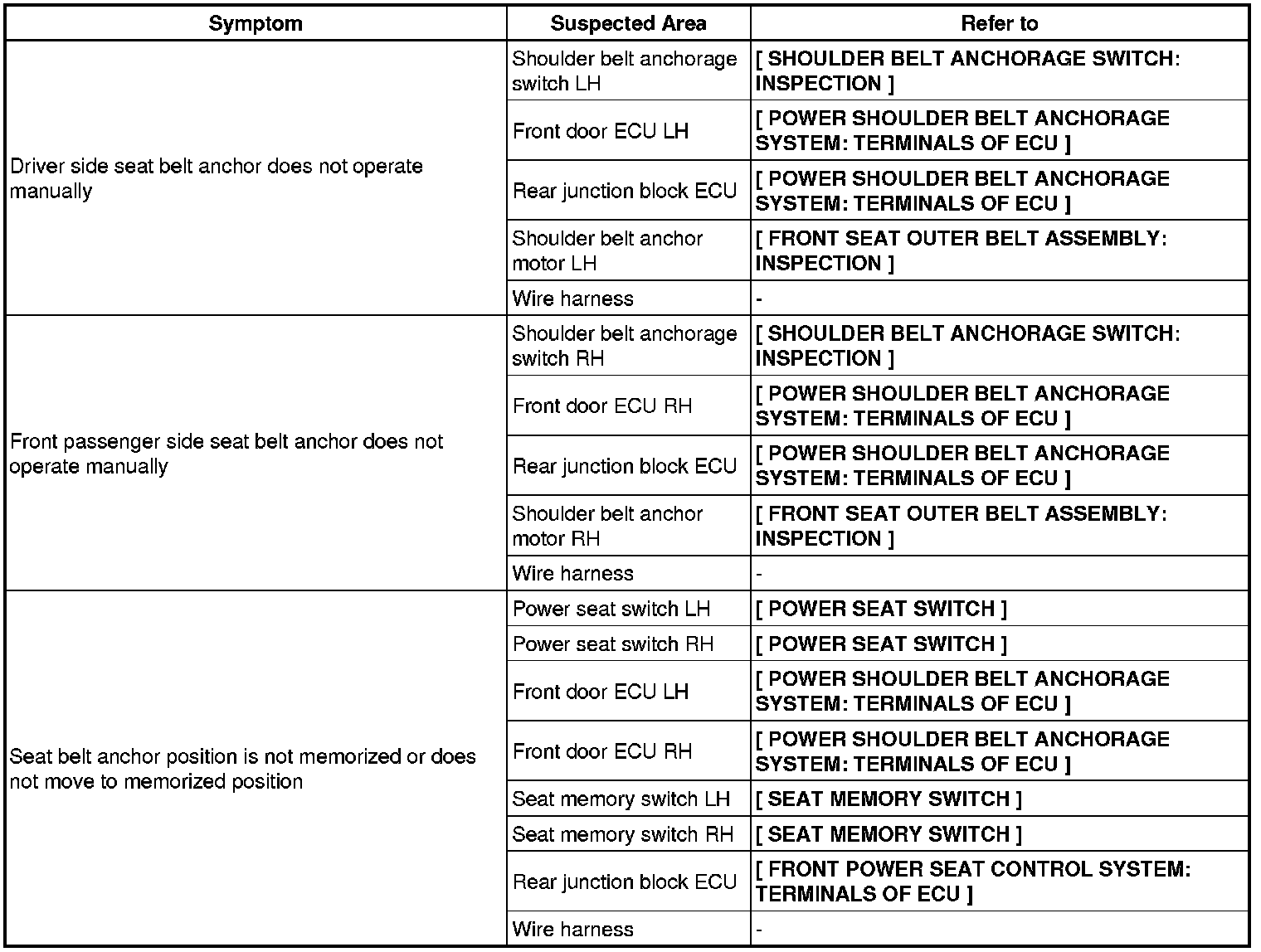

Power Shoulder Belt Anchorage System
