Seat Belt Warning System

SEAT BELT: SEAT BELT WARNING SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

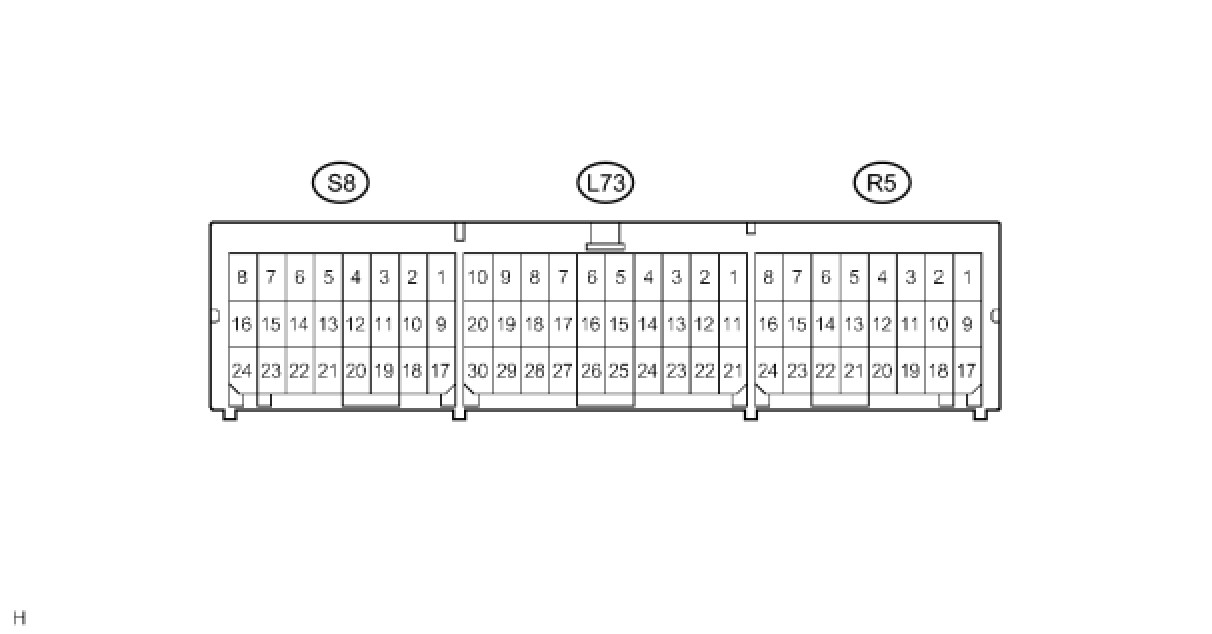

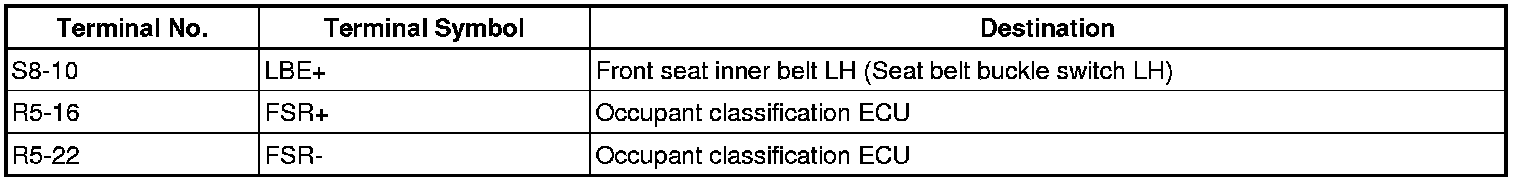

1. CHECK NO. 1 METER ECU





(a) Measure the resistance according to the value(s) in the table below.





- If the result is not as specified, the ECU may have a malfunction.

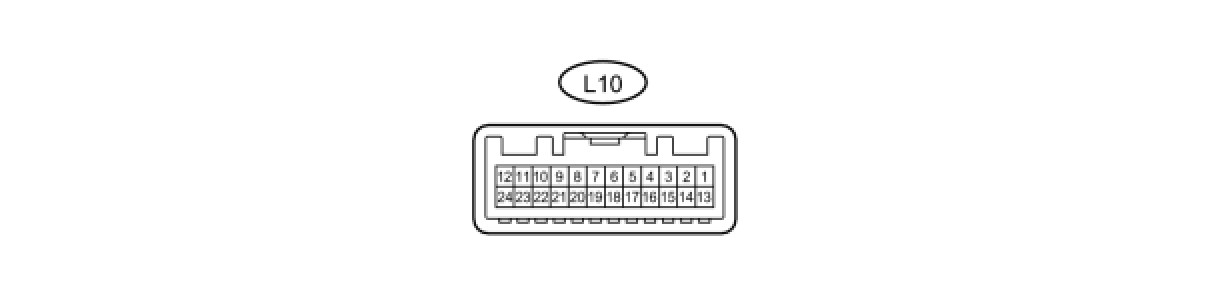

2. CHECK INTEGRATION CONTROL AND PANEL (W/O Multi-display)

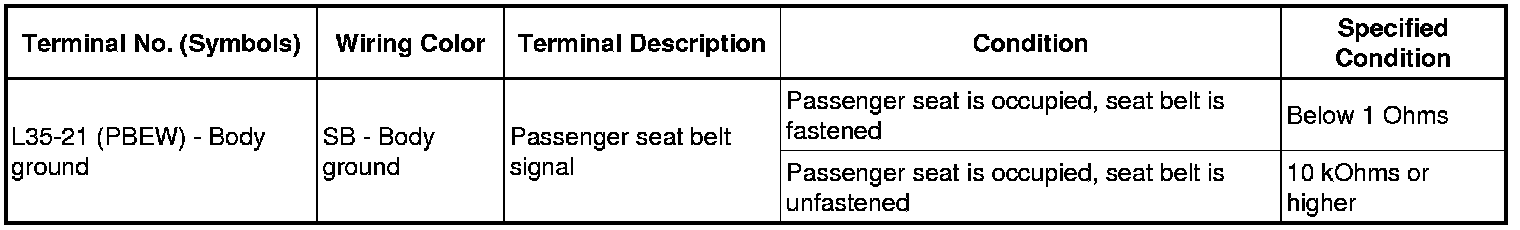

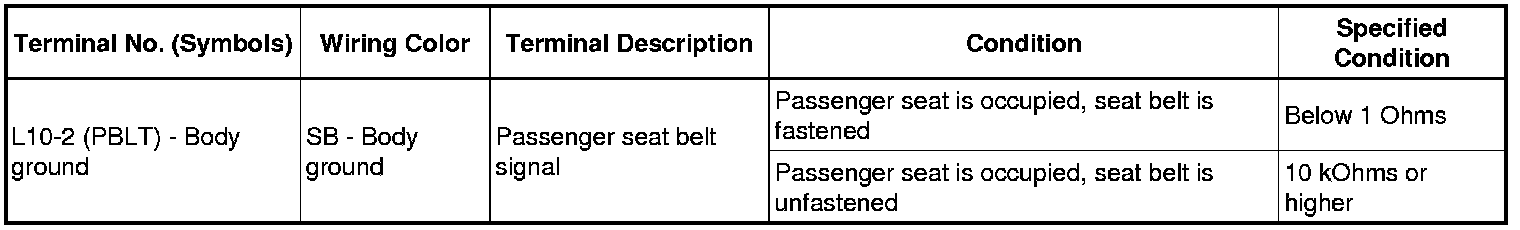

(a) Measure the resistance according to the value(s) in the table below.





- If the result is not as specified, the panel may have a malfunction.

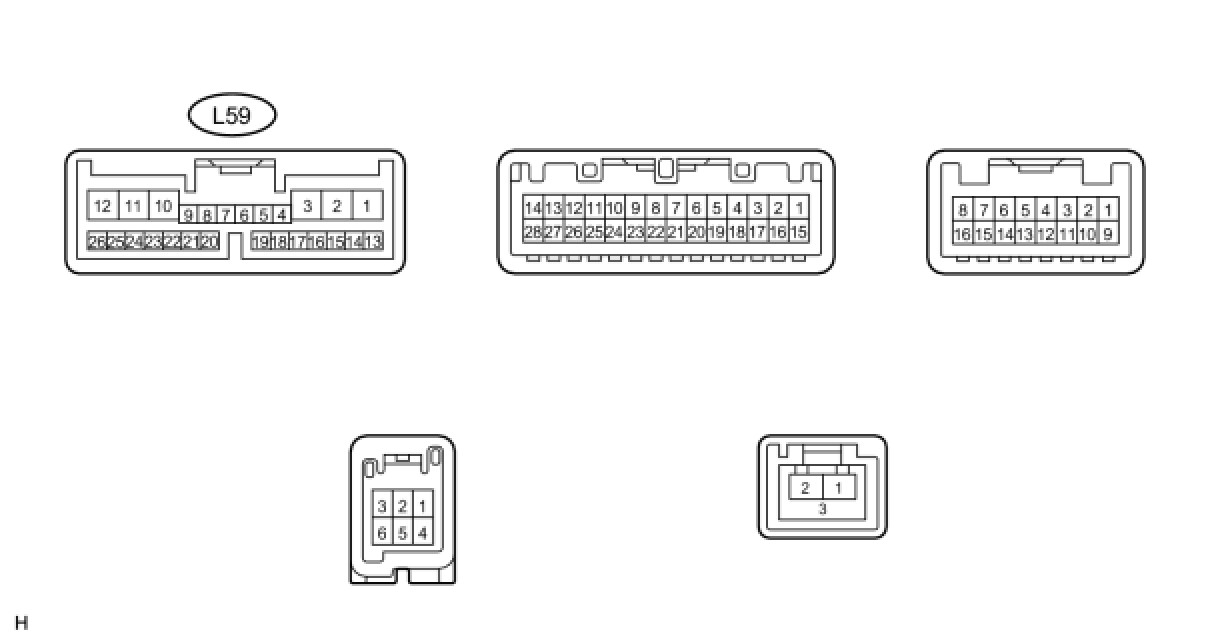

3. CHECK MULTI-DISPLAY (W/ Multi-display)





(a) Measure the resistance according to the value(s) in the table below.





- If the result is not as specified, the display may have a malfunction.

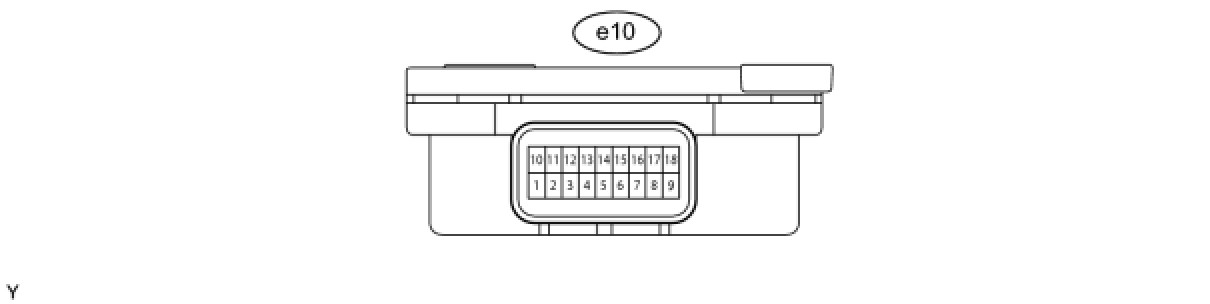

4. CENTER AIRBAG SENSOR









5. CHECK OCCUPANT CLASSIFICATION ECU
