Shoulder Belt Anchorage Switch

SEAT BELT: SHOULDER BELT ANCHORAGE SWITCH: INSPECTION

INSPECTION

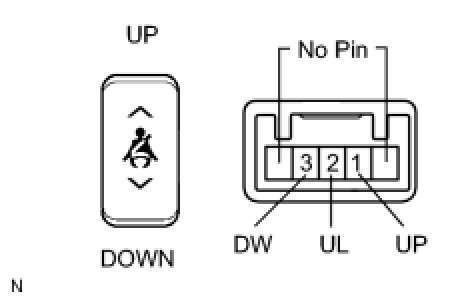

1. INSPECT HEIGHT ADJUSTABLE ANCHOR SWITCH (for LH Side)

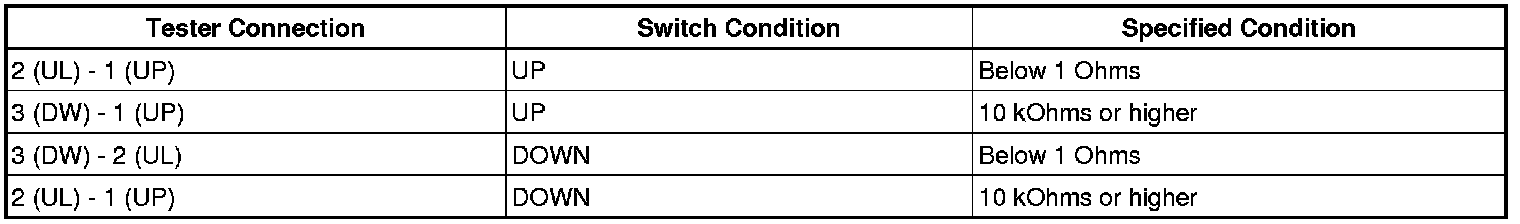

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the switch.

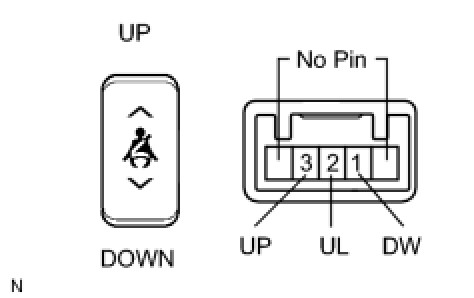

2. INSPECT HEIGHT ADJUSTABLE ANCHOR SWITCH (for RH Side)
(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the switch.
