Shoulder Belt Anchorage

SEAT BELT: SHOULDER BELT ANCHORAGE: INSPECTION

INSPECTION
HINT:
- Use the same procedures for the LH side and RH side.
- When removing the anchor motor from the height adjustable anchor, fix the height adjustable anchor's slider so that it does not move out of position. Fix the slider until the motor is reinstalled.

1. INSPECT HEIGHT ADJUSTABLE ANCHOR MOTOR





(a) Disconnect the belt anchor adjuster.

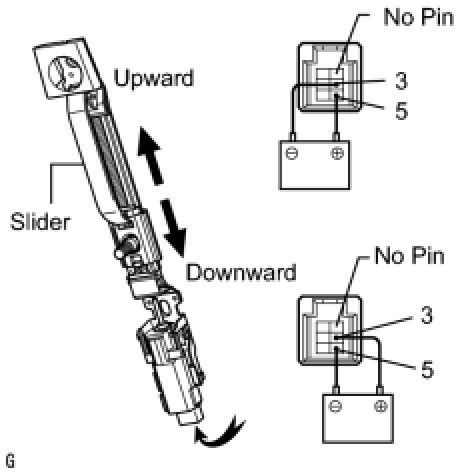

(b) Apply battery voltage and check operation of the belt anchor adjuster.

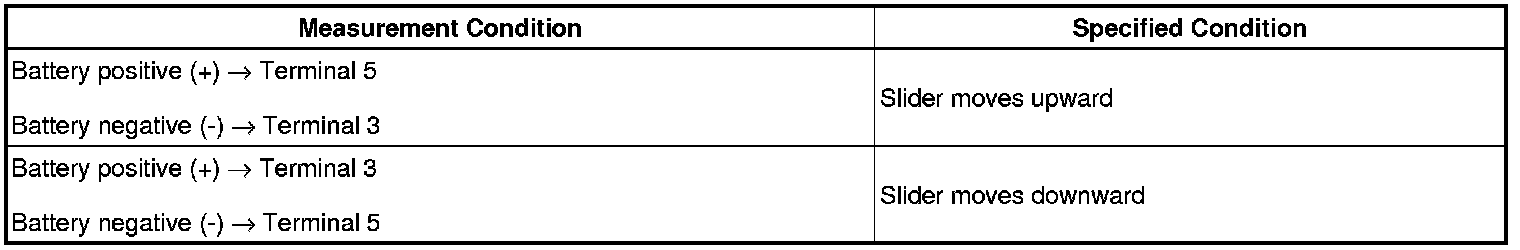

OK:





If the result is not as specified, replace the motor.
(c) Check the PTC operation inside the regulator motor.




NOTE:
Perform this procedure with the shoulder belt anchor adjuster installed in the vehicle.
(1) Disconnect the driver side shoulder belt anchor adjuster.

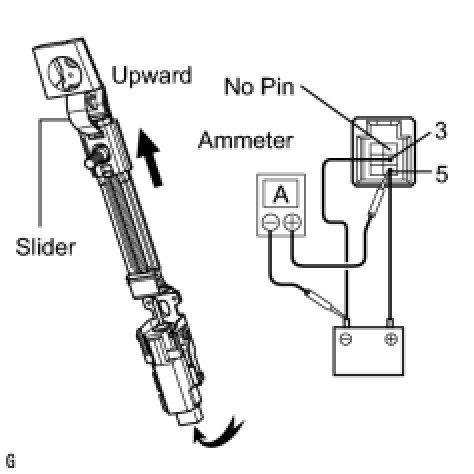

(2) Connect the ammeter's positive (+) lead to terminal 5 of the wire harness side connector and the negative (-) lead to the battery's negative terminal.
(3) Connect the battery's positive (+) lead to terminal 5 and negative (-) lead to terminal 3, and slide the anchor to the upward position.
(4) Continue to apply voltage, and check that the current changes to less than 1 A within 6 to 46 seconds.
(5) Disconnect the leads from the terminals.




(6) Approximately 60 seconds later, connect the battery's positive (+) lead to terminal 3 and the negative (-) lead to terminal 5, and check that the shoulder belt anchor adjuster slides to the downward position.
If the result is not as specified, replace the motor.
