Removal

SEAT BELT: SHOULDER BELT ANCHORAGE: REMOVAL

REMOVAL

1. REMOVE FRONT SEAT OUTER BELT ASSEMBLY
(a) Remove the front seat outer belt Removal.





2. REMOVE HEIGHT ADJUSTABLE ANCHOR MOTOR
(a) Remove the connector.

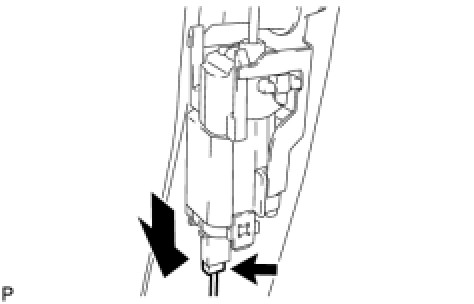

(b) Pull the motor downward to remove it from the adjuster as shown in the illustration.
3. REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY





(a) Remove the 2 bolts and adjuster.
