Installation

SEAT BELT: SHOULDER BELT ANCHORAGE: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.
- A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.





1. INSTALL FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

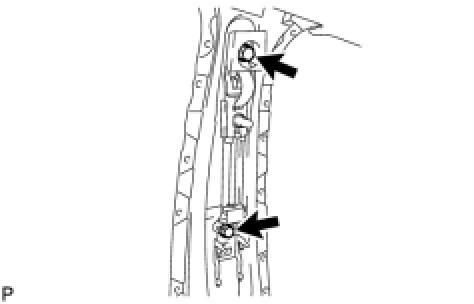

(a) Install the seat belt with the 2 bolts. First install the upper bolt, and then install the lower bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)





2. INSTALL HEIGHT ADJUSTABLE ANCHOR MOTOR

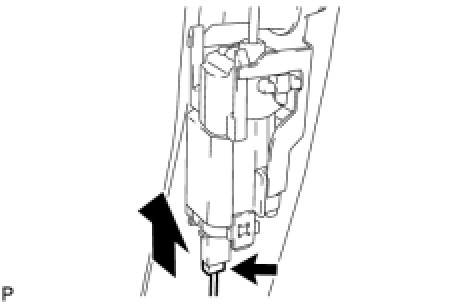

(a) Insert the motor into the adjuster as shown in the illustration.
(b) Install the connector.
3. INSTALL FRONT SEAT OUTER BELT ASSEMBLY
(a) Install the front seat outer belt Installation.
