Installation

SEAT BELT: REAR SEAT INNER BELT ASSEMBLY (for Ottoman): INSTALLATION

INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

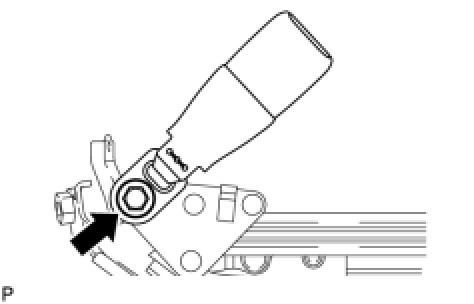

1. INSTALL REAR SEAT INNER BELT ASSEMBLY LH
(a) Install the seat belt with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)

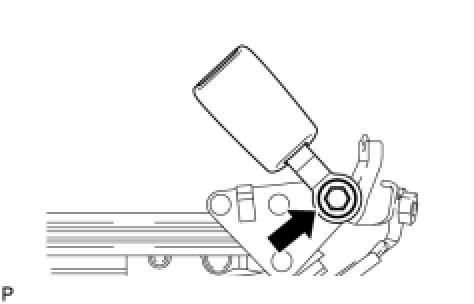

2. INSTALL REAR SEAT INNER BELT ASSEMBLY RH
(a) Install the seat belt with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
3. INSTALL REAR SEAT ASSEMBLY
(a) Install the rear seat Installation.
