Installation

SEAT BELT: CHILD RESTRAINT SEAT ANCHOR BRACKET: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.
- A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY





(a) for Ottoman:
(1) for Passenger Side:

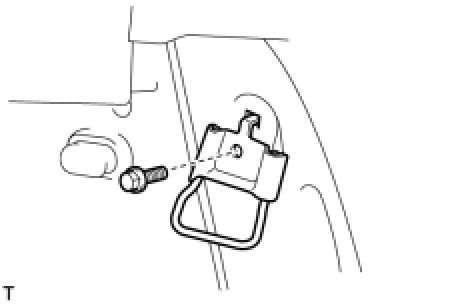

Install the anchor bracket with the 2 bolts.
Torque: 33 Nm (337 kgf-cm, 24 ft-lbf)




(2) for Driver Side:
Install the anchor bracket with the bolt.
Torque: 33 Nm (337 kgf-cm, 24 ft-lbf)





(b) Except Ottoman:

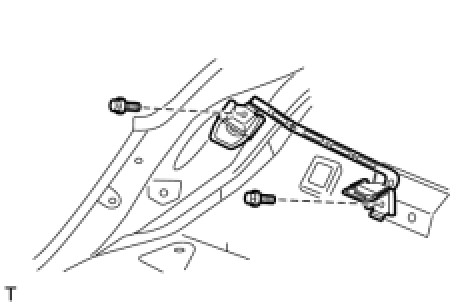

Align the claw with the positioning hole and install the 2 anchor brackets with the 2 bolts.
Torque: 33 Nm (337 kgf-cm, 24 ft-lbf)
2. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY INNER





(a) Except Ottoman:
(1) Align the hole with the positioning pin and install the 2 anchor brackets with the 2 bolts.
Torque: 33 Nm (337 kgf-cm, 24 ft-lbf)





(b) for Ottoman:

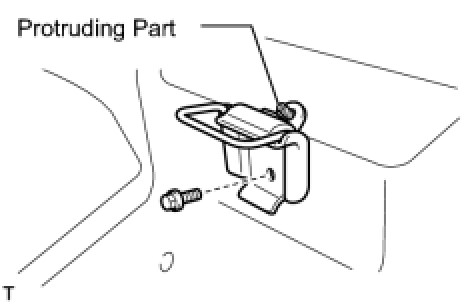

Align the hole with the positioning pin and install the anchor bracket with the bolt.
Torque: 33 Nm (337 kgf-cm, 24 ft-lbf)
3. INSTALL REAR SEAT ASSEMBLY
(a) for Power Seat:
Install the rear seat Installation.
(b) for Ottoman:
Install the rear seat Installation.
(c) for Fixed Seat Type:
Install the rear seat Installation.
