Installation

SUPPLEMENTAL RESTRAINT SYSTEM: CENTER AIRBAG SENSOR ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL CENTER AIRBAG SENSOR ASSEMBLY





(a) Check that the engine switch is off.
(b) Check that the cable is disconnected from the battery negative (-) terminal.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

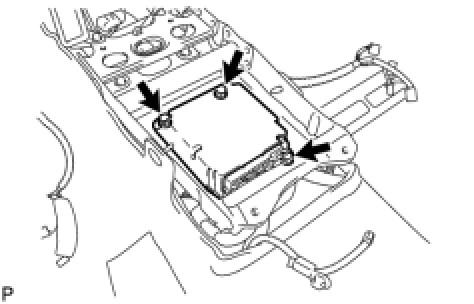

(c) Install the airbag sensor with the 3 bolts.
Torque: 18 Nm (184 kgf-cm, 13 ft-lbf)
NOTICE:
- If the center airbag sensor has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
- When installing the center airbag sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.

(d) Check that there is no looseness in the installation parts of the center airbag sensor.
(e) Connect the holder (with connectors).
(f) Check that the waterproof sheet is properly set.
2. INSTALL CONSOLE BOX ASSEMBLY Installation
3. INSTALL LOWER CONSOLE COVER Installation
4. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY Installation
5. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation
6. INSTALL REAR UPPER CONSOLE PANEL Installation
7. INSTALL NO. 3 BOX PANEL Installation
8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
9. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
10. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
12. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

13. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Pinout Values and Diagnostic Parameters.
