Curtain Shield Airbag Assembly

SUPPLEMENTAL RESTRAINT SYSTEM: CURTAIN SHIELD AIRBAG ASSEMBLY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. CHECK CURTAIN SHIELD AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)





(a) Perform a diagnostic system check Pinout Values and Diagnostic Parameters.

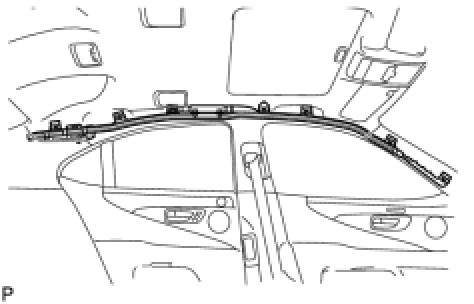

(b) With the curtain shield airbag installed on the vehicle, perform a visual check. If any of the defects mentioned below are present, replace the curtain shield airbag with a new one:
Cuts, minute cracks or marked discoloration on the curtain shield airbag.
2. CHECK CURTAIN SHIELD AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)





(a) Perform a diagnostic system check Pinout Values and Diagnostic Parameters.

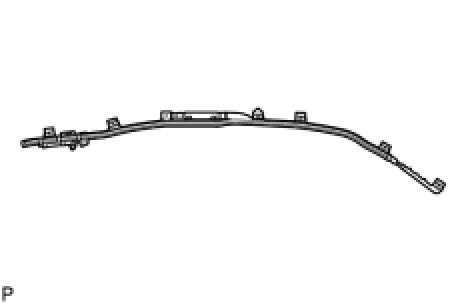

(b) With the curtain shield airbag removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the curtain shield airbag with a new one:
- Cuts, minute cracks or marked discoloration on the curtain shield airbag.
- Cracks or other damage to the connectors.
NOTE:
For removal and installation procedures of the curtain shield airbag, be sure to follow the correct procedure.
