Removal

SUPPLEMENTAL RESTRAINT SYSTEM: FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY: REMOVAL

REMOVAL

1. DISCONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal
3. REMOVE INSTRUMENT SIDE PANEL RH Removal
4. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal
5. REMOVE LOWER INSTRUMENT PANEL

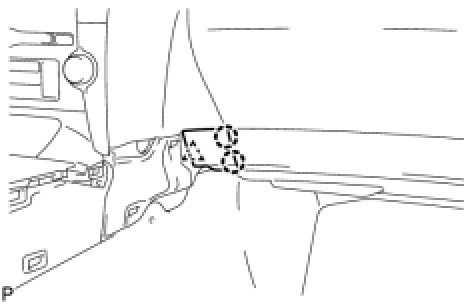

(a) Using a screwdriver, detach the 1 clips and the 2 claws and remove the panel.
6. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY

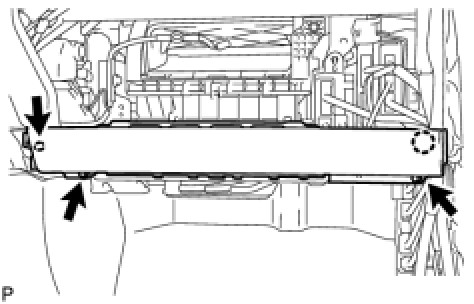

(a) Remove the 3 bolts detach the claw and front passenger side knee airbag.
(b) Disconnect the connector.
NOTE:
When handling the airbag connector, take care not to damage the airbag wire harness.
