Removal

SUPPLEMENTAL RESTRAINT SYSTEM: CURTAIN SHIELD AIRBAG ASSEMBLY: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE ROOF HEADLINING ASSEMBLY
HINT: Refer to the procedures up to "REMOVE ROOF HEADLINING ASSEMBLY" Removal.

3. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH (for Standard Body)
(a) Remove the clip.

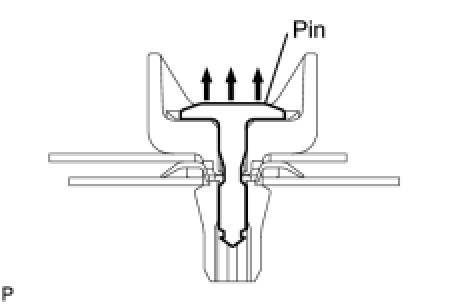

(1) Using a clip remover, remove the pin.

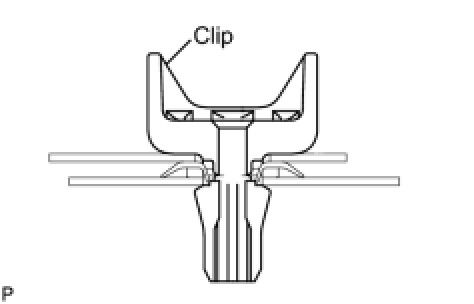

(2) Remove the clip shown in the illustration.





(b) Remove the spacer.
(1) Remove the spacer shown in the illustration.
(c) Disconnect the connector.
NOTE:
When handling the airbag connector, take care not to damage the airbag wire harness.

(d) Remove the 8 bolts and curtain shield airbag.





4. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH (for Long Body)
(a) Remove the clip.




(1) Using a clip remover, remove the pin.




(2) Remove the clip shown in the illustration.





(b) Remove the spacer shown in the illustration.
(c) Disconnect the connector.
NOTE:
When handling the airbag connector, take care not to damage the airbag wire harness.

(d) Remove the 8 bolts and curtain shield airbag.
