Installation

SUPPLEMENTAL RESTRAINT SYSTEM: CURTAIN SHIELD AIRBAG ASSEMBLY: INSTALLATION

INSTALLATION

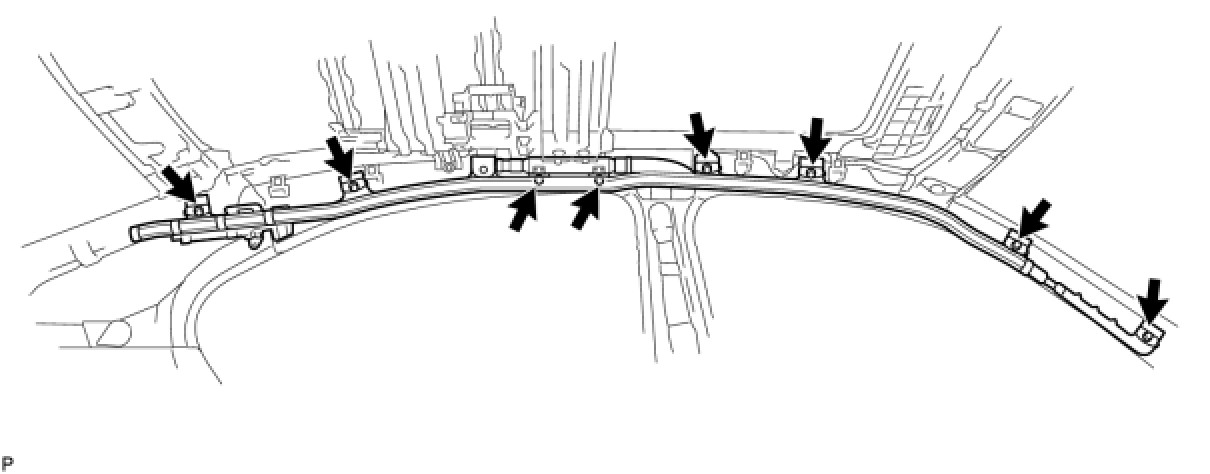

1. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY LH (for Standard Body)
(a) Install the curtain shield airbag with the 2 clips and 8 new bolts.
Torque: 11 Nm (110 kgf-cm, 8 ft-lbf)




NOTE:
Do not twist the curtain shield airbag when installing it.

(b) Connect the connector.
NOTE:
When handling the airbag connector, take care not to damage the airbag wire harness.

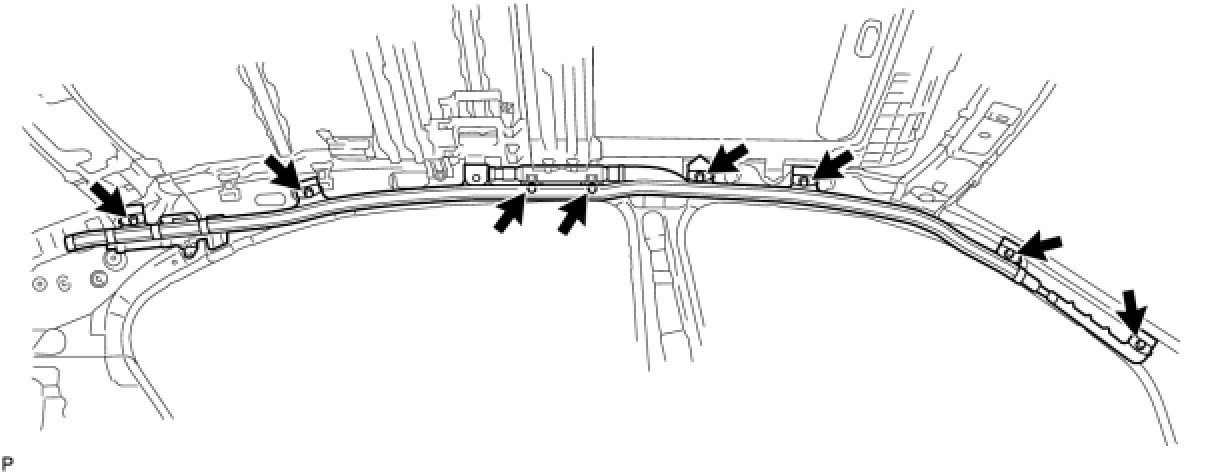

2. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY LH (for Long Body)
(a) Install the curtain shield airbag with the 2 clips and 8 new bolts.
Torque: 11 Nm (110 kgf-cm, 8 ft-lbf)




NOTE:
Do not twist the curtain shield airbag when installing it.

(b) Connect the connector.
NOTE:
When handling the airbag connector, take care not to damage the airbag wire harness.

3. INSTALL ROOF HEADLINING ASSEMBLY
(a) Refer to the procedures from "INSTALL ROOF HEADLINING ASSEMBLY" Installation.
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

6. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Pinout Values and Diagnostic Parameters.
