Installation

AIR CONDITIONING: AIR CONDITIONING AMPLIFIER: INSTALLATION

INSTALLATION

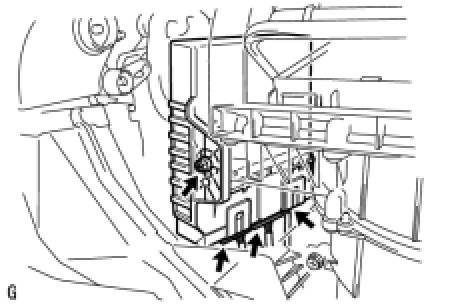

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY
(a) Install the amplifier with the screw.
(b) Connect the 3 connectors.
2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation
3. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY Installation
4. INSTALL INSTRUMENT PANEL LOWER Installation
5. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
6. INSTALL NO. 2 INSTRUMENT CLUSTER MOULDING Installation
7. INSTALL INSTRUMENT SIDE PANEL RH Installation
8. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
10. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
11. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

12. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
