Variable Induction Control Actuator: Testing and Inspection

1UR-FSE INTAKE: INTAKE AIR CONTROL VALVE ACTUATOR: INSPECTION

INSPECTION





1. INSPECT INTAKE AIR CONTROL VALVE ACTUATOR

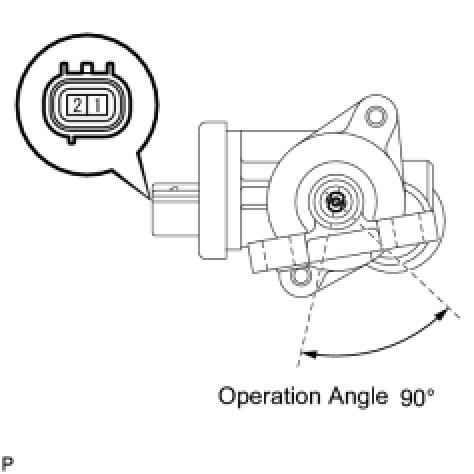

(a) When battery voltage is applied between terminals 1 and 2 of the connector, check the operation of the actuator shaft.

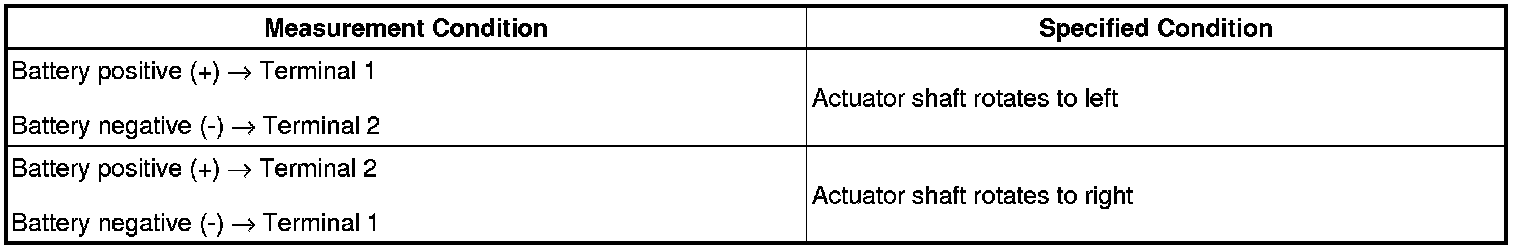

OK:





NOTE:
Apply battery voltage for 10 seconds or less each time the inspection is performed.
