Accelerator Pedal: Testing and Inspection

1UR-FSE ENGINE CONTROL SYSTEM: ACCELERATOR PEDAL: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT ACCELERATOR PEDAL
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the tester ON.
(d) Enter the following menus: Powertrain / Engine / Data List / ETCS / Accelerator Position No. 1 and accelerator Position No. 2.
(e) Read the value displayed on the tester.

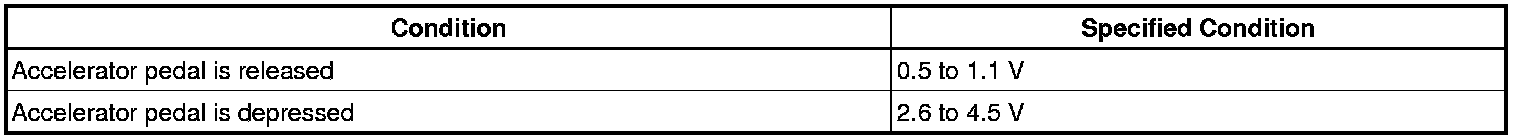

ACCEL POS #1 (Accelerator Position No. 1) standard voltage:






ACCEL POS #2 (Accelerator Position No. 2) standard voltage:





If the result is not as specified, check the accelerator pedal, wire harness or ECM.
