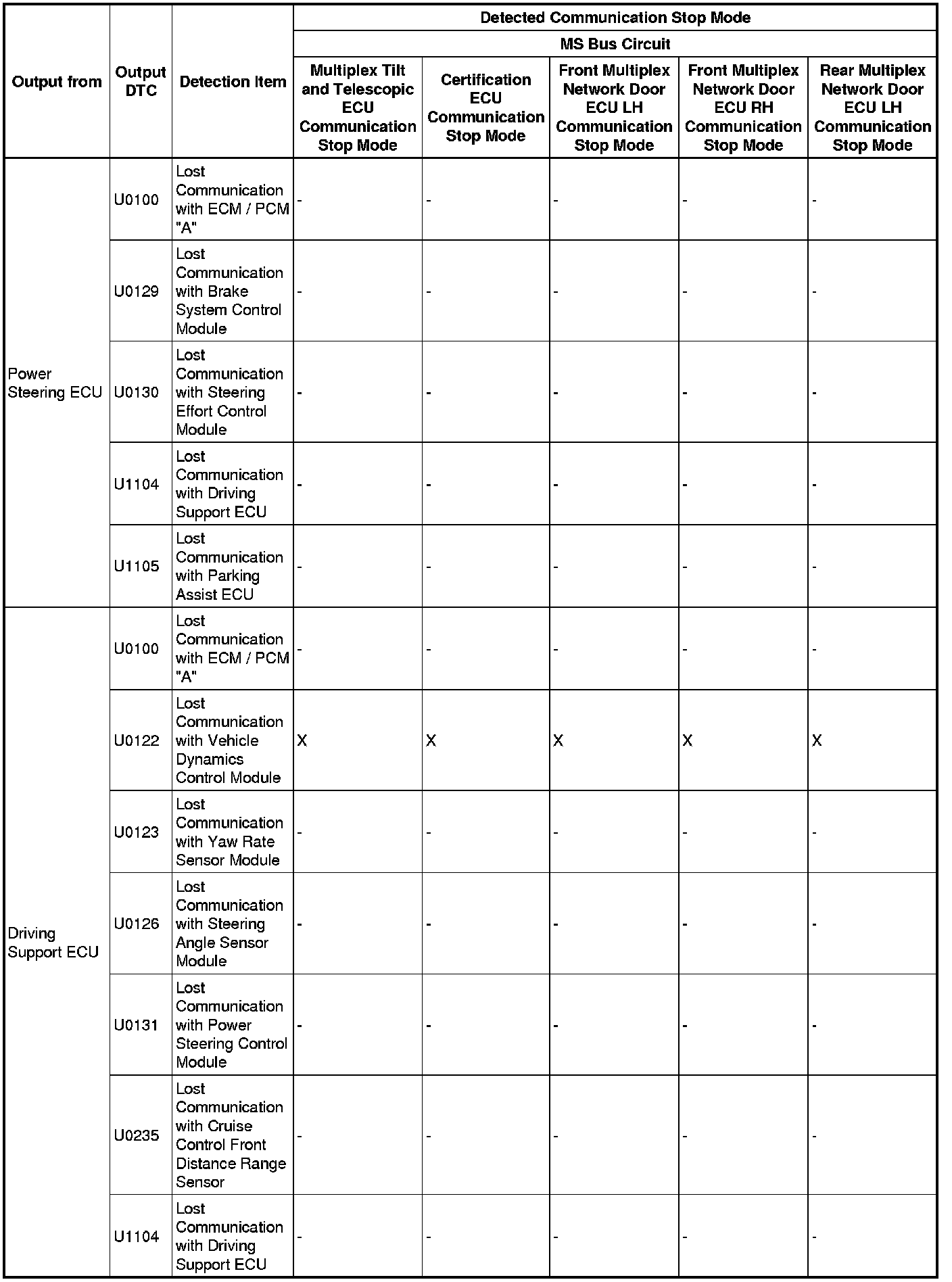

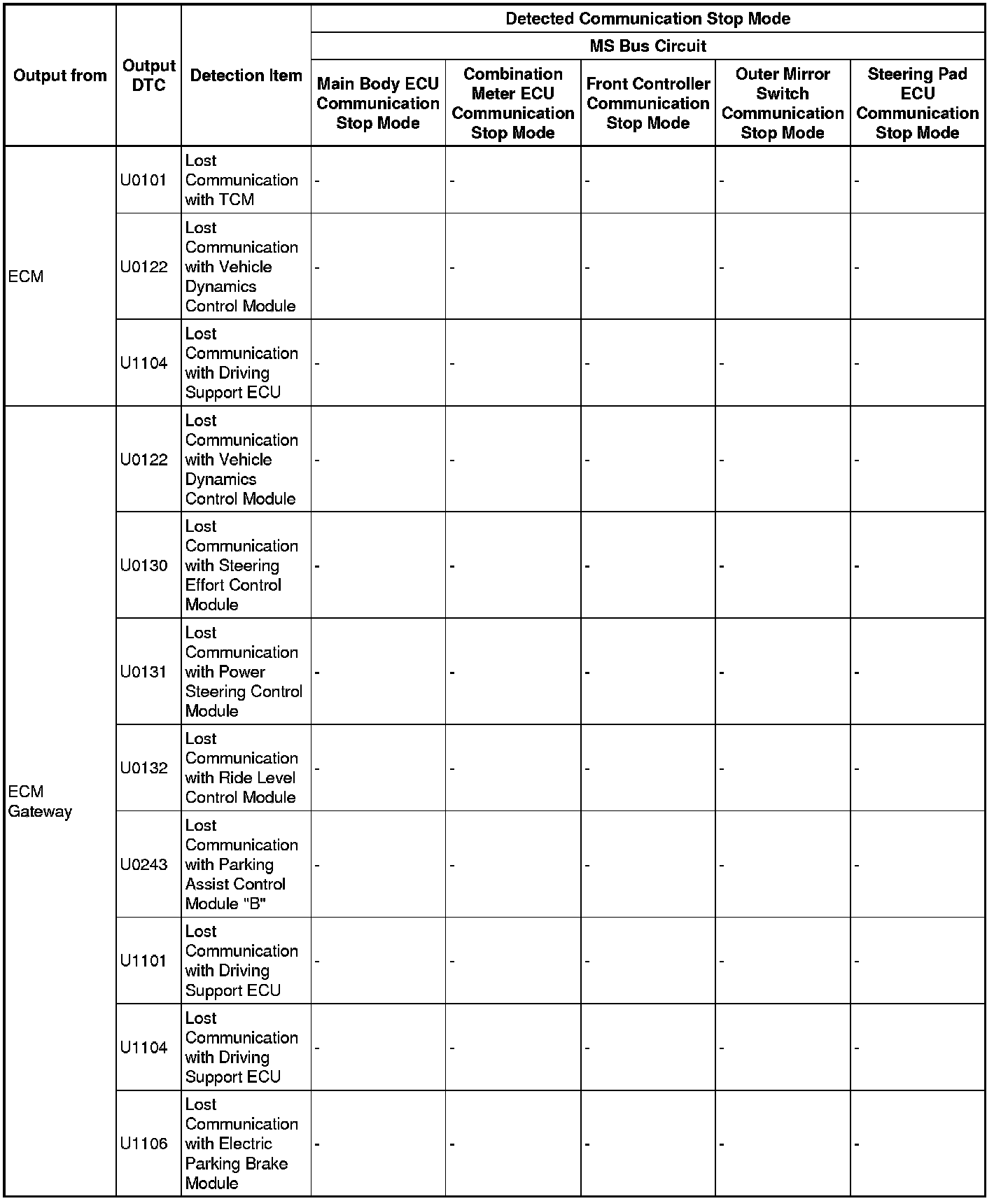

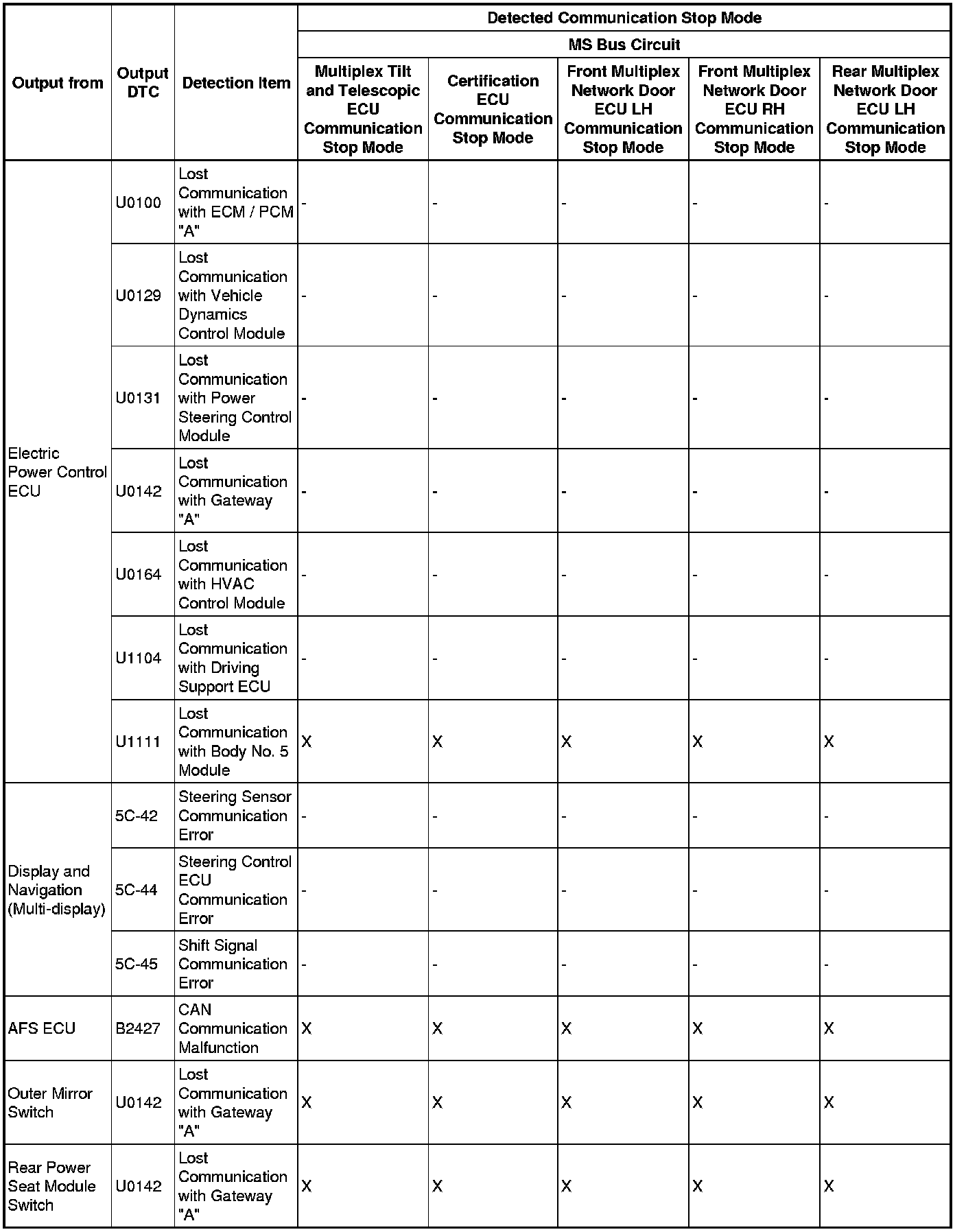

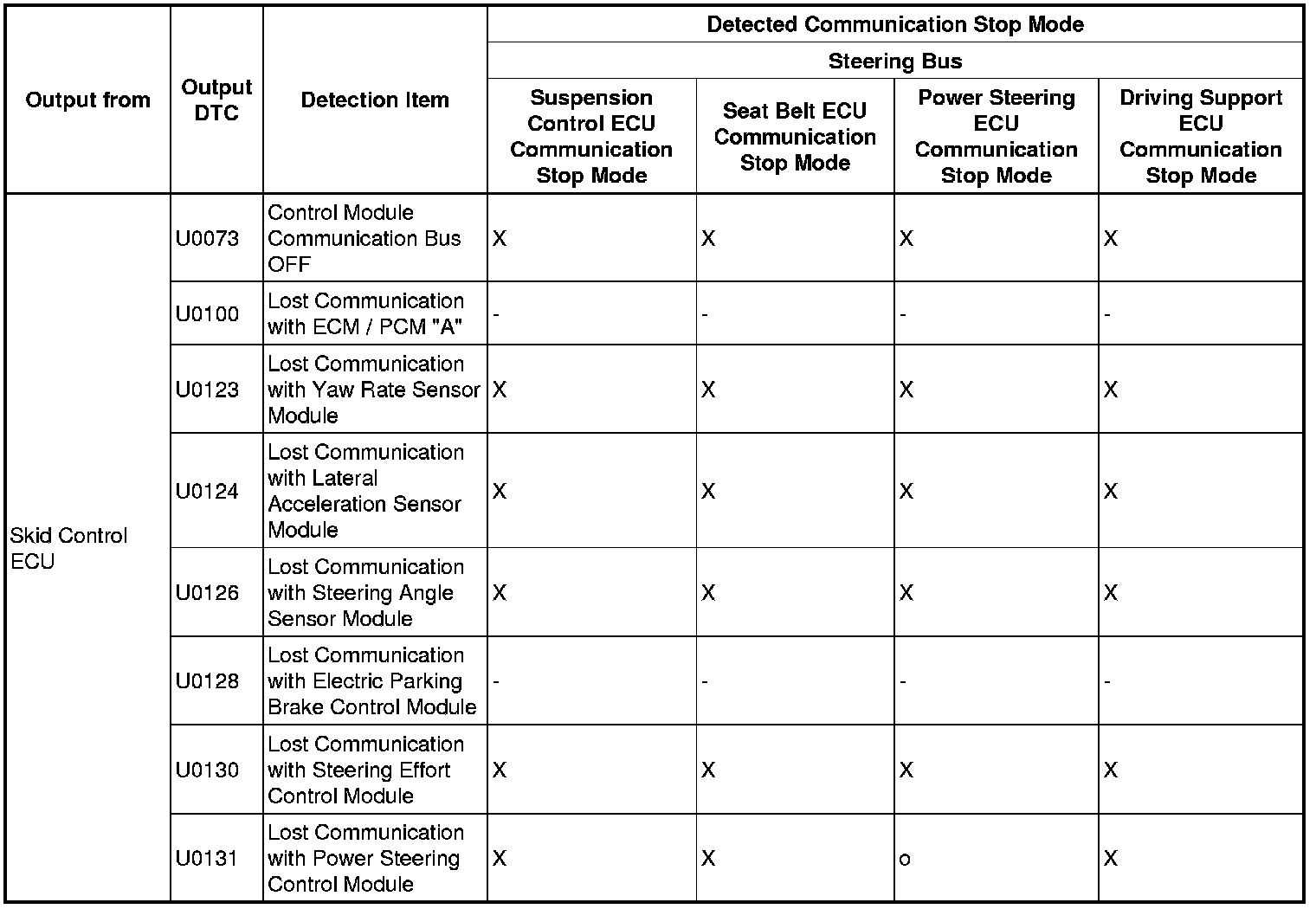

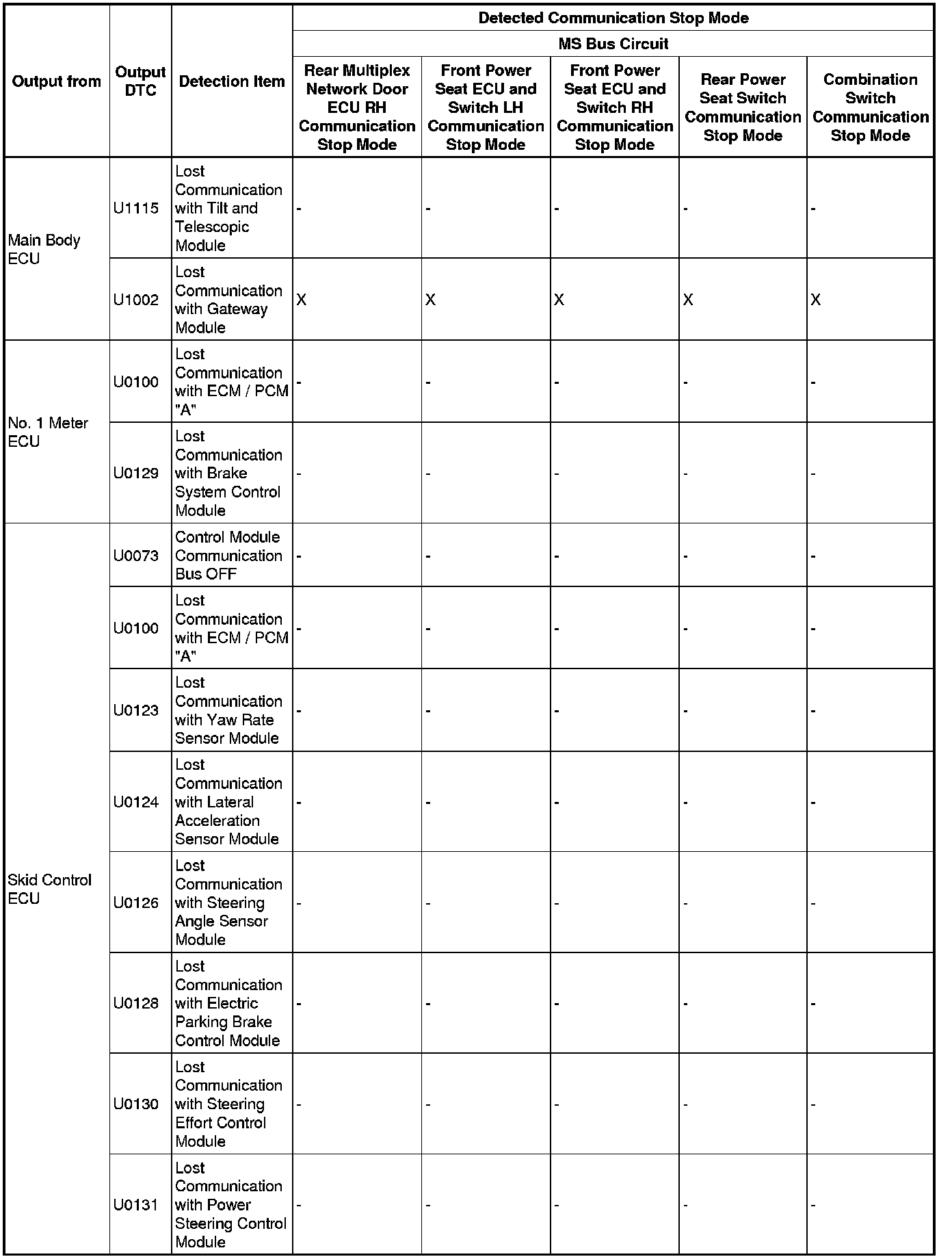

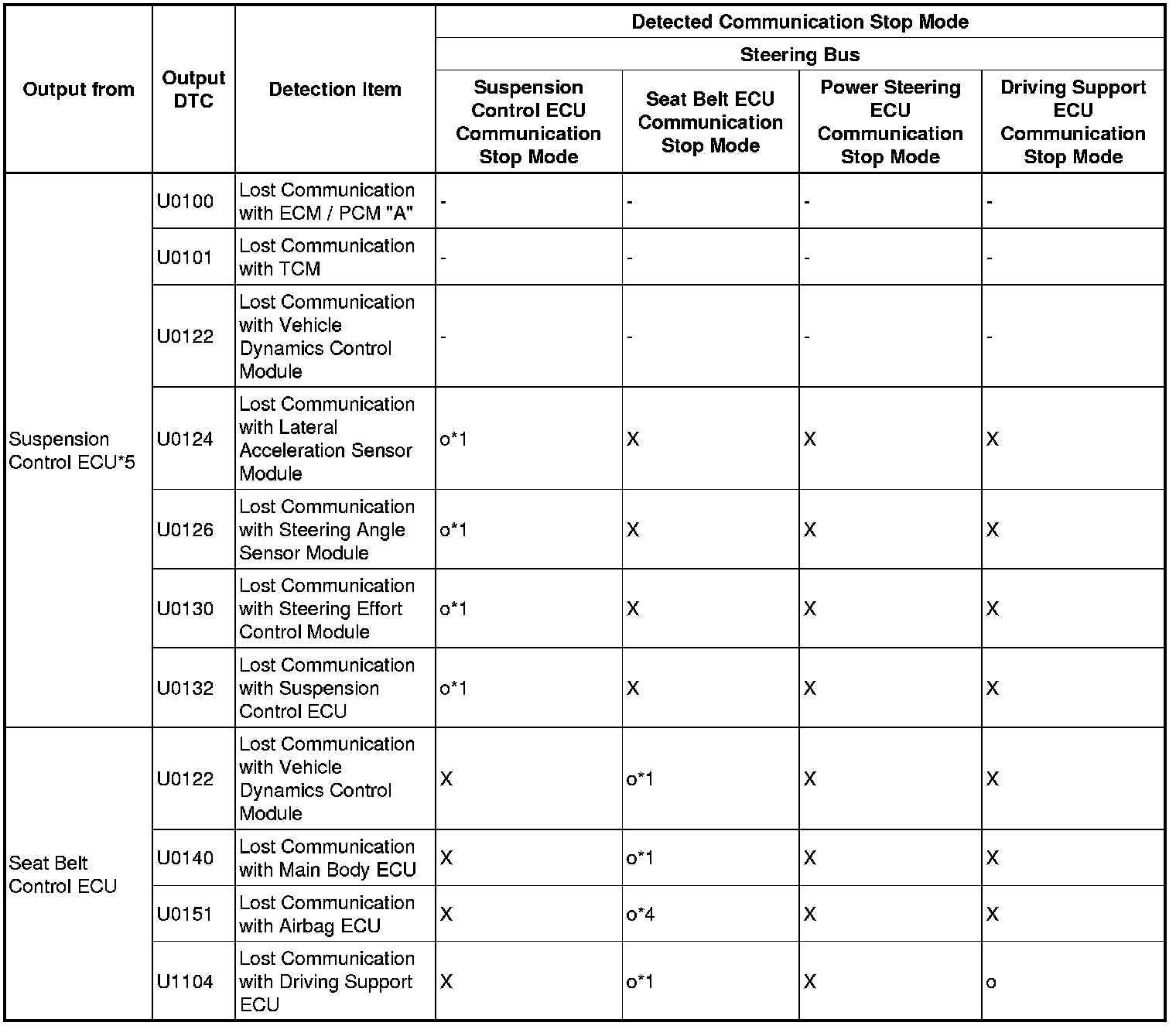

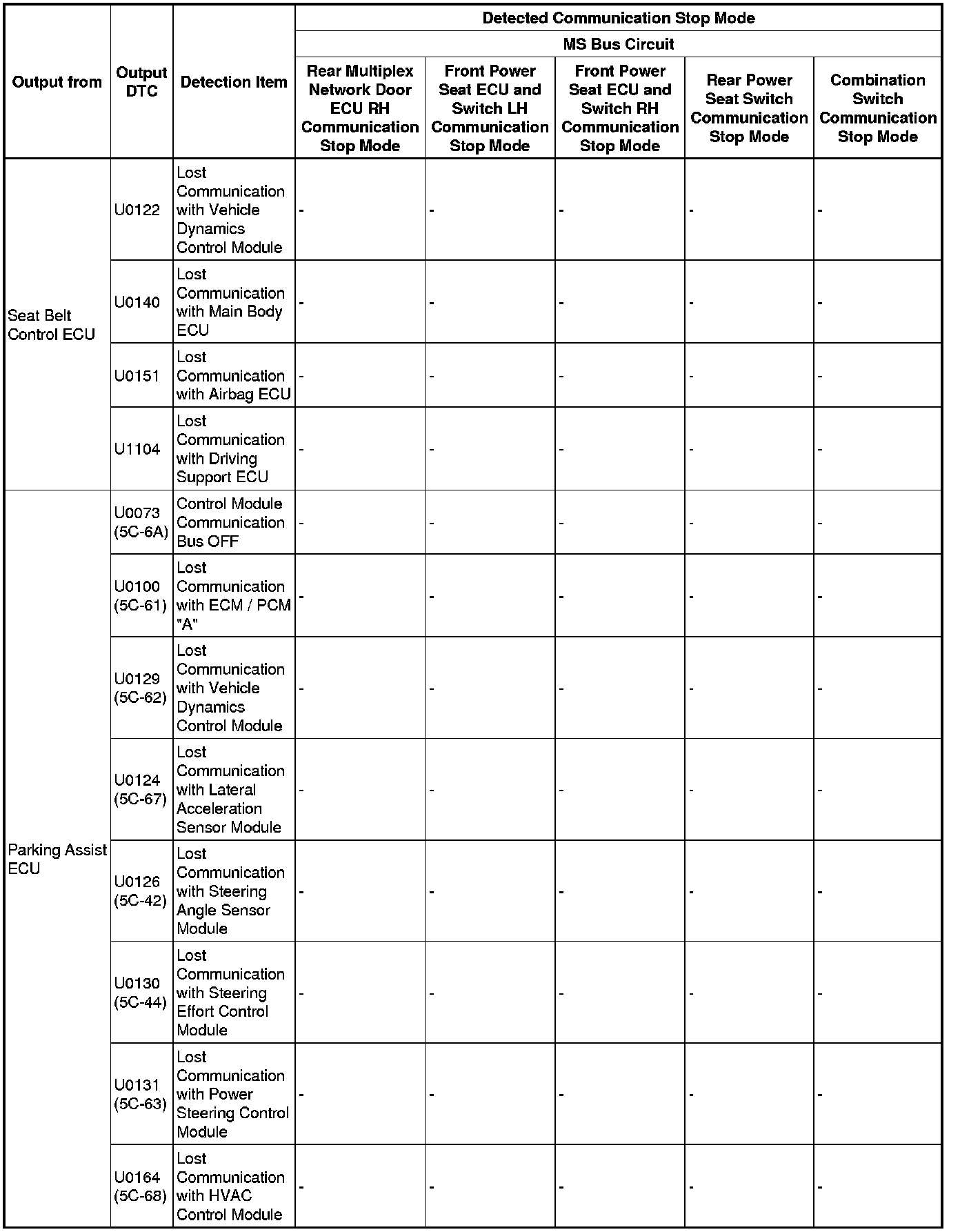

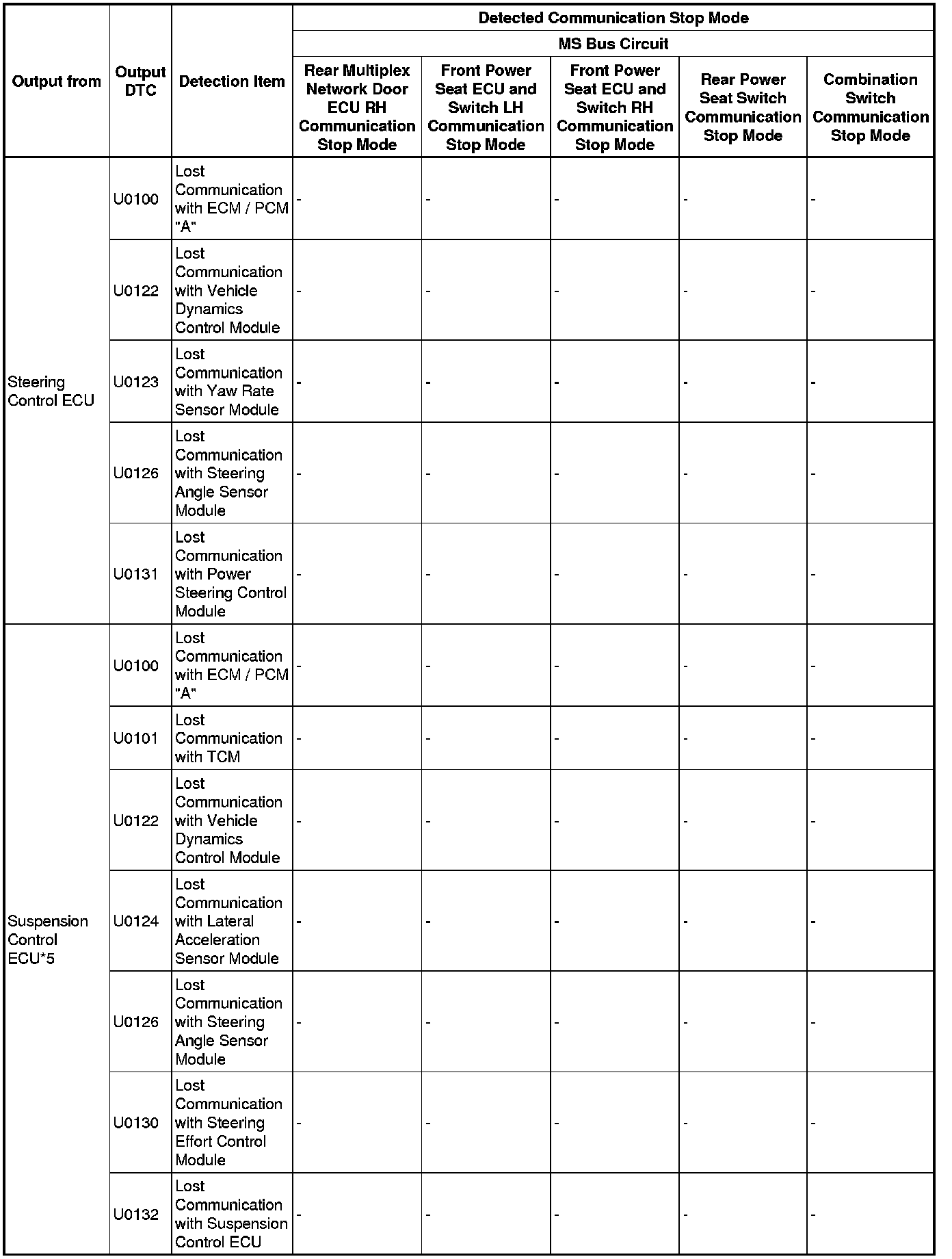

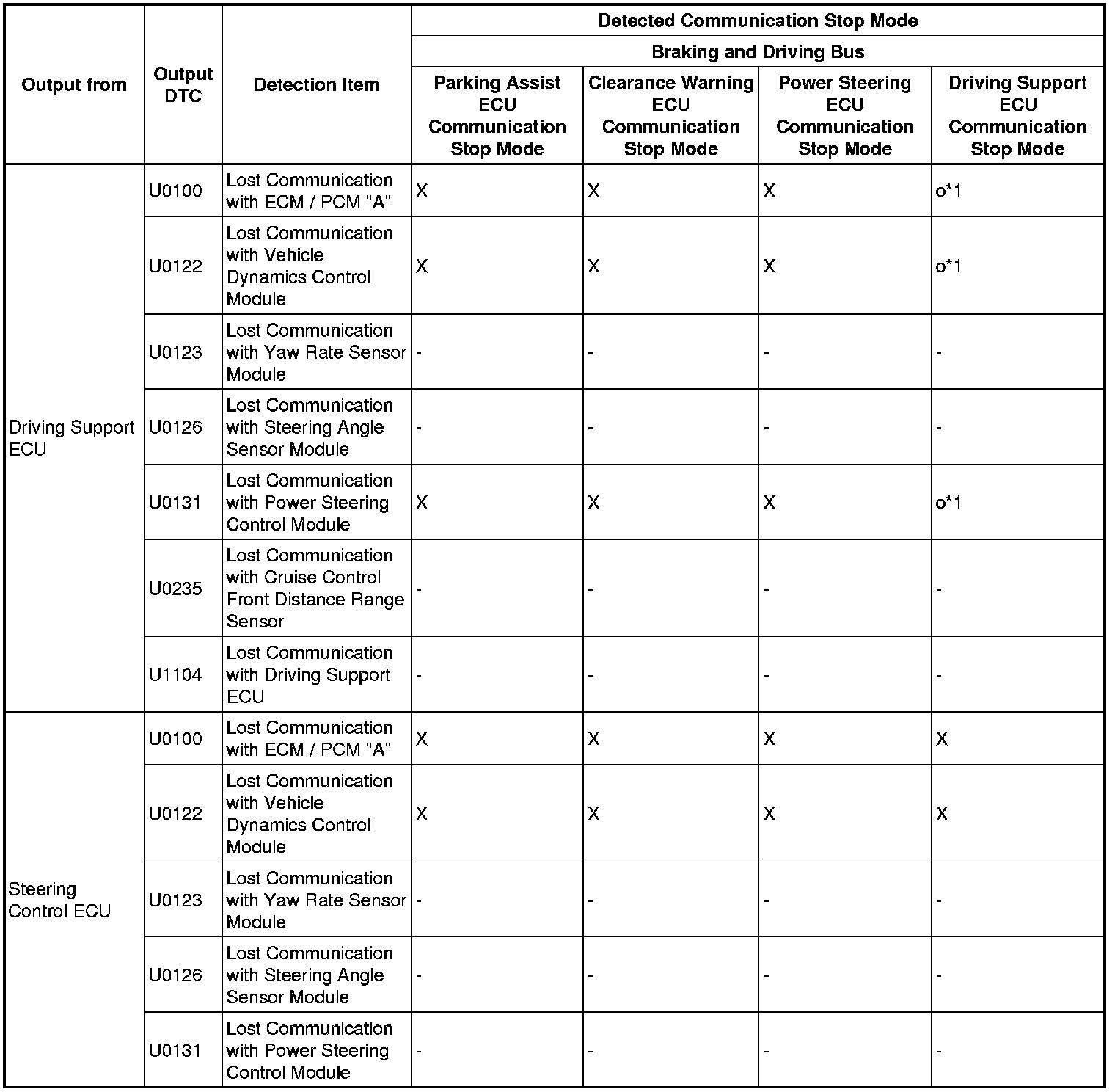

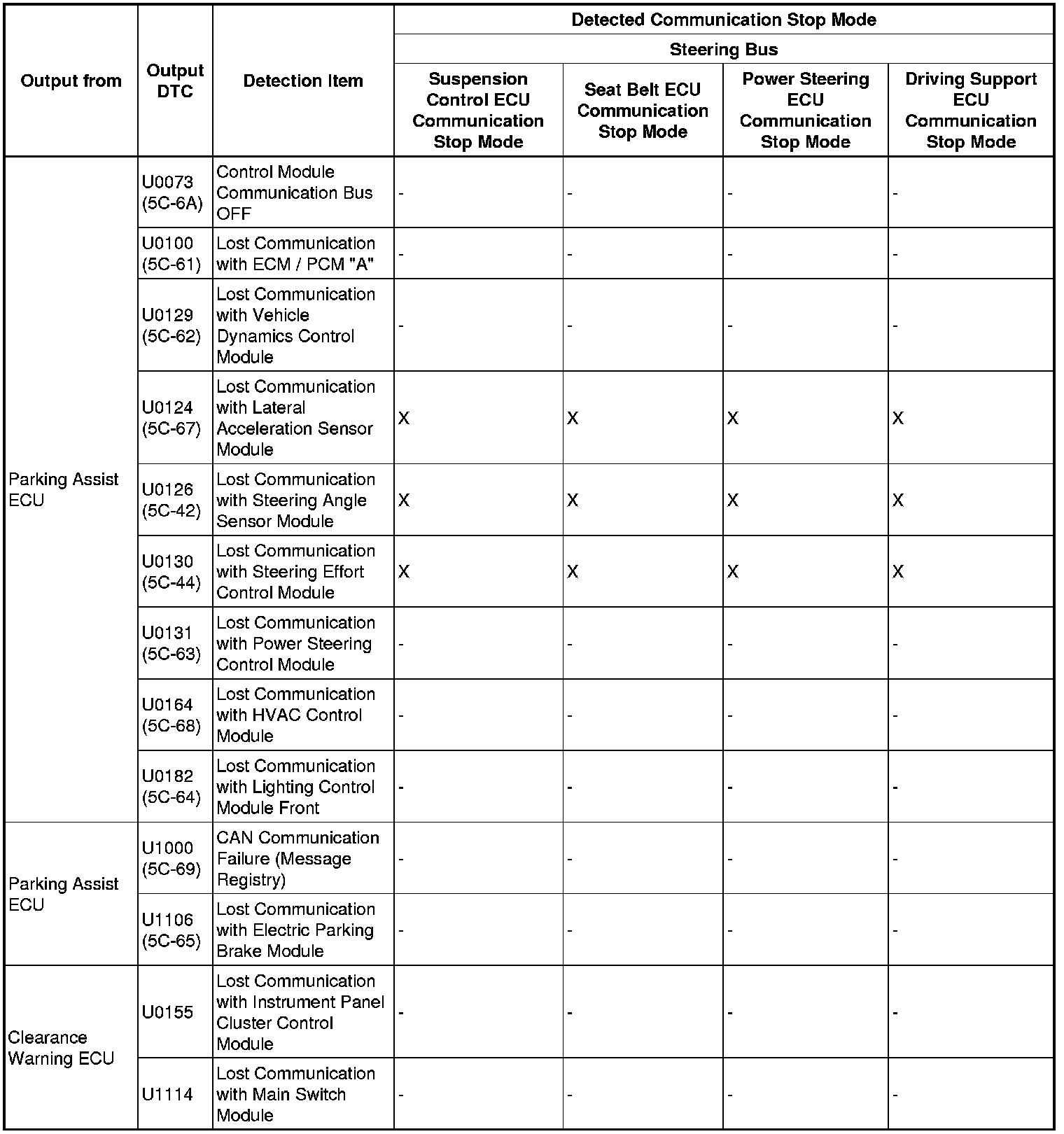

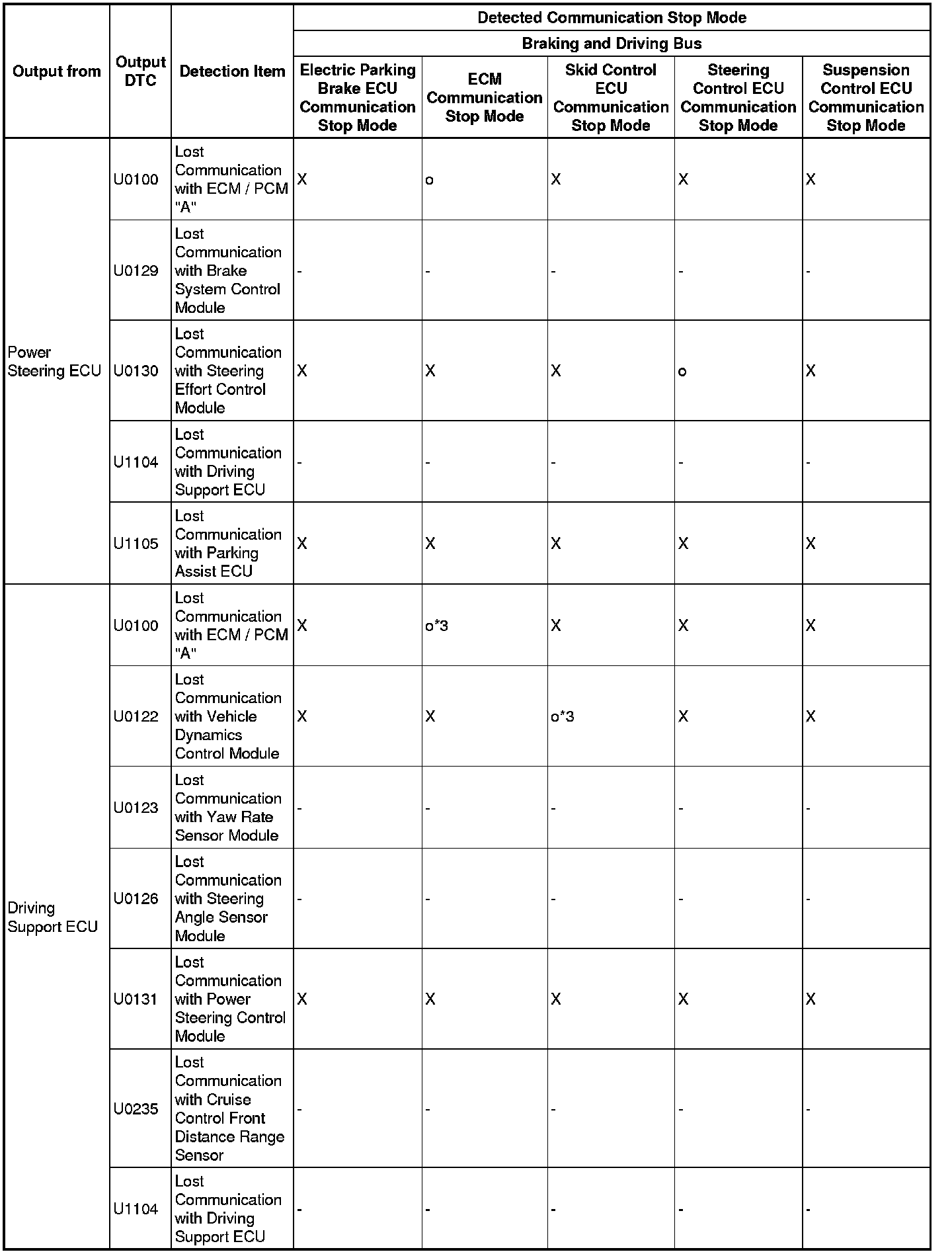

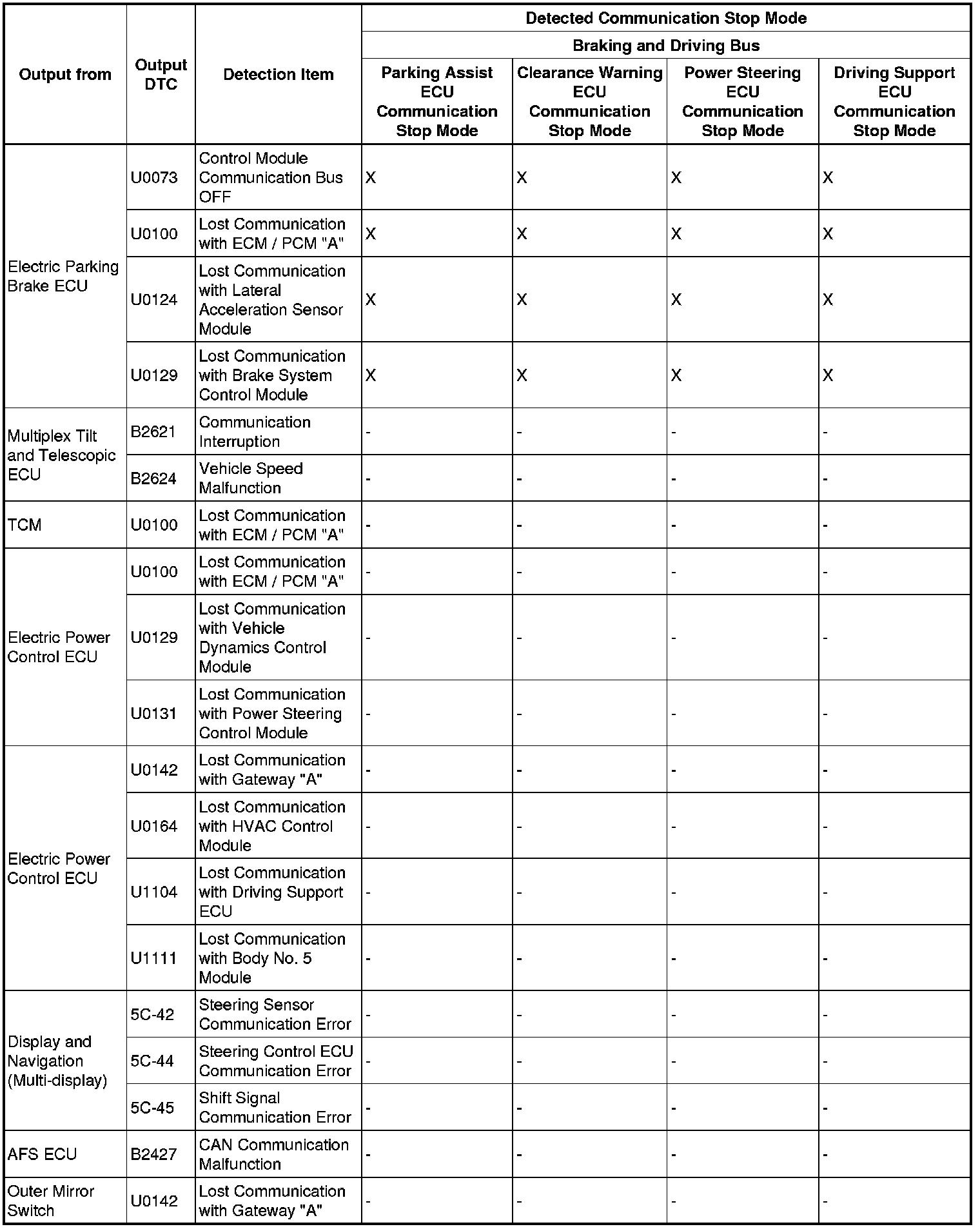

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: DIAGNOSIS SYSTEM

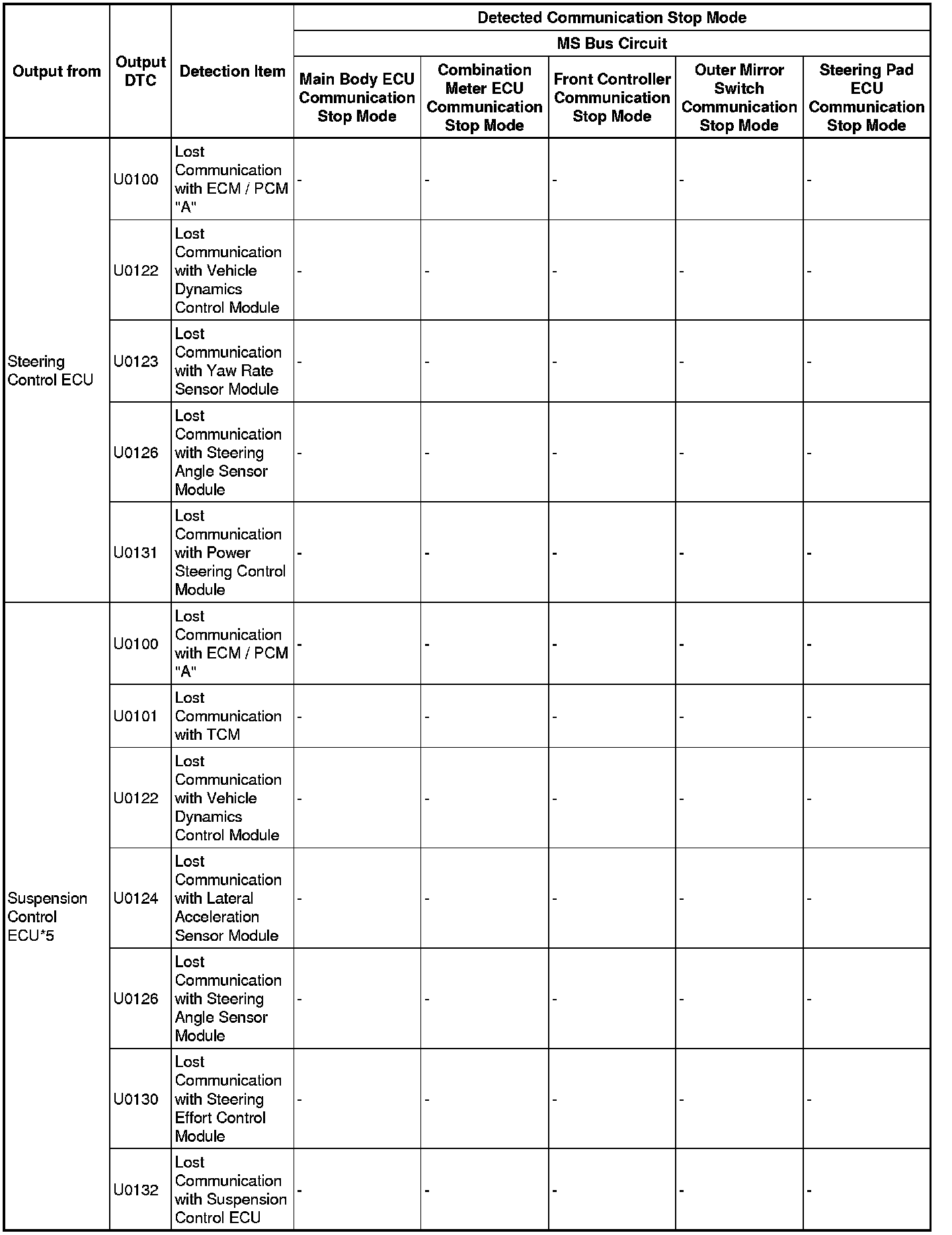

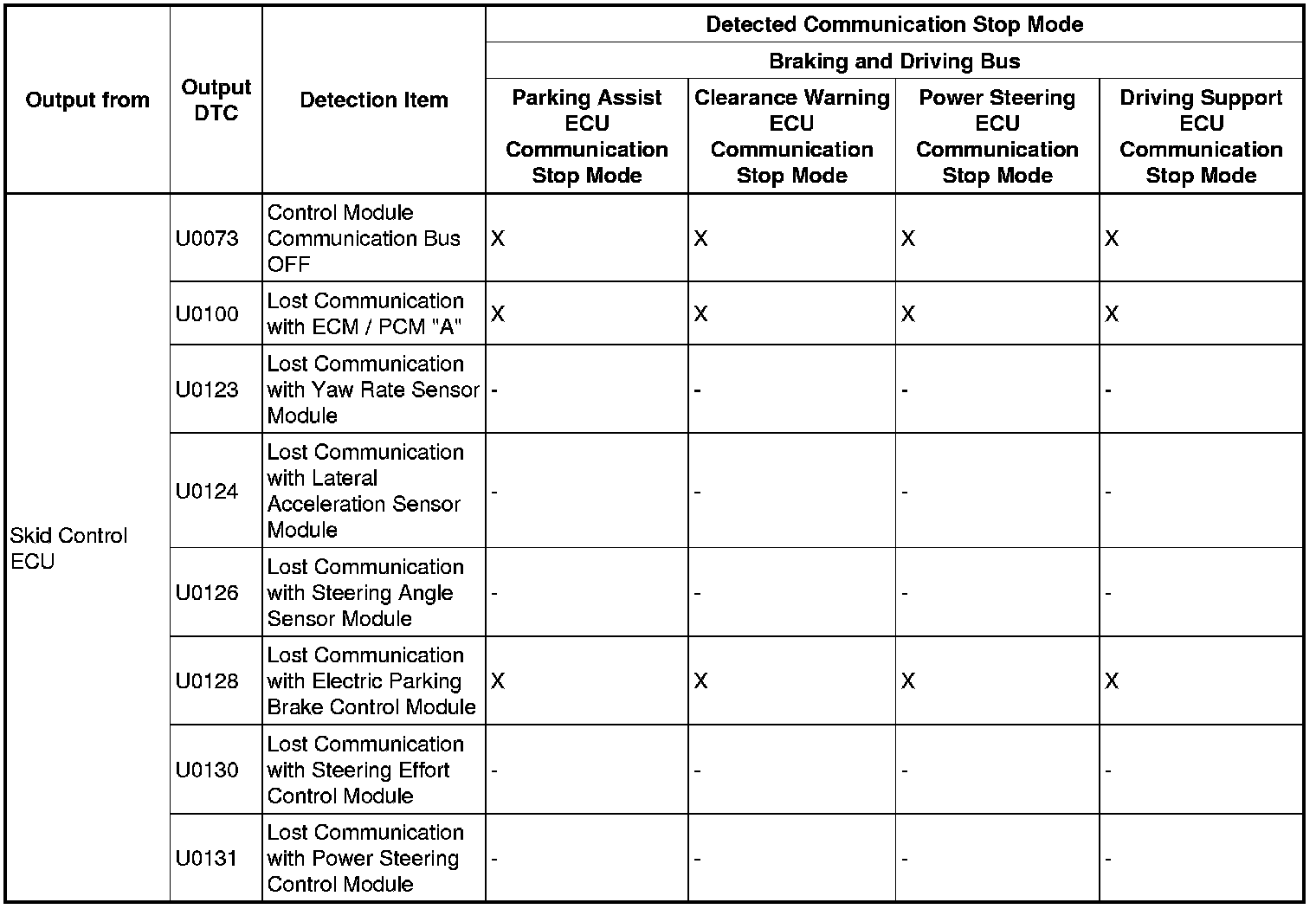

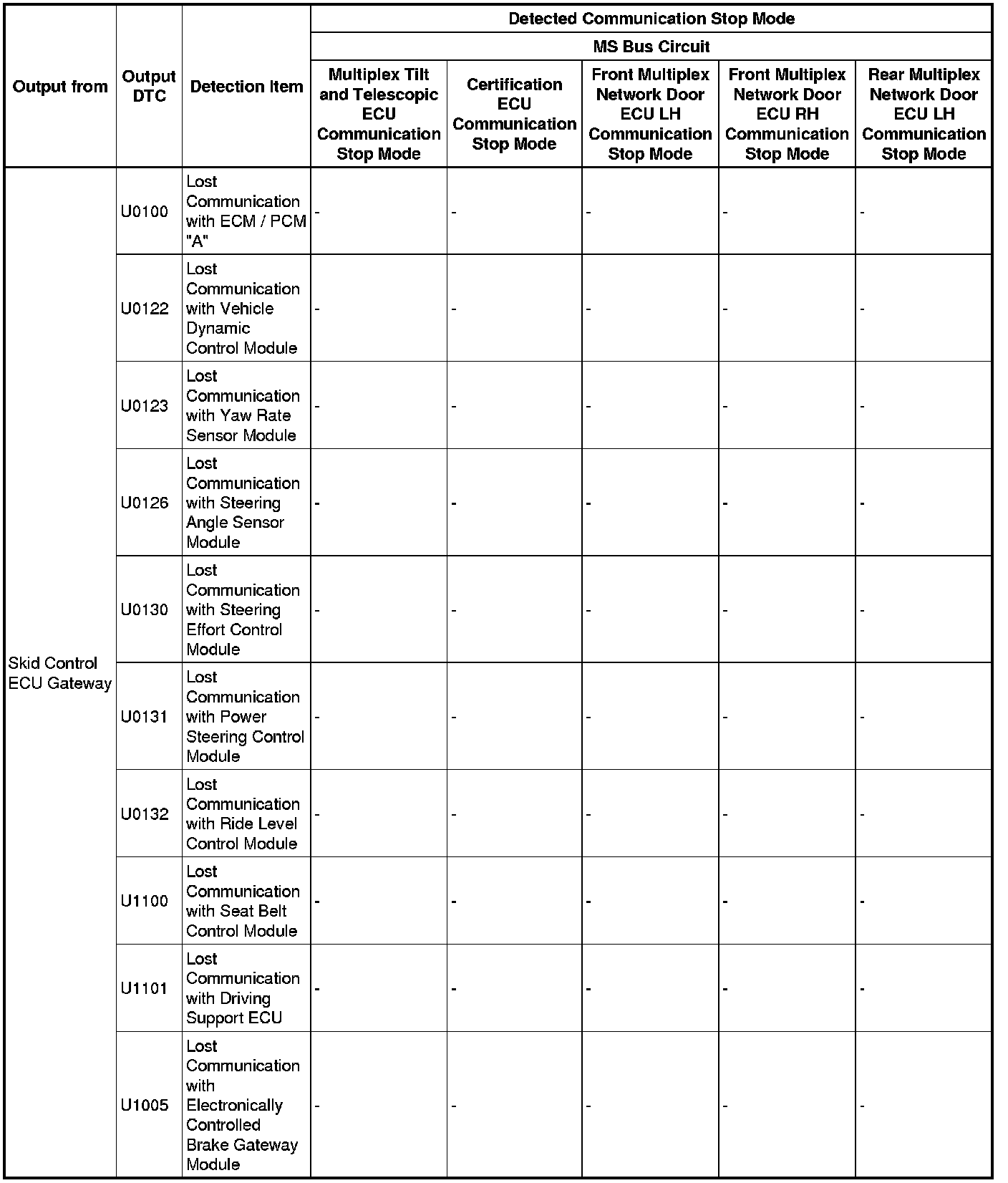

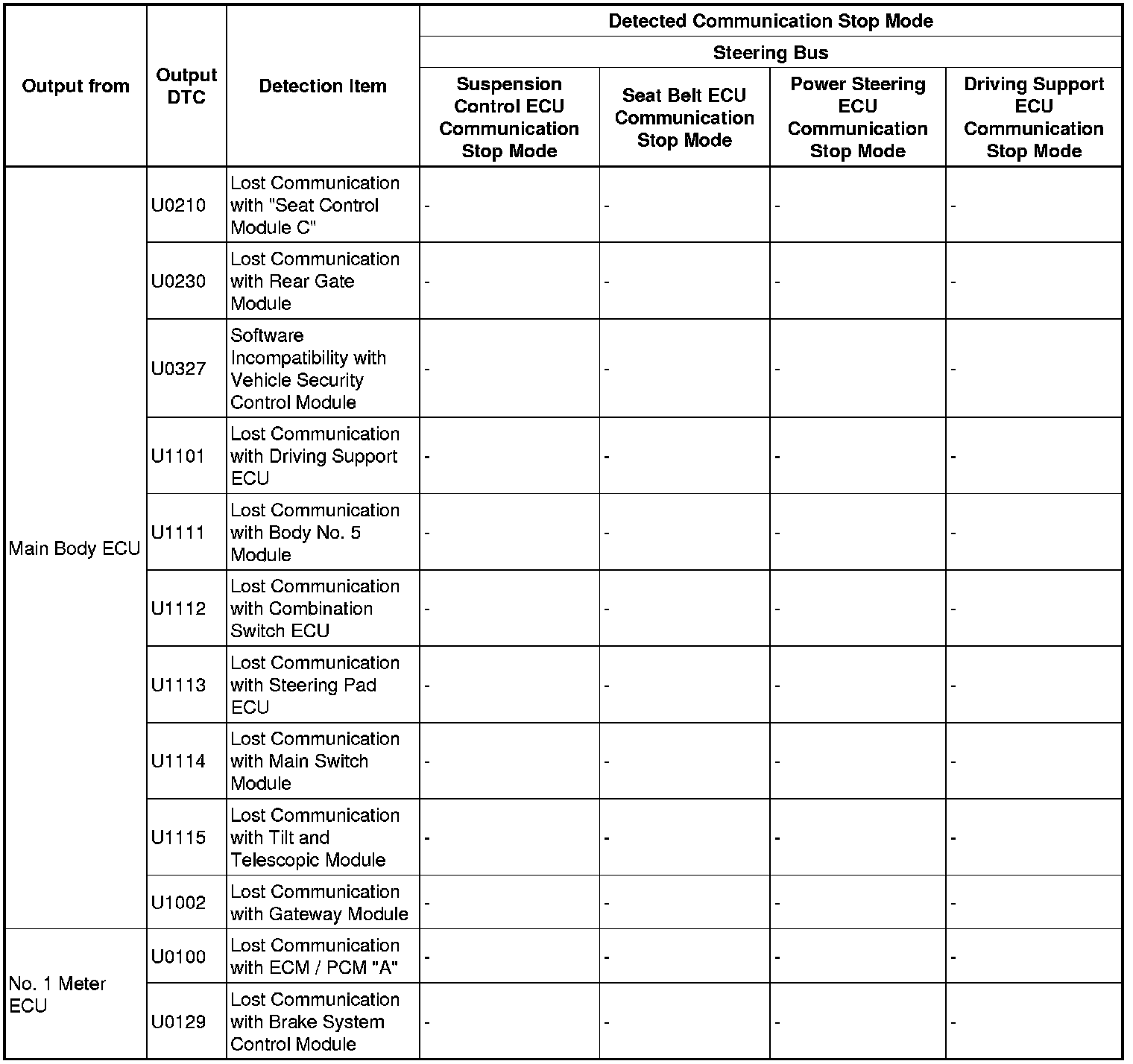

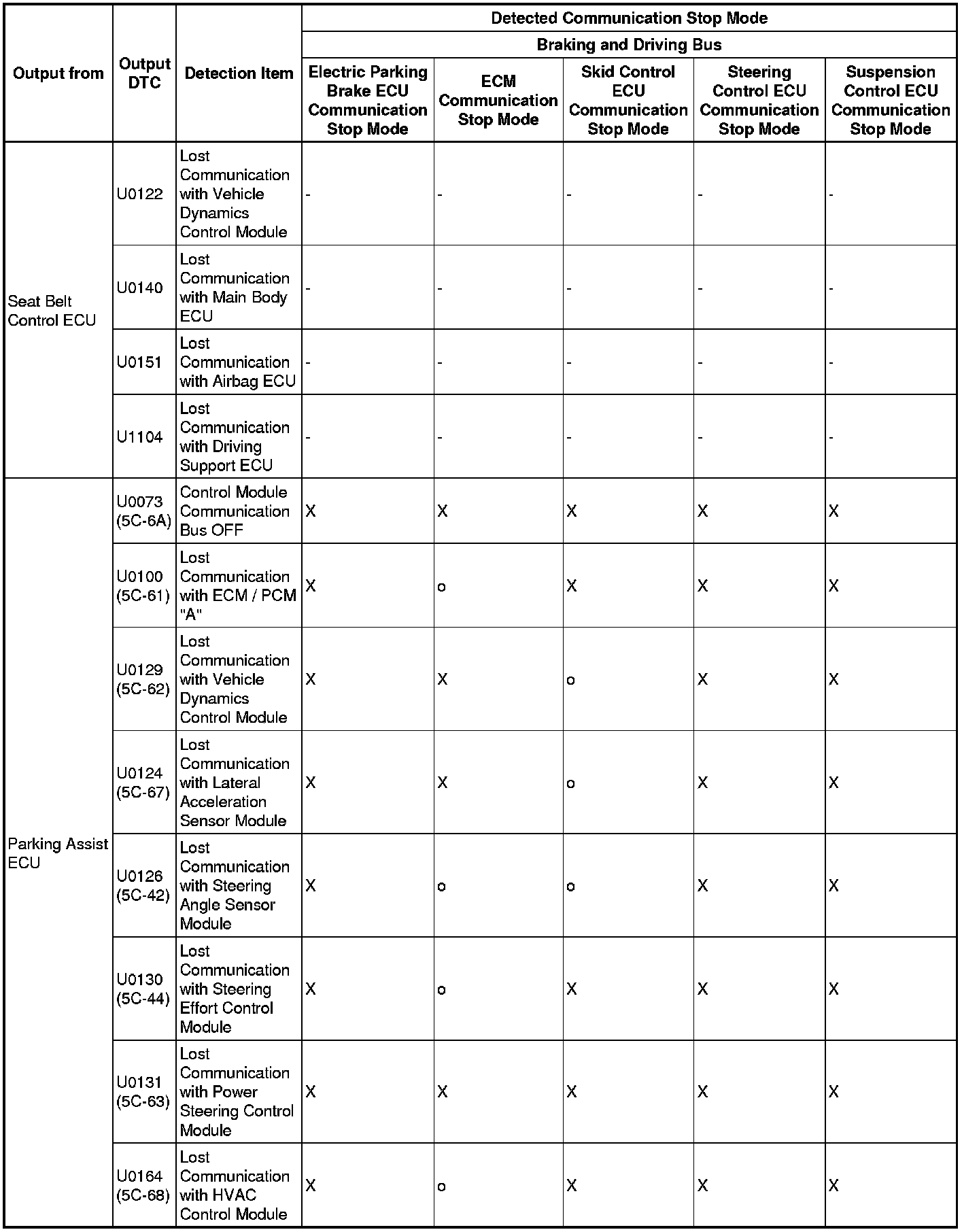

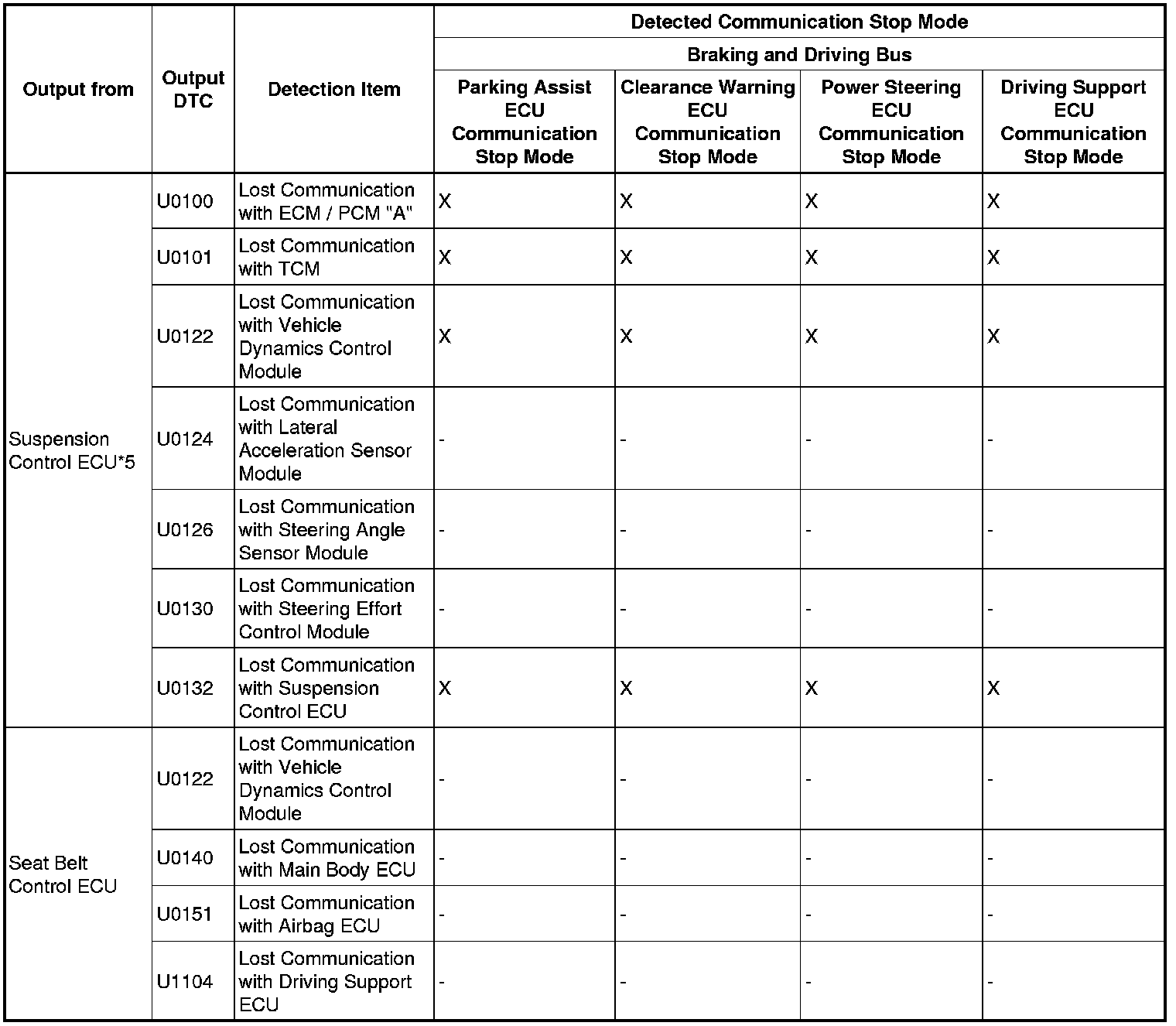

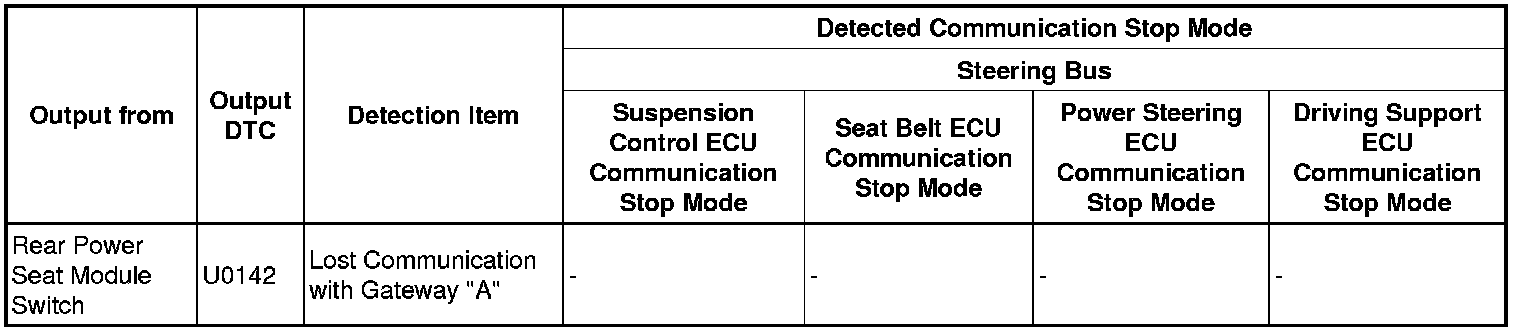

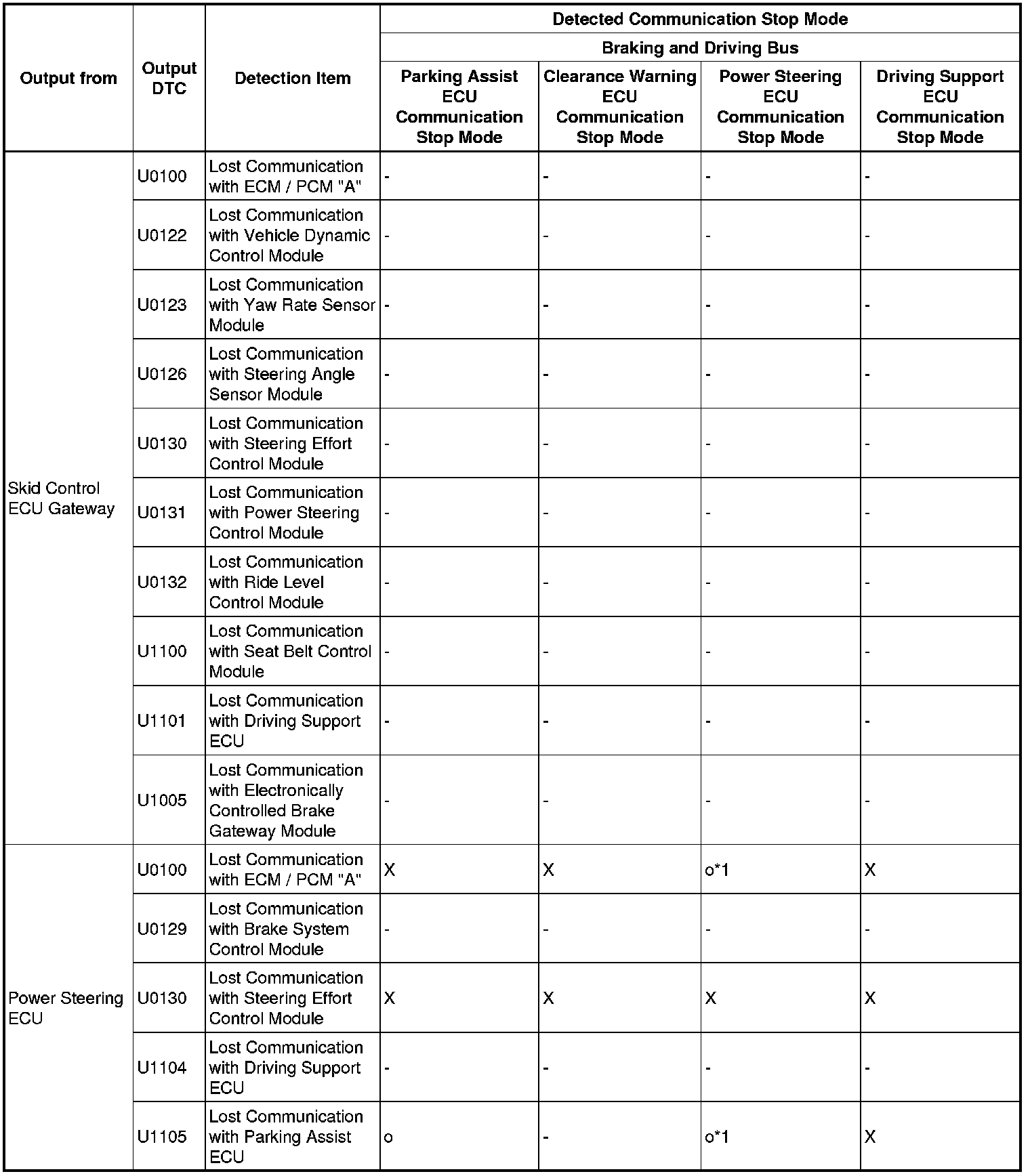

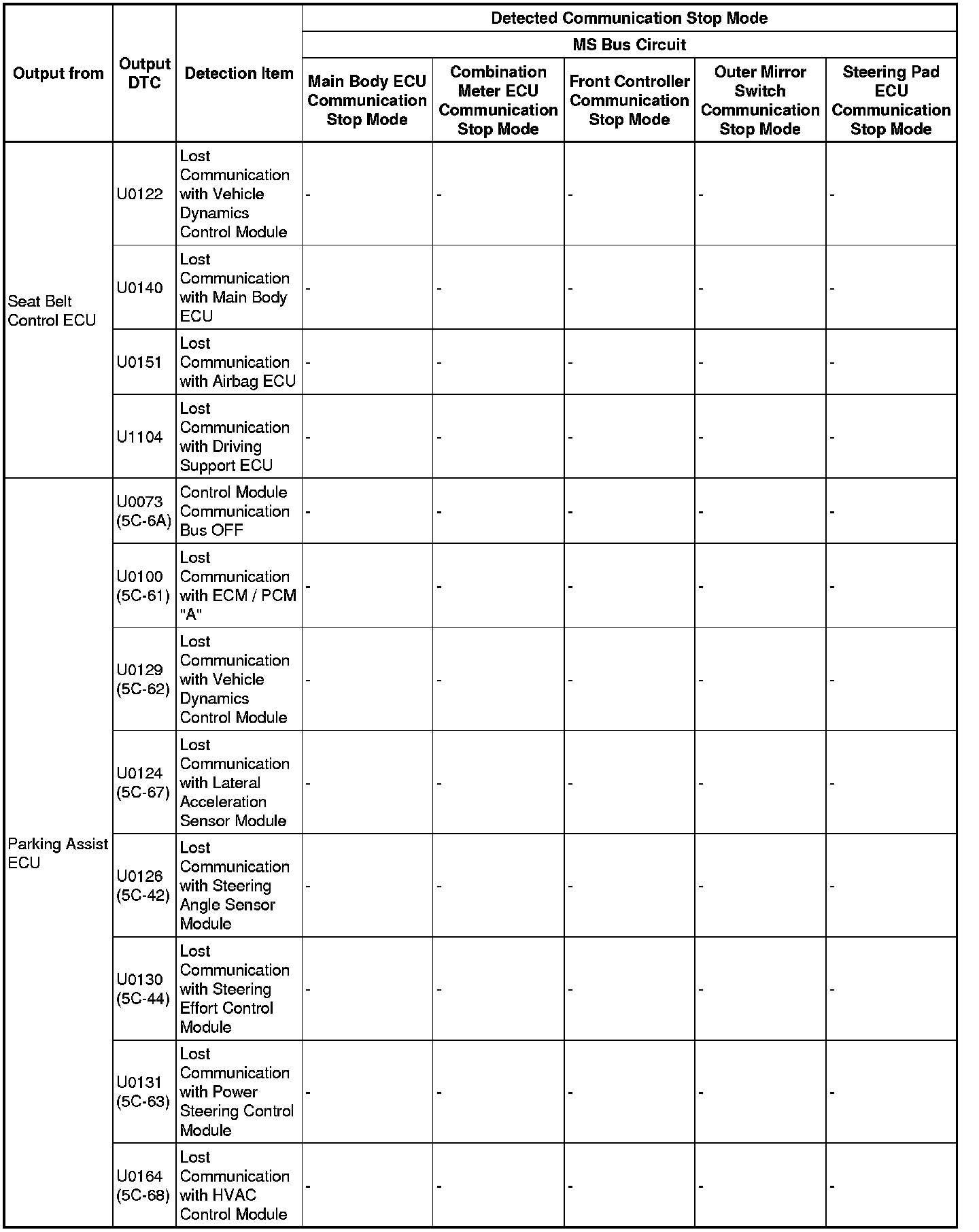

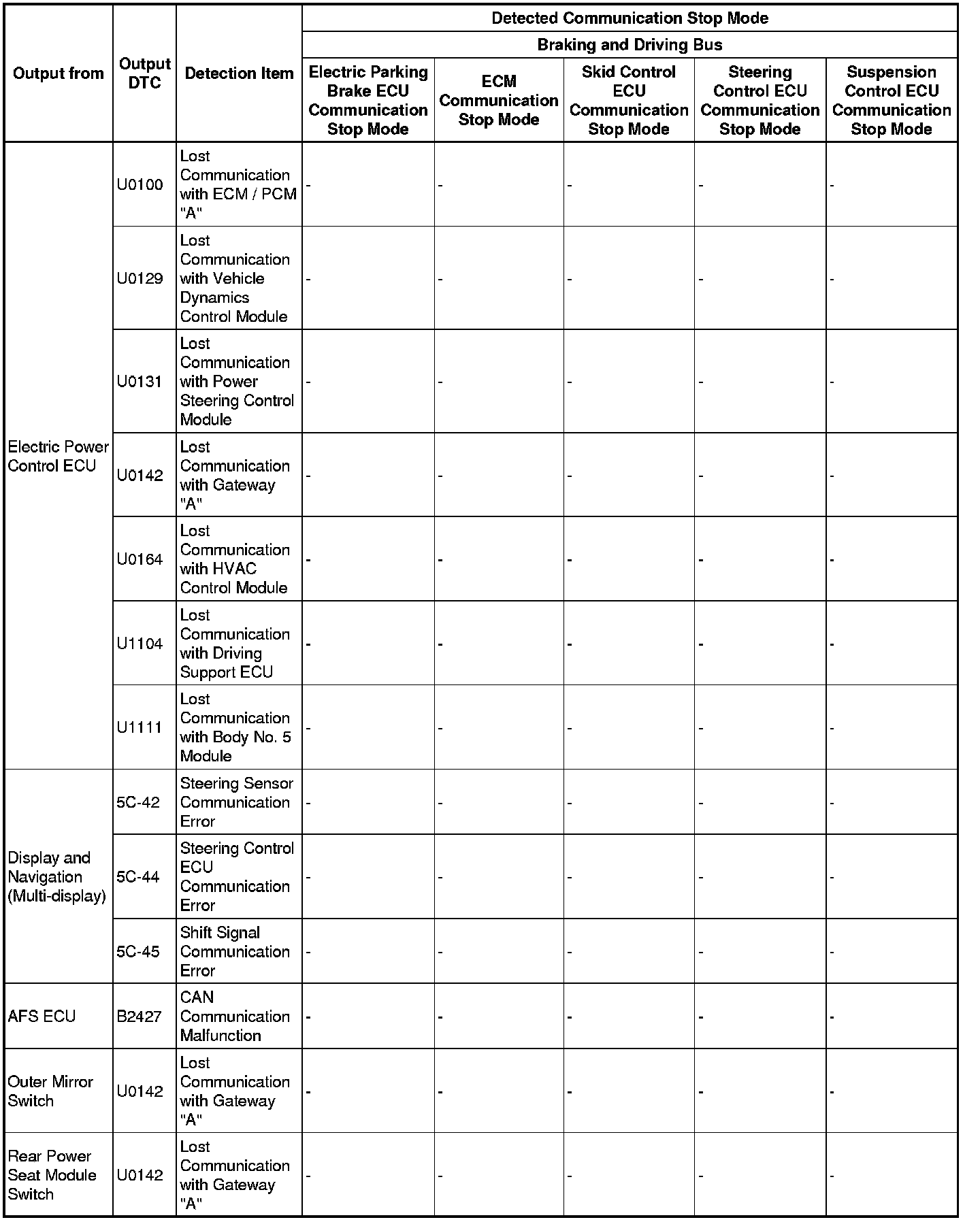

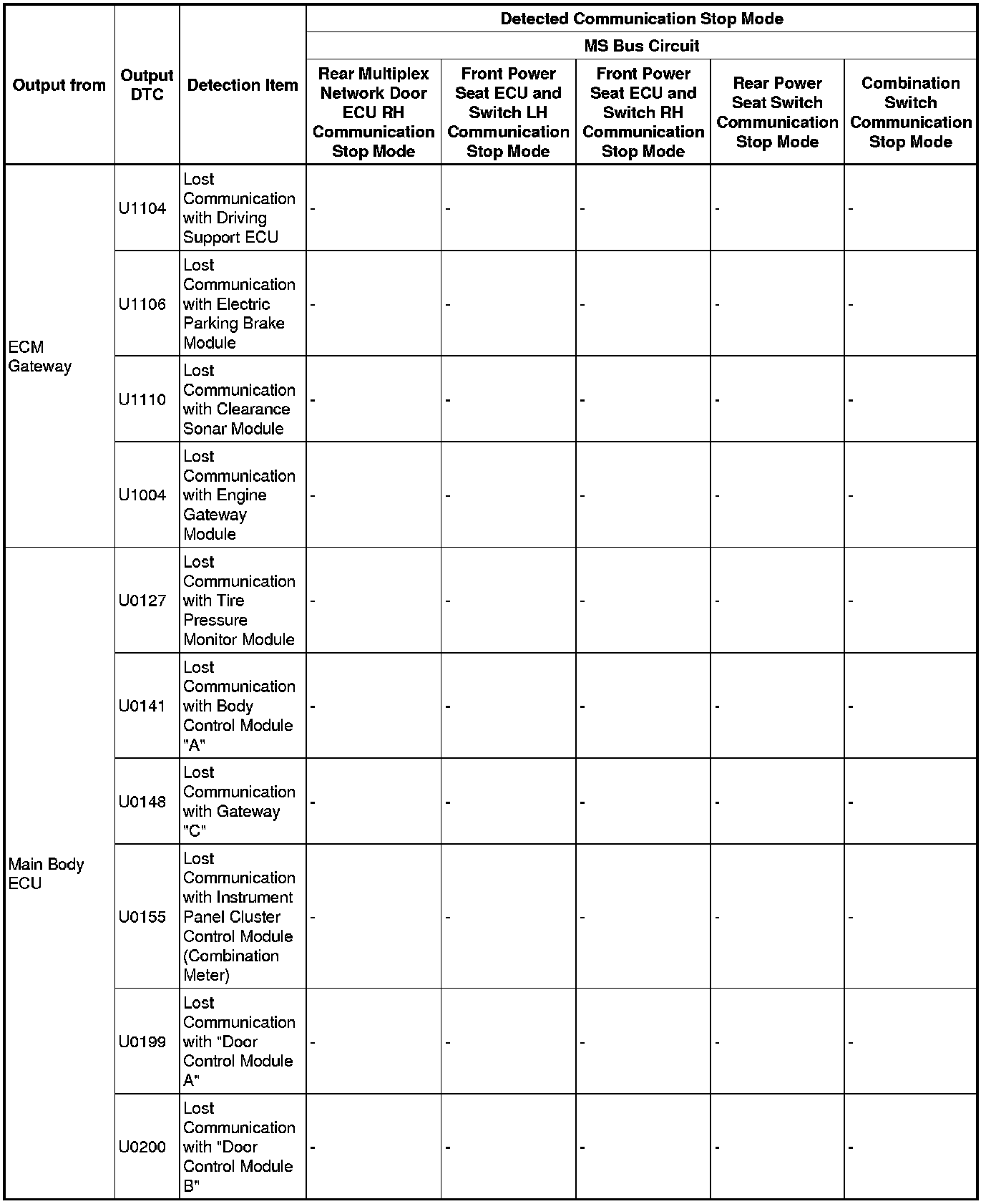

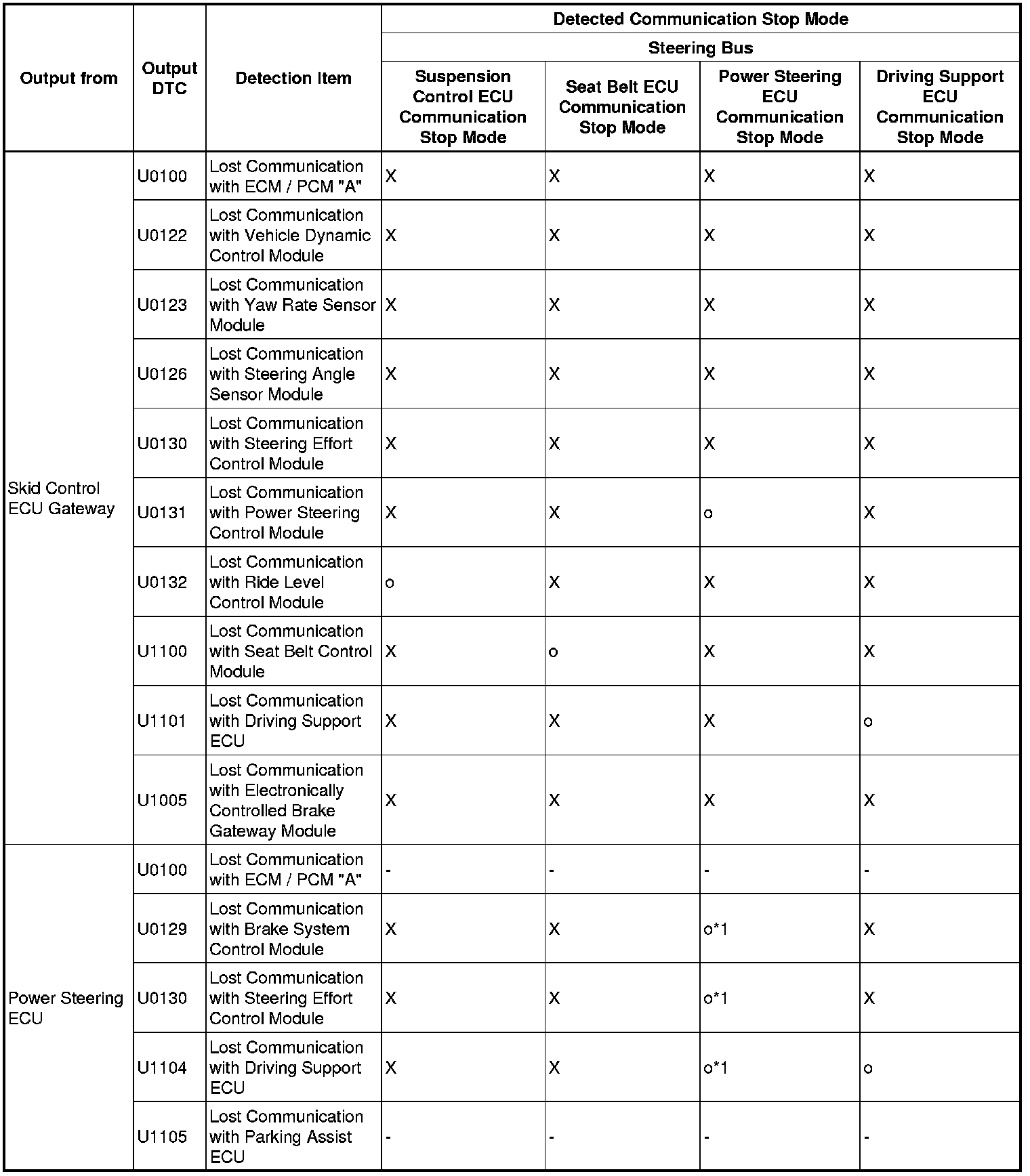

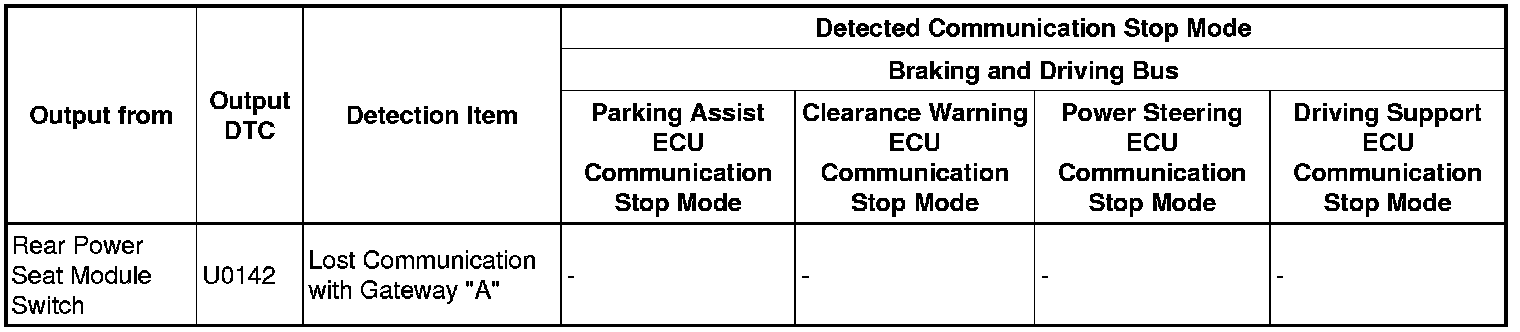

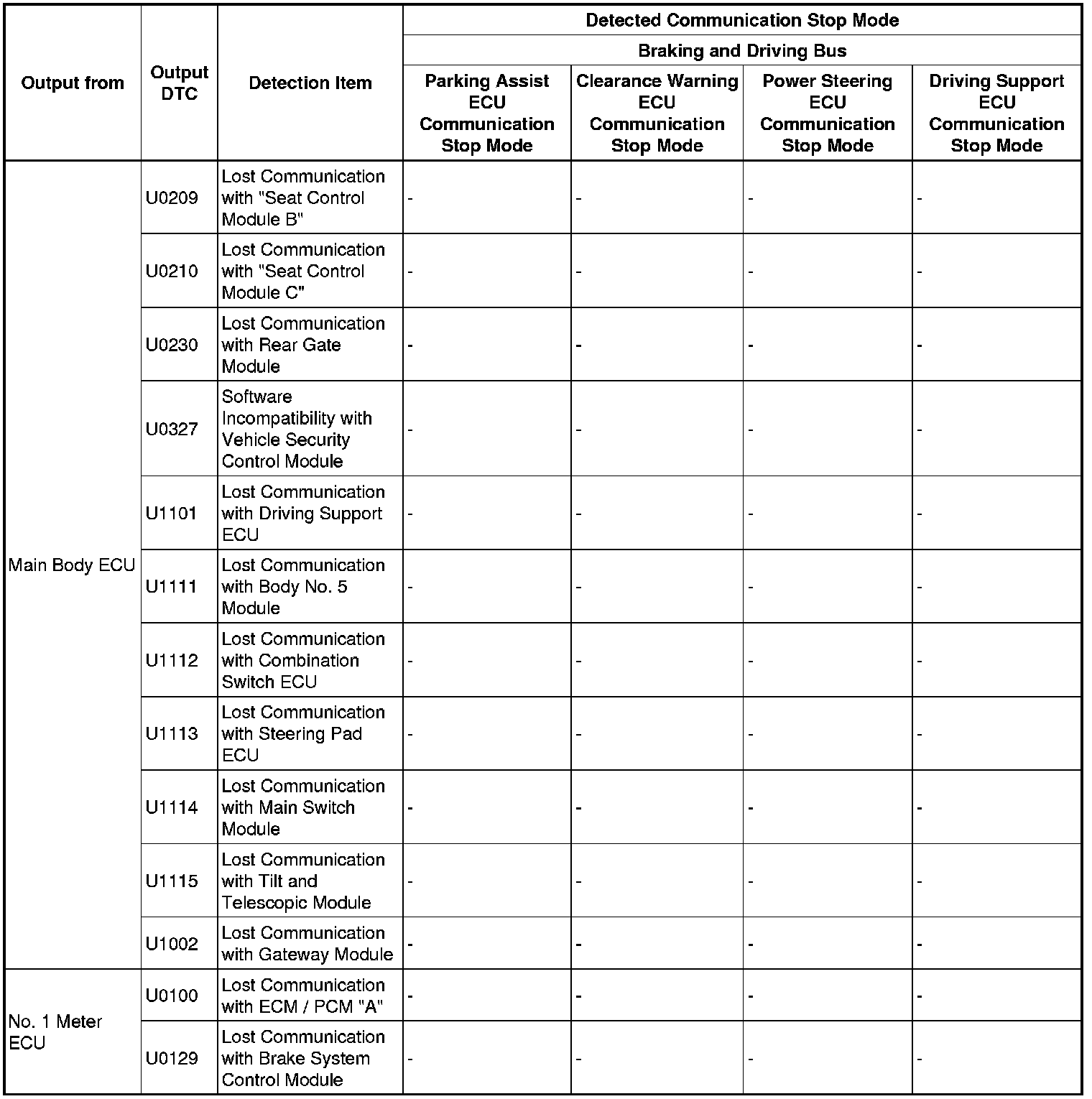

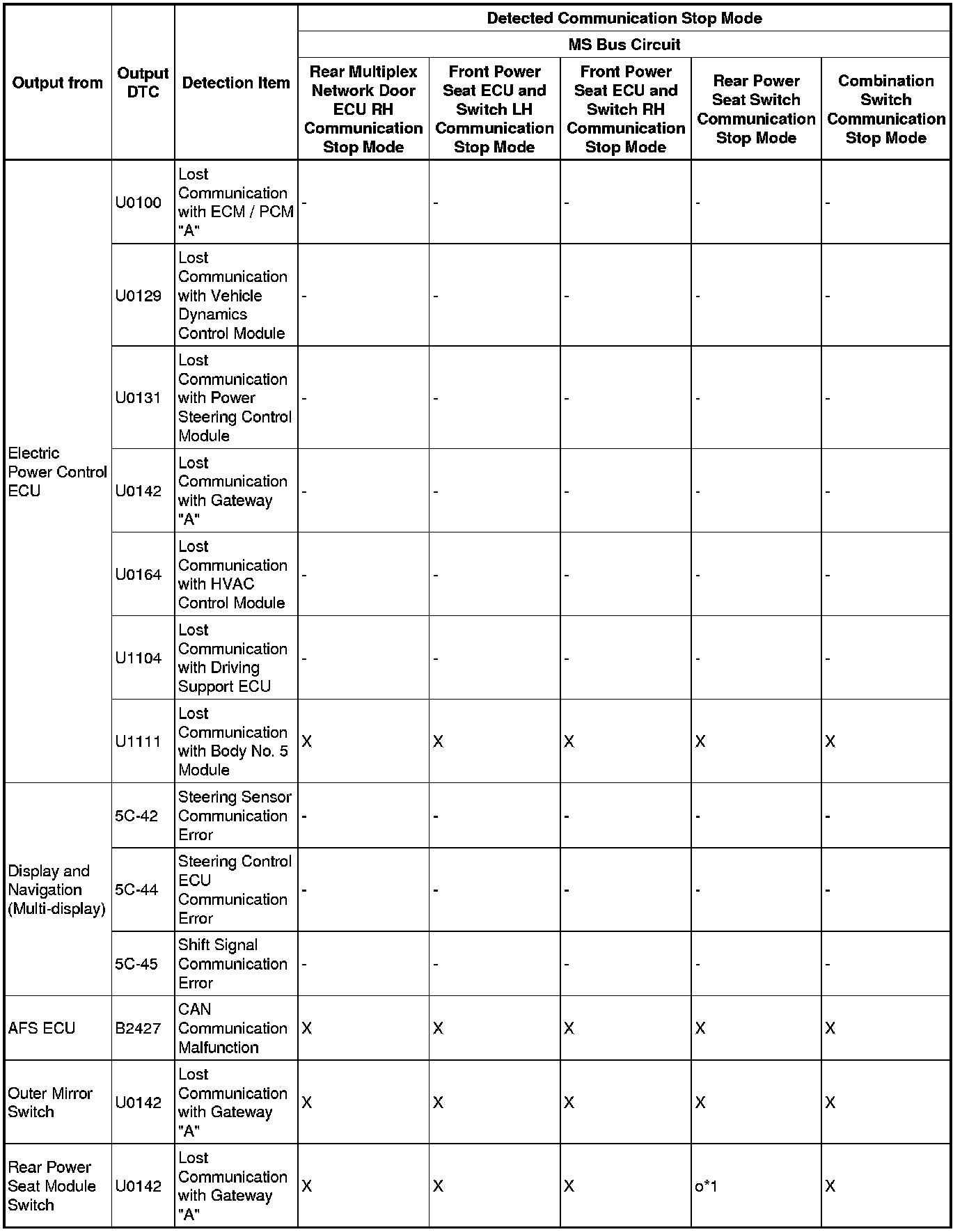

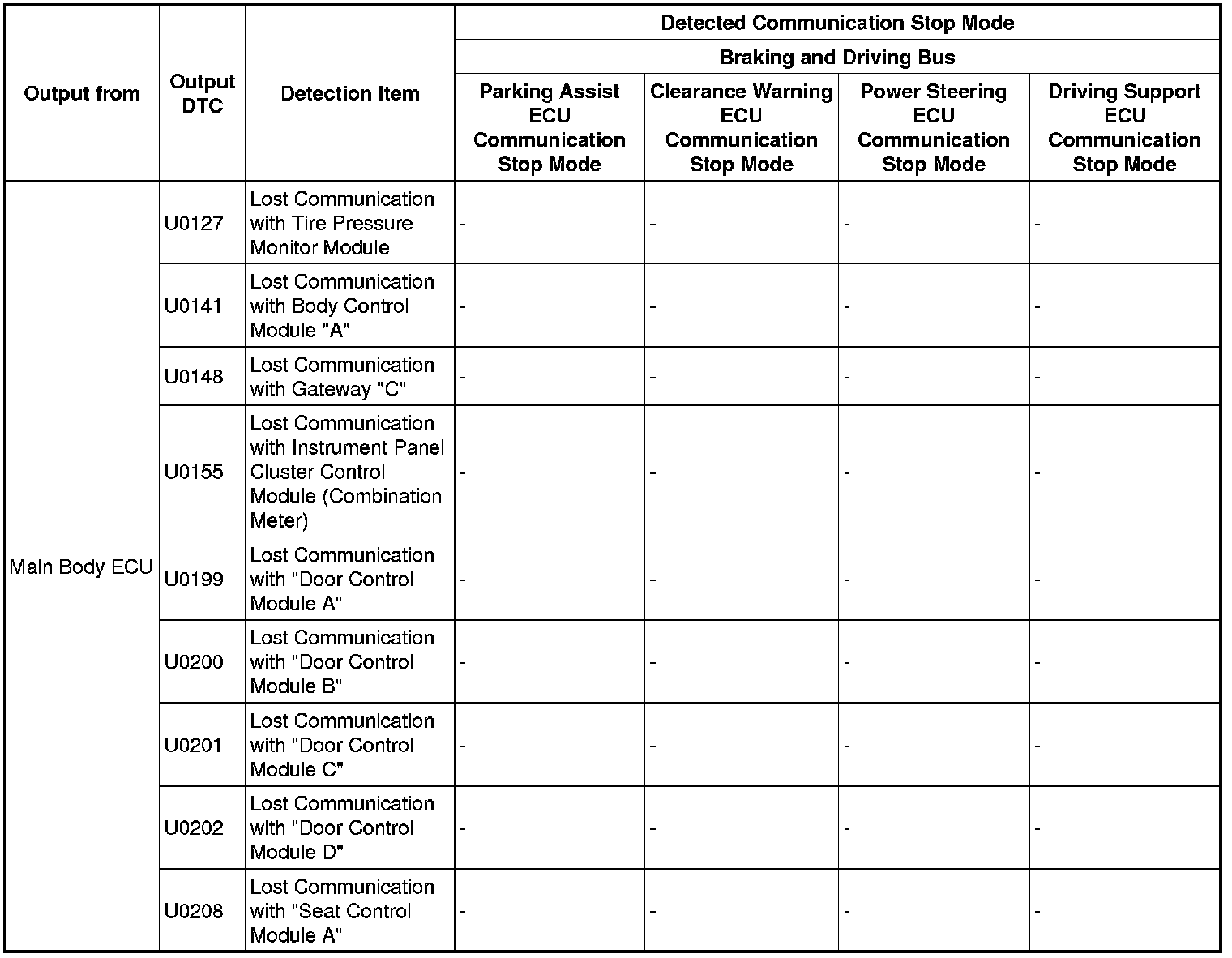

DIAGNOSIS SYSTEM (Continued)

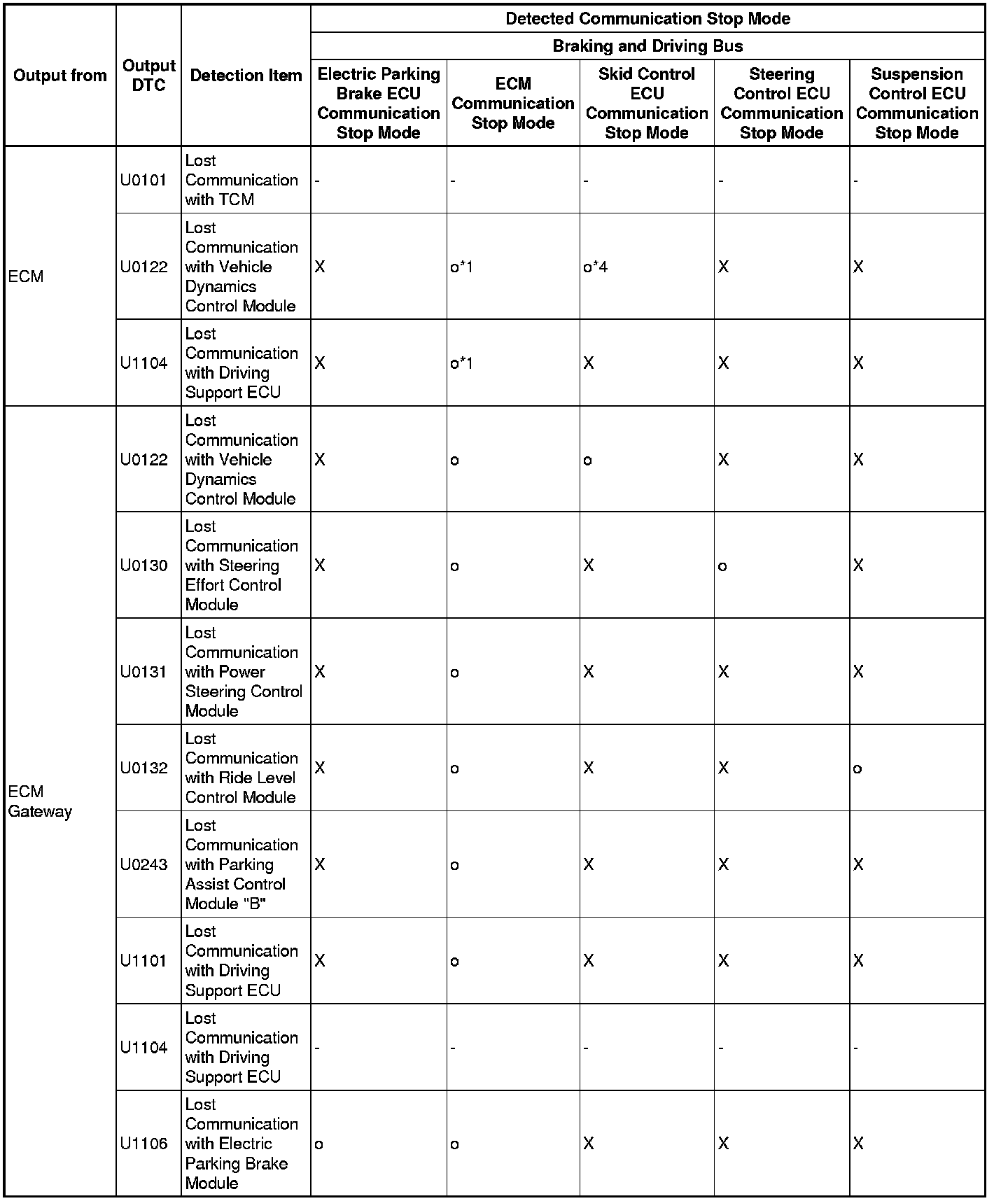

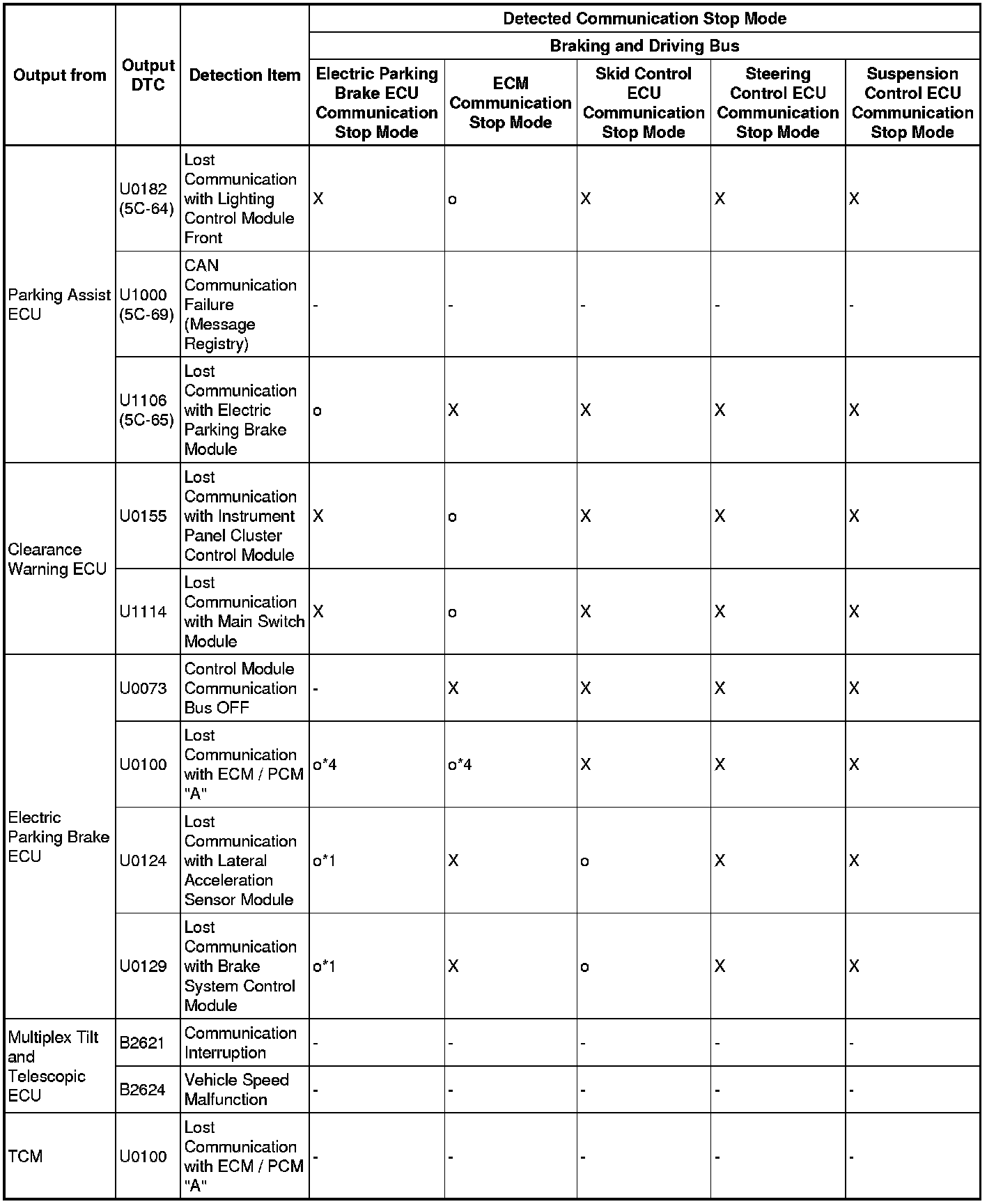

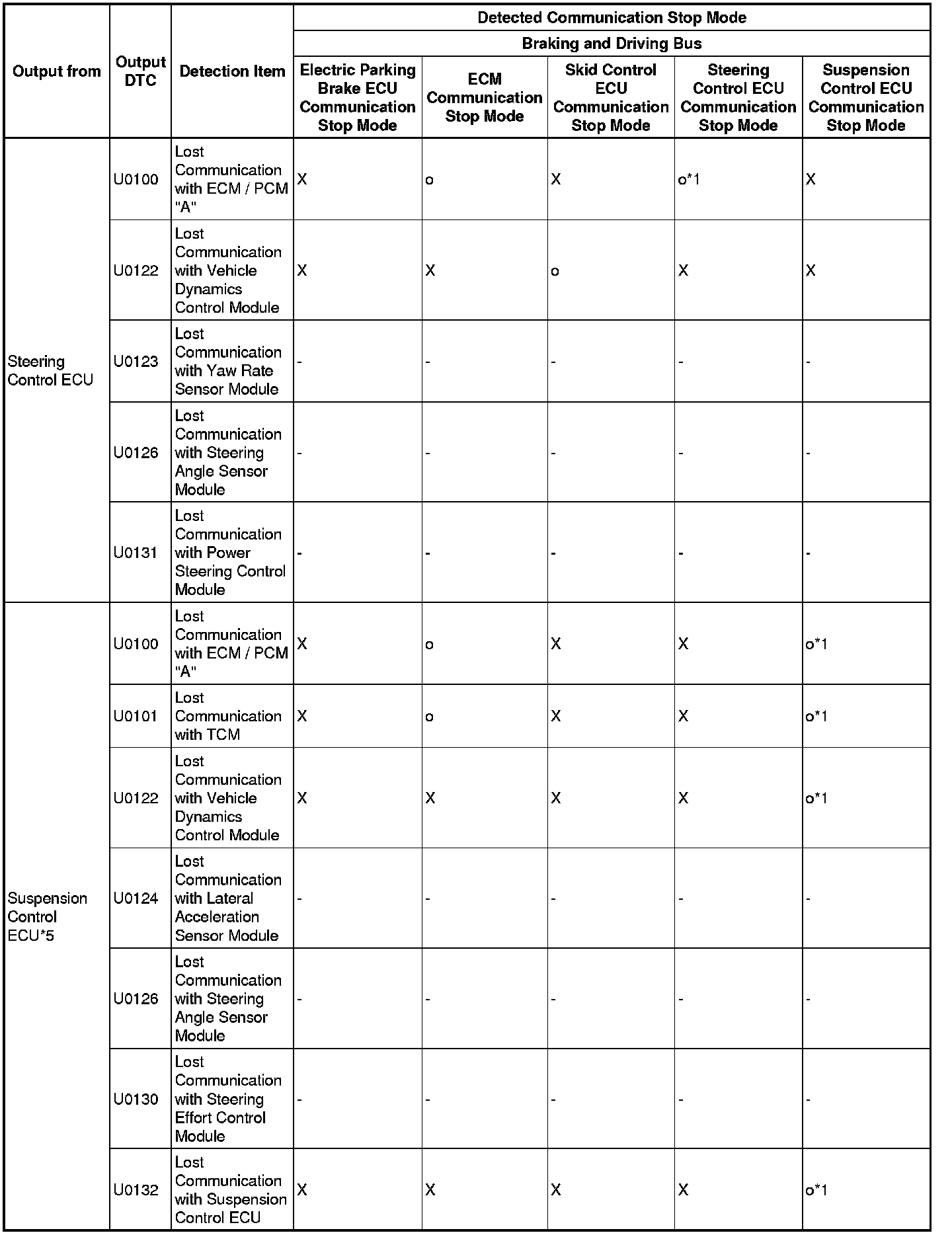

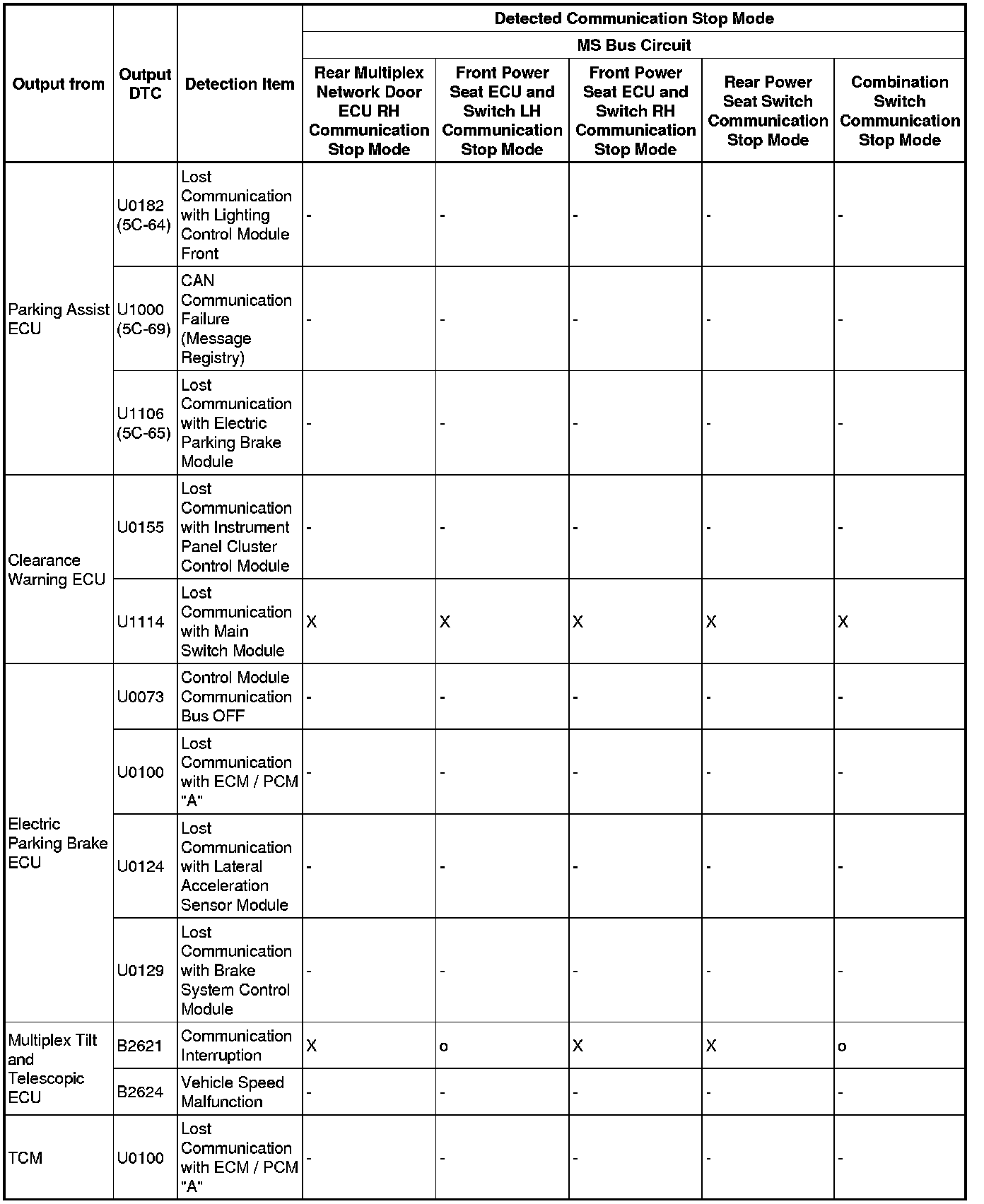

HINT:
- o: Output.
- X: When one side of branch wire is open, output may occur.
- *1: Only output when communication recovery has occurred. During communication stop, cannot be output.
- *4: While driving.
- *5: Only present DTCs output.

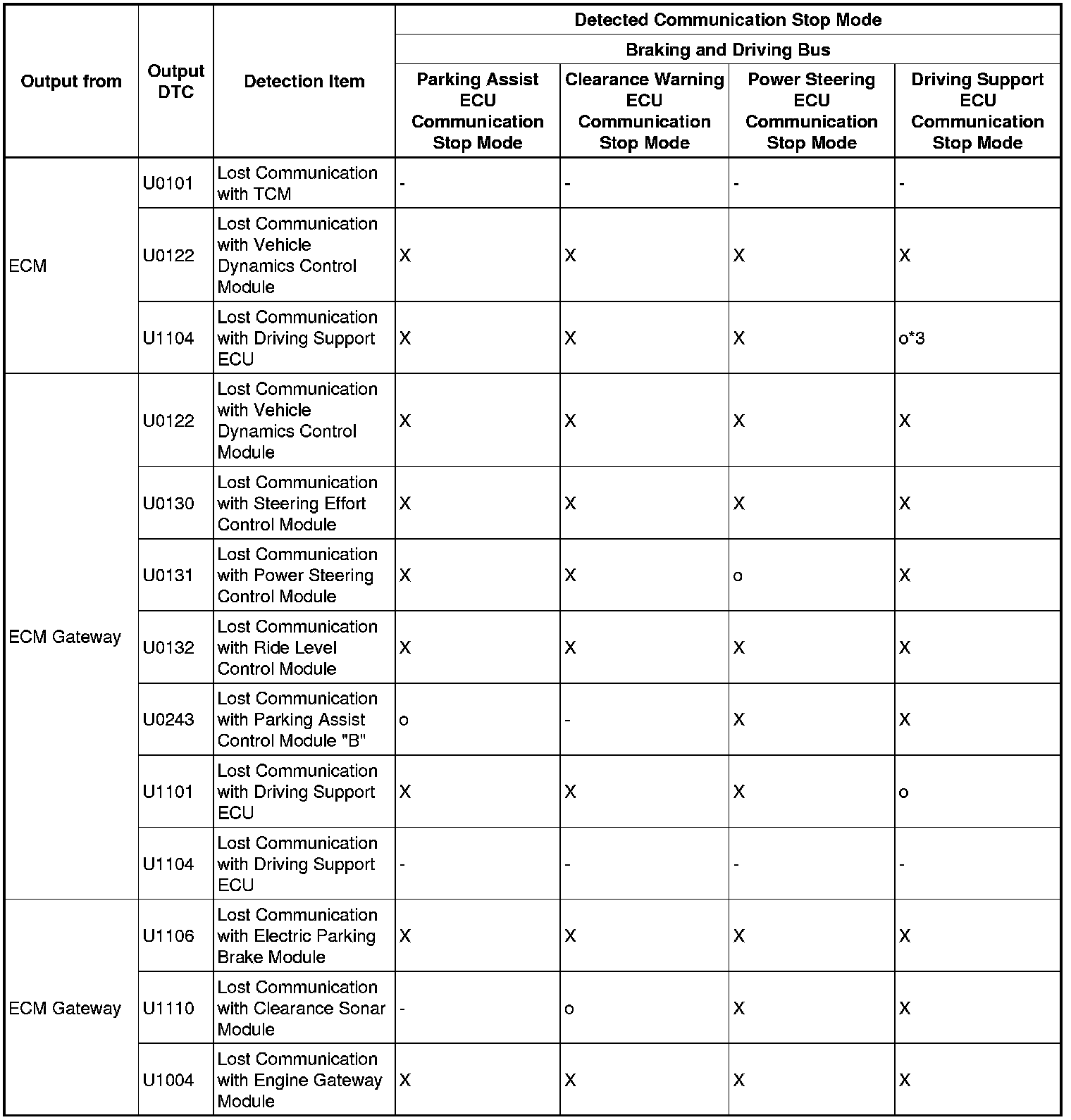

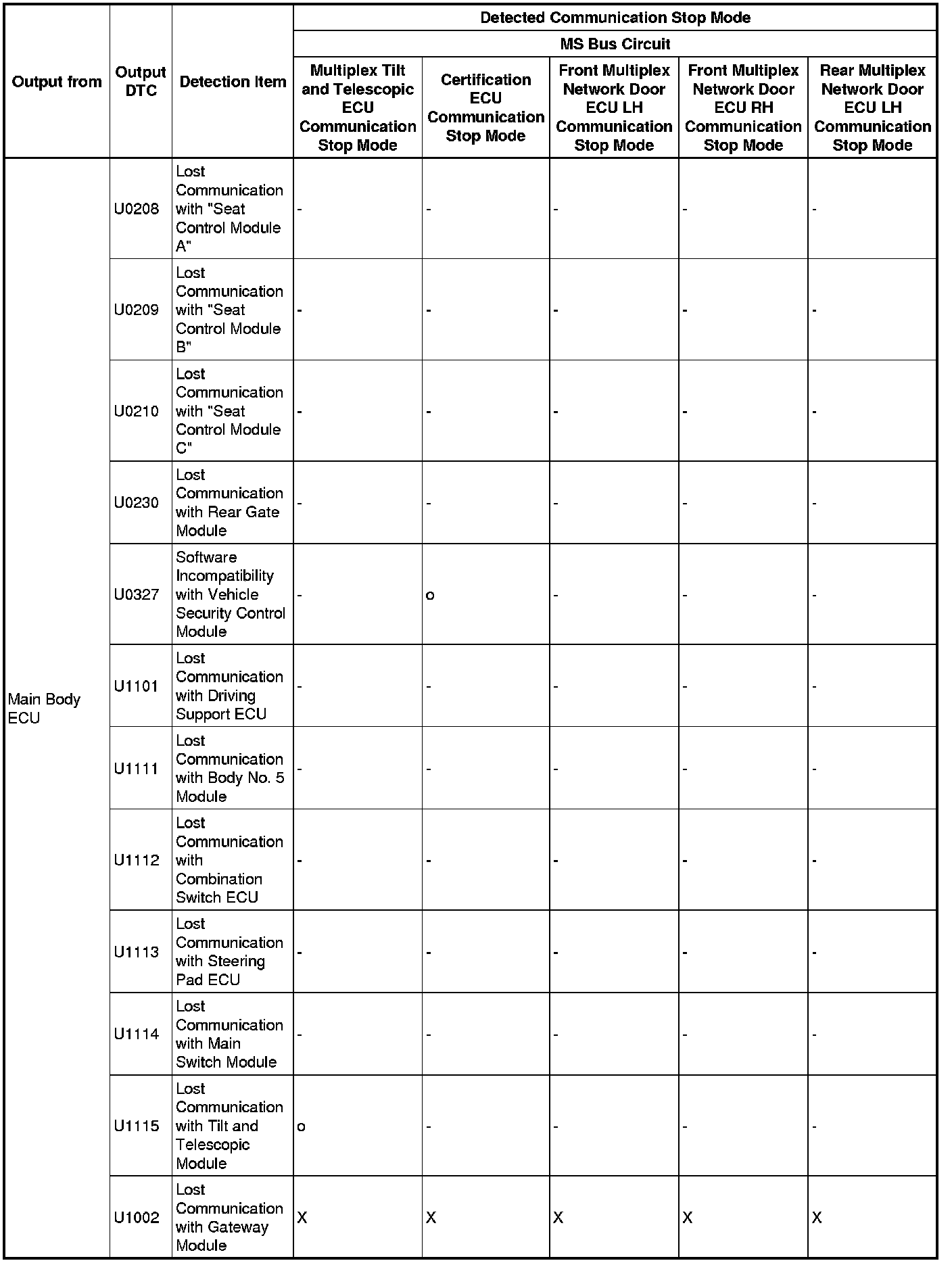

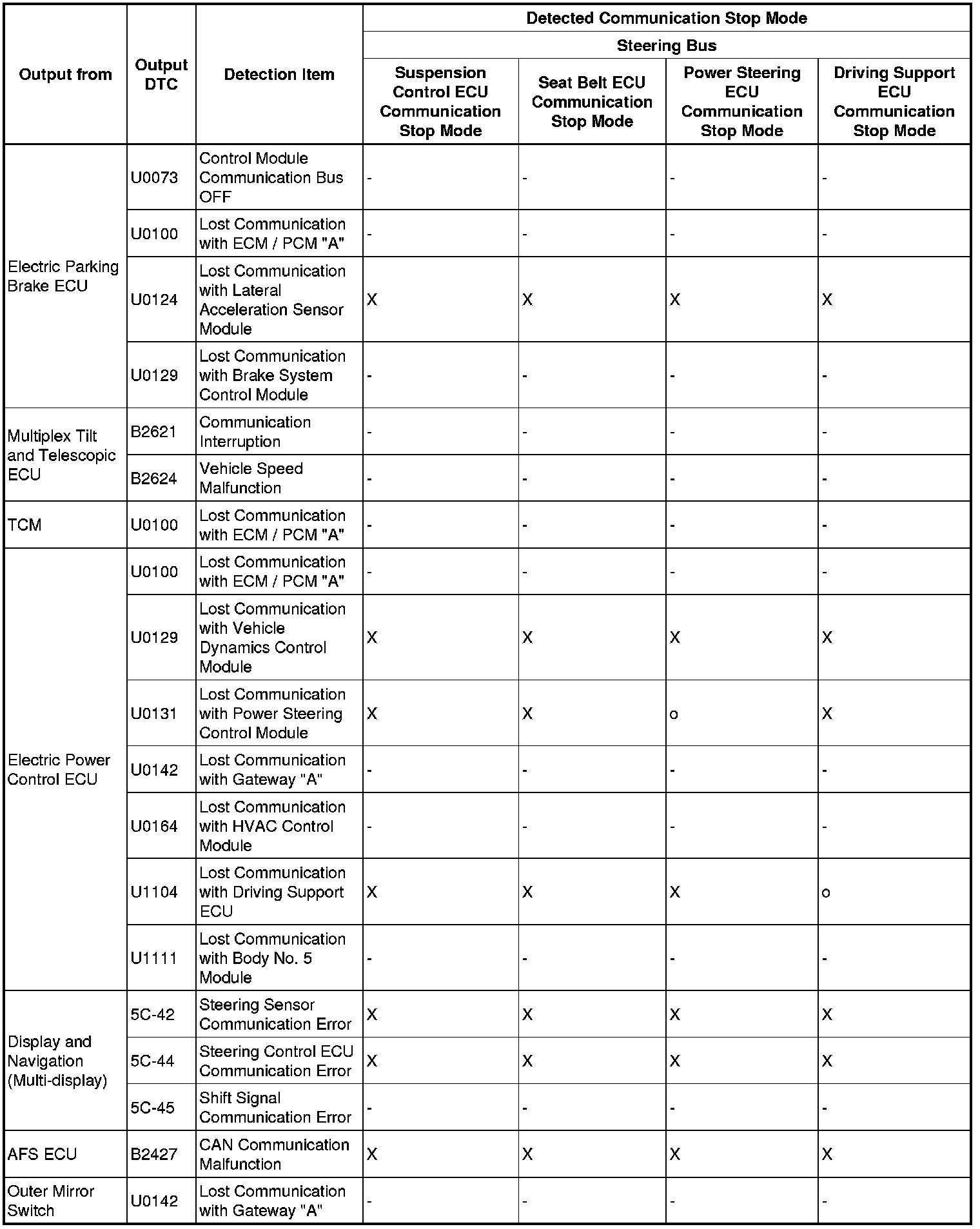

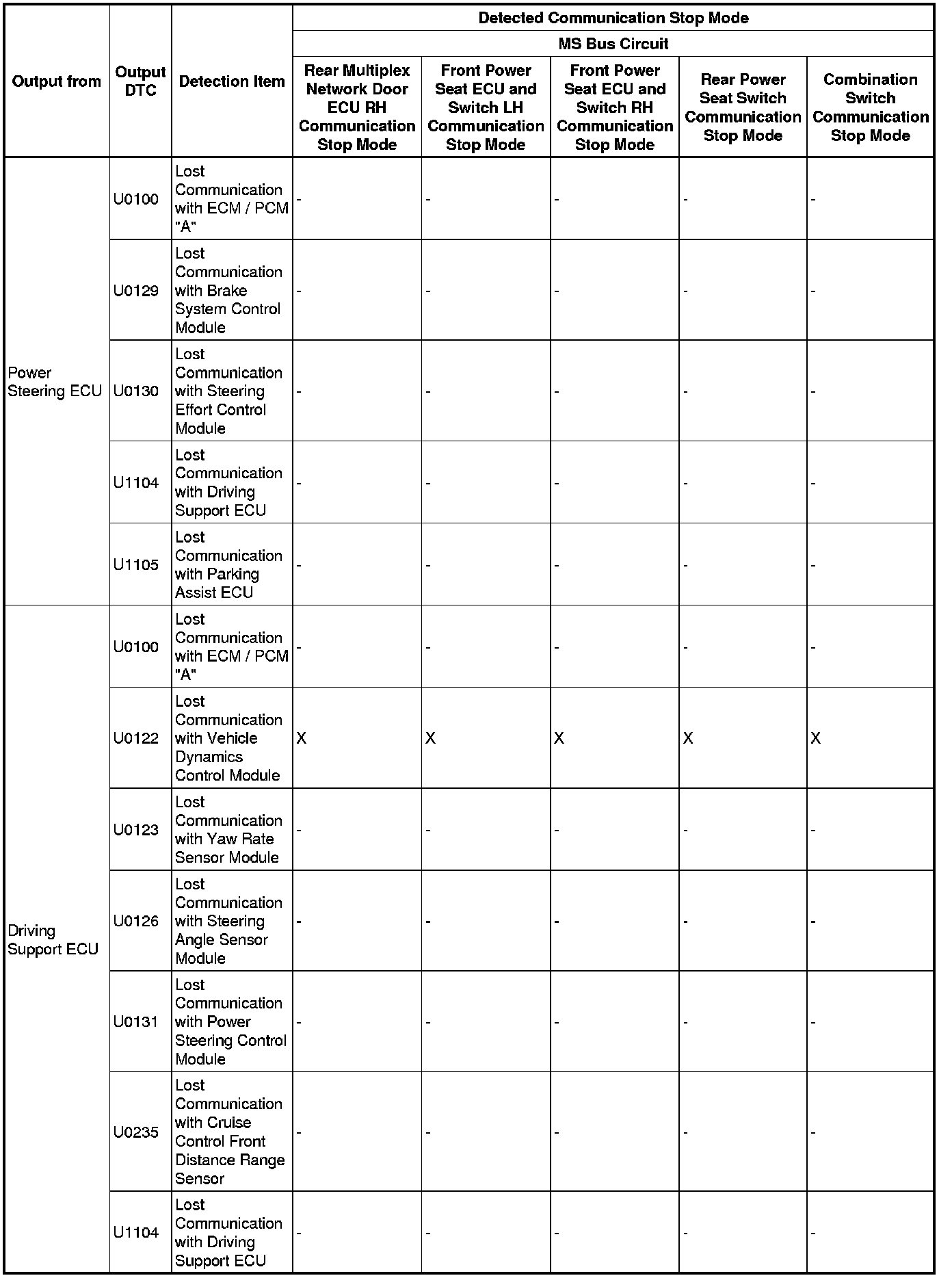

HINT:
- o: Output.
- X: When one side of branch wire is open, output may occur.
- *1: Only output when communication recovery has occurred. During communication stop, cannot be output.
- *3: During dynamic radar cruise control and pre-collision system control.
- *4: While driving.
- *5: Only present DTCs output.

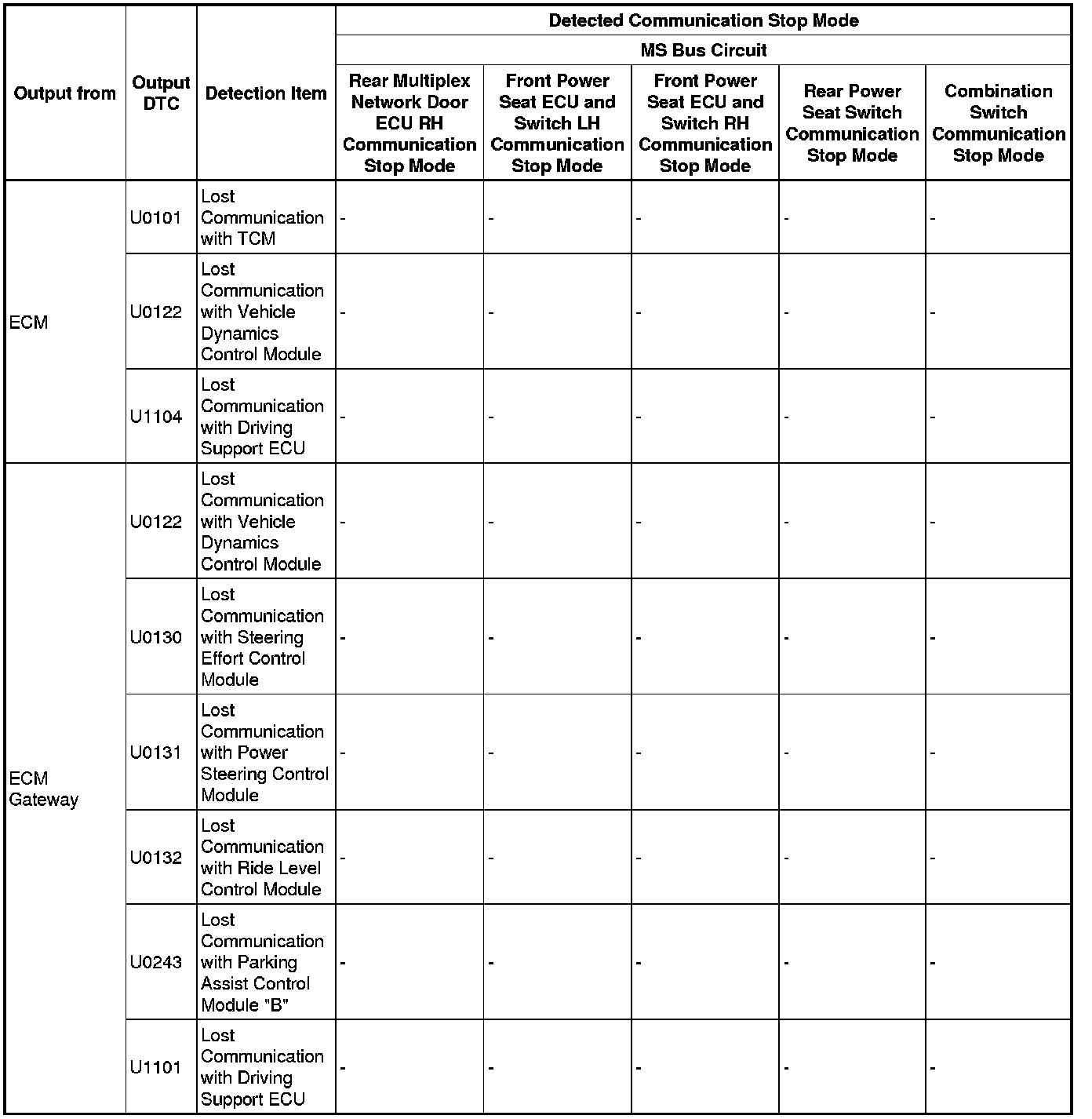

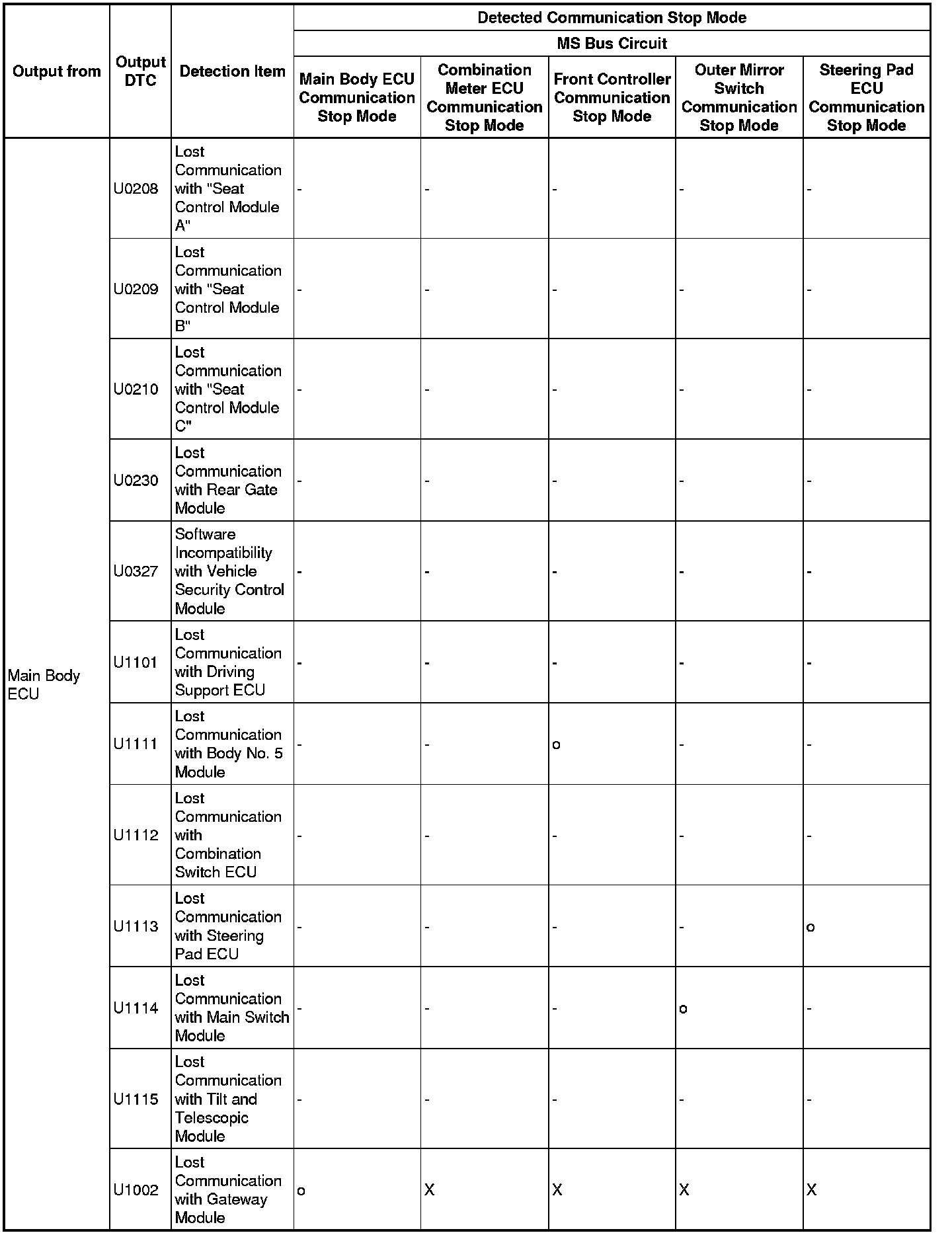

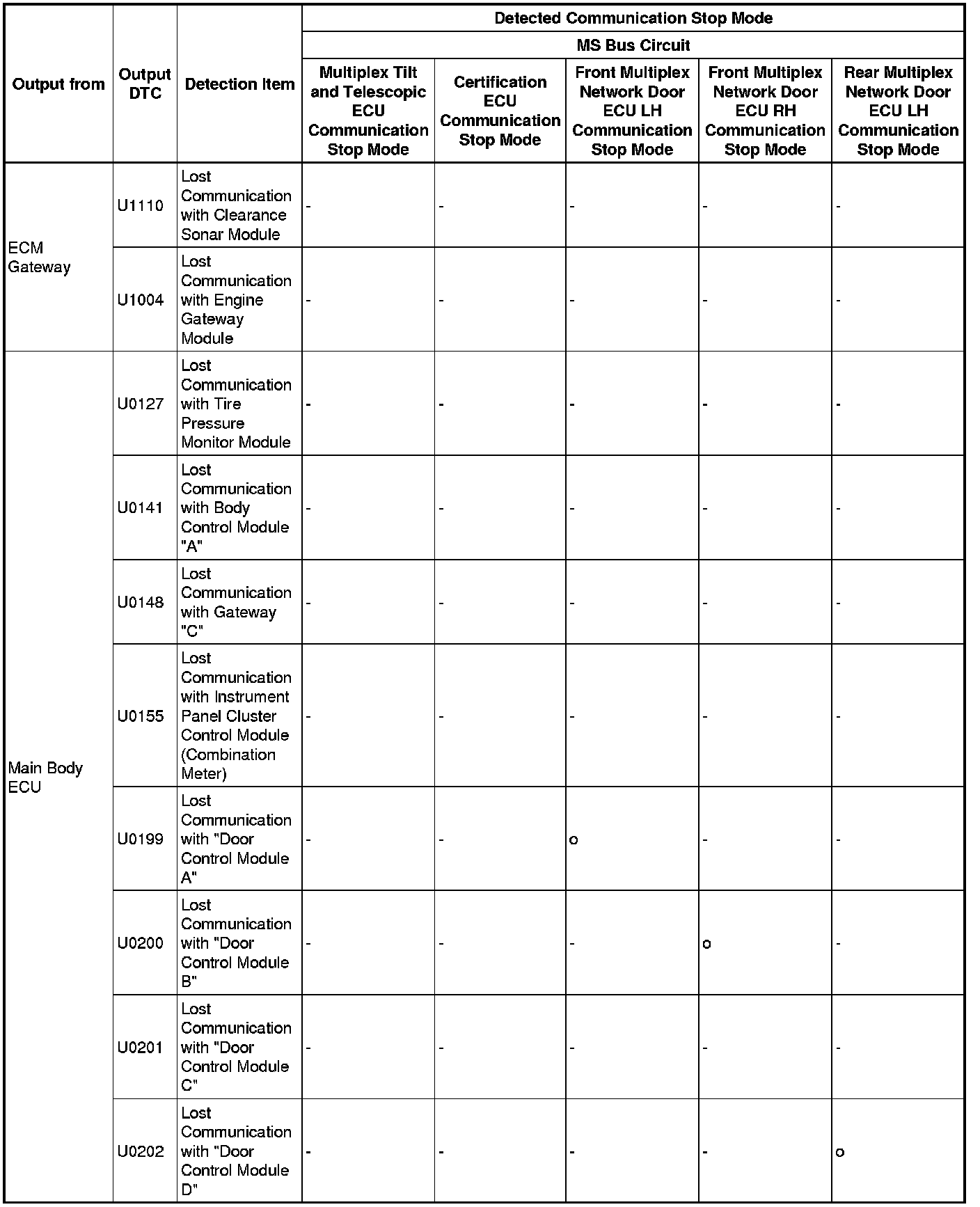

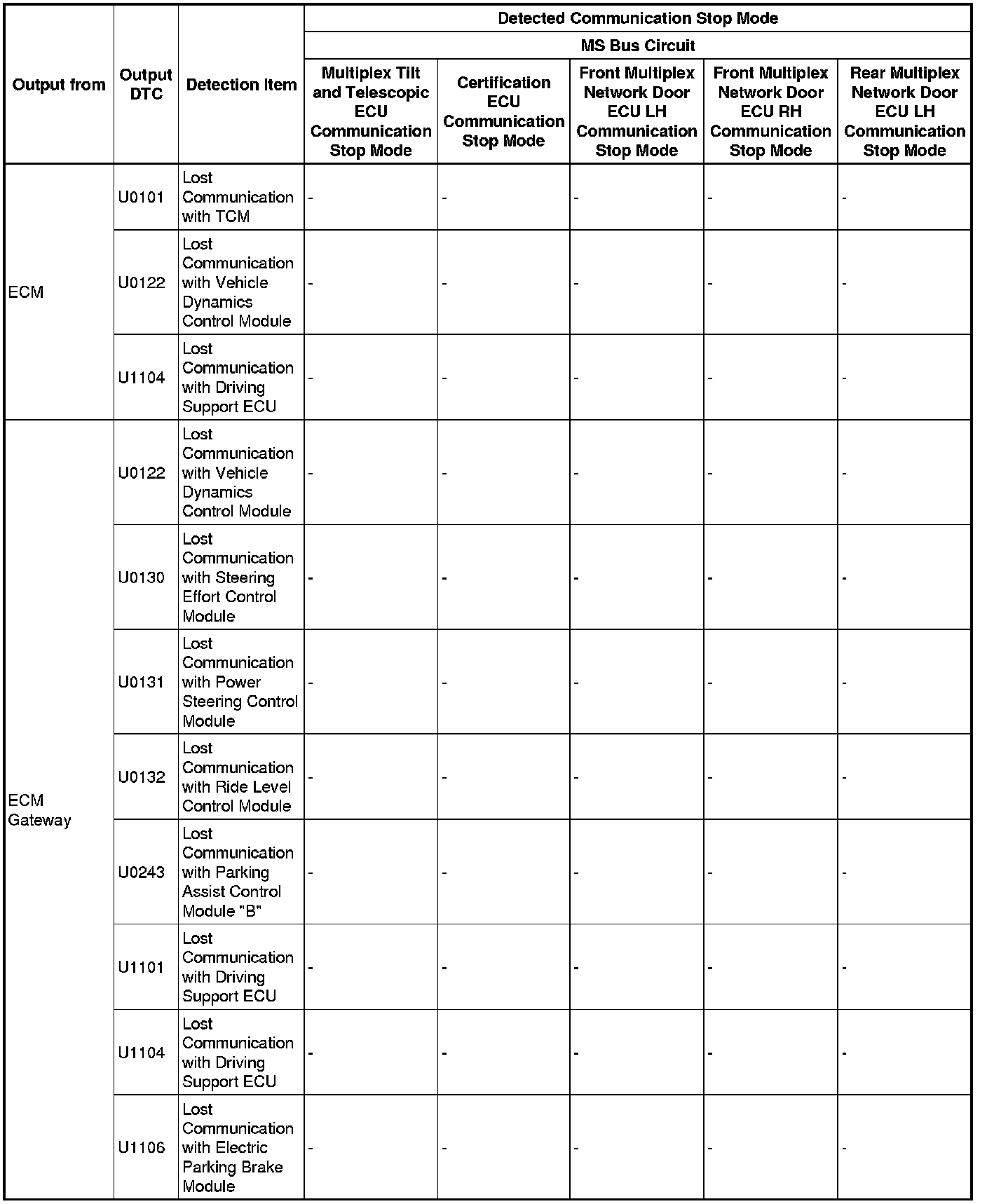

HINT:
- o: Output.
- X: When one side of branch wire is open, output may occur.
- *1: Only output when communication recovery has occurred. During communication stop, cannot be output.
- *3: During dynamic radar cruise control and pre-collision system control.
- *5: Only present DTCs output.

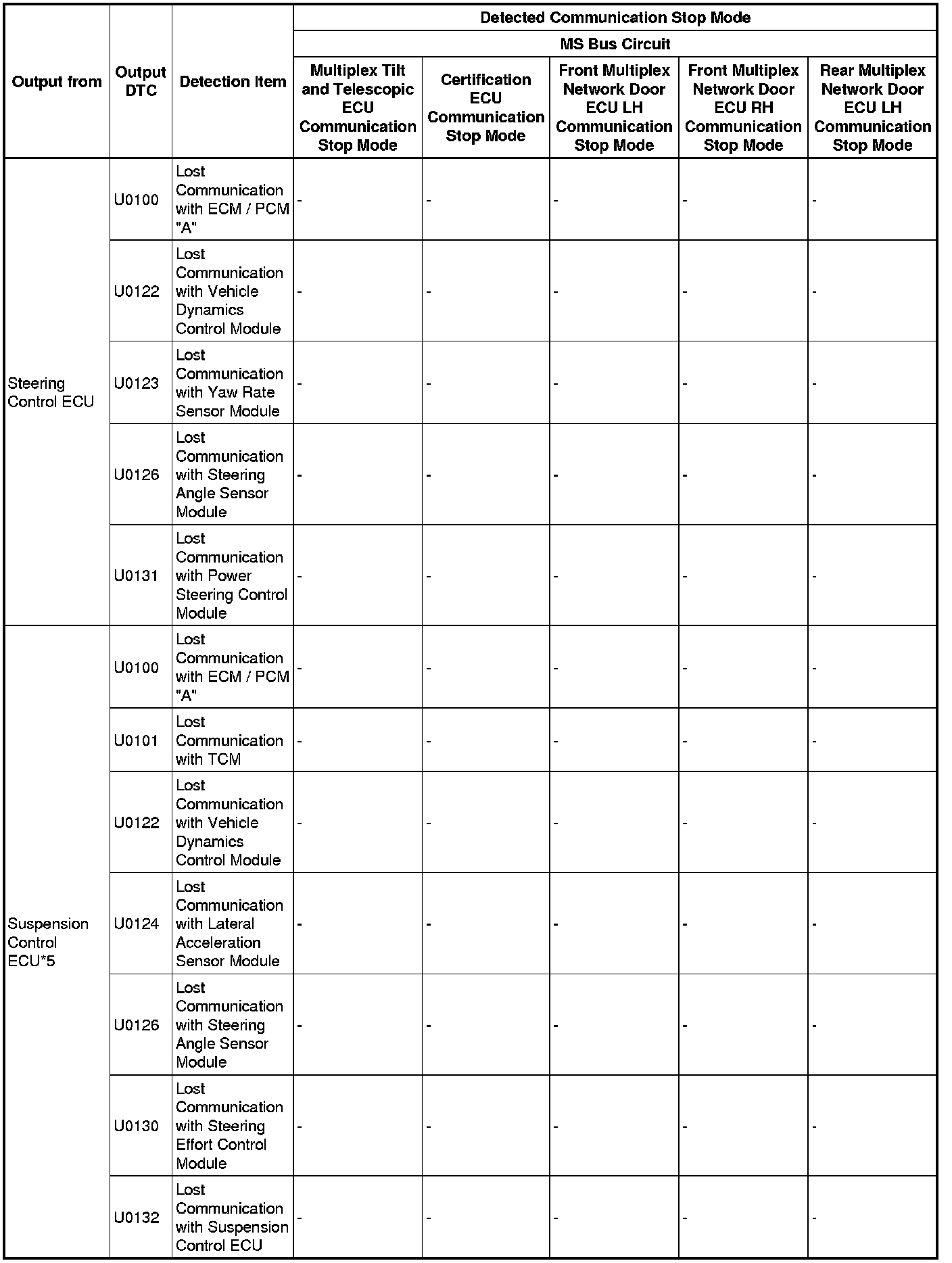

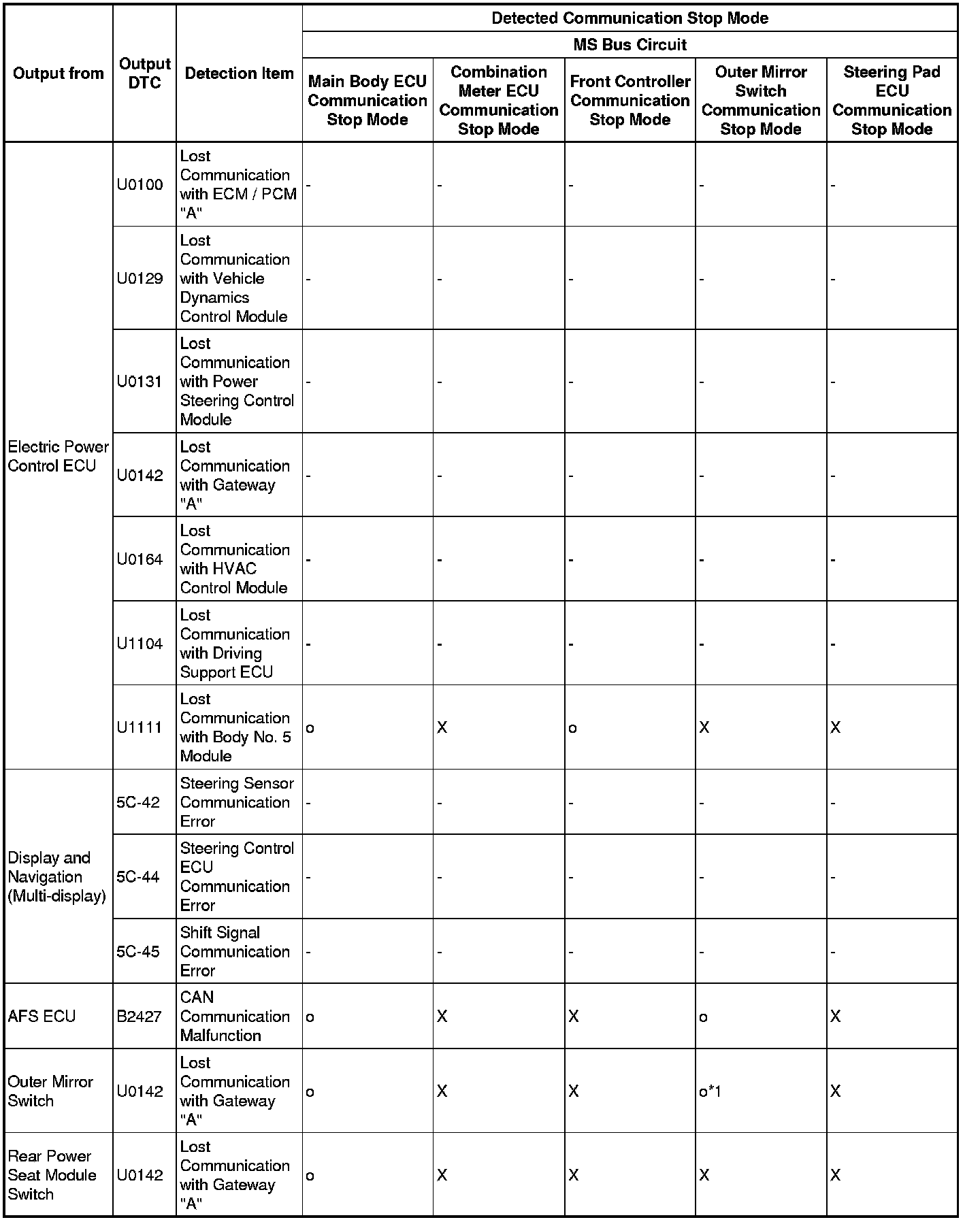

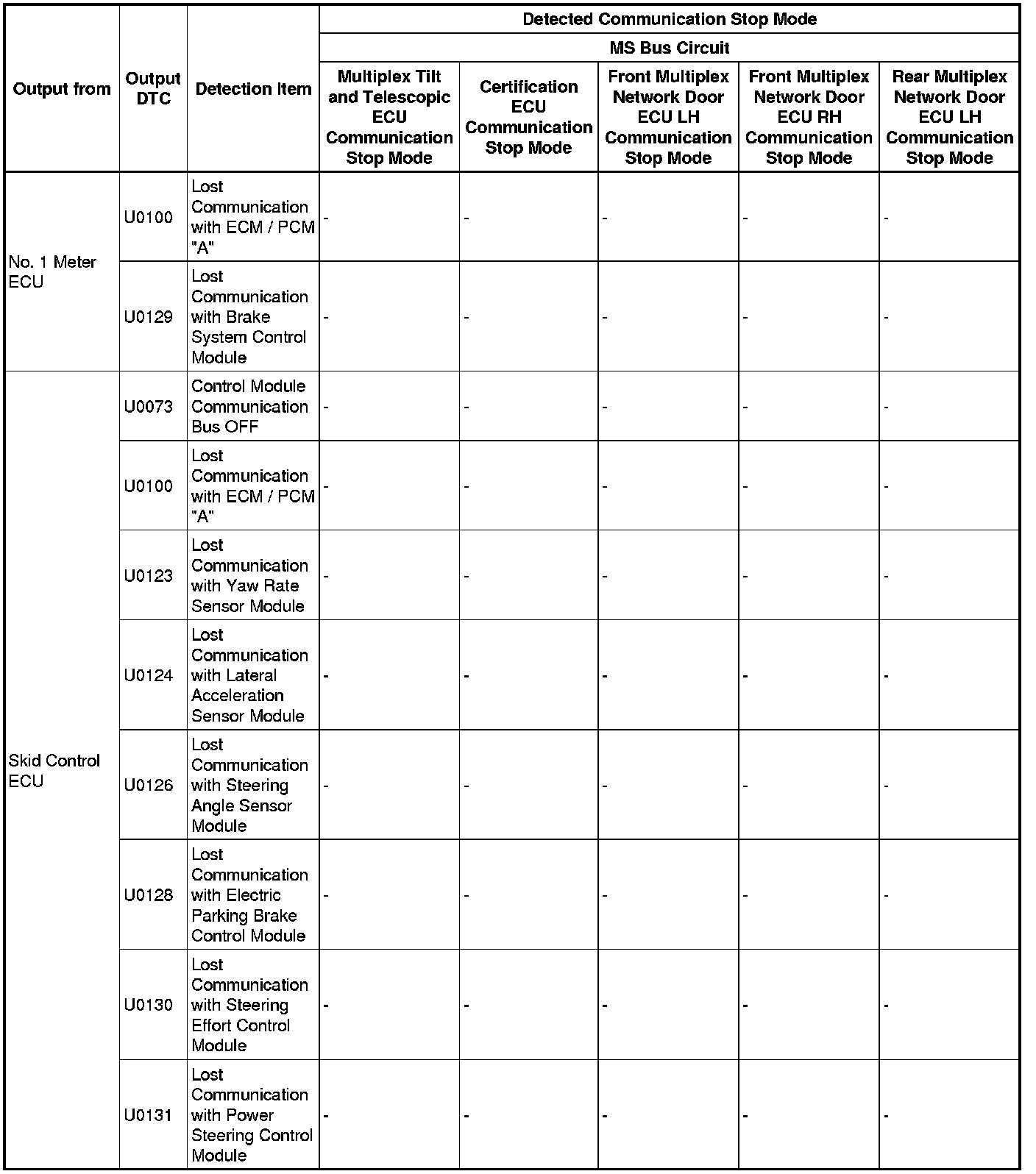

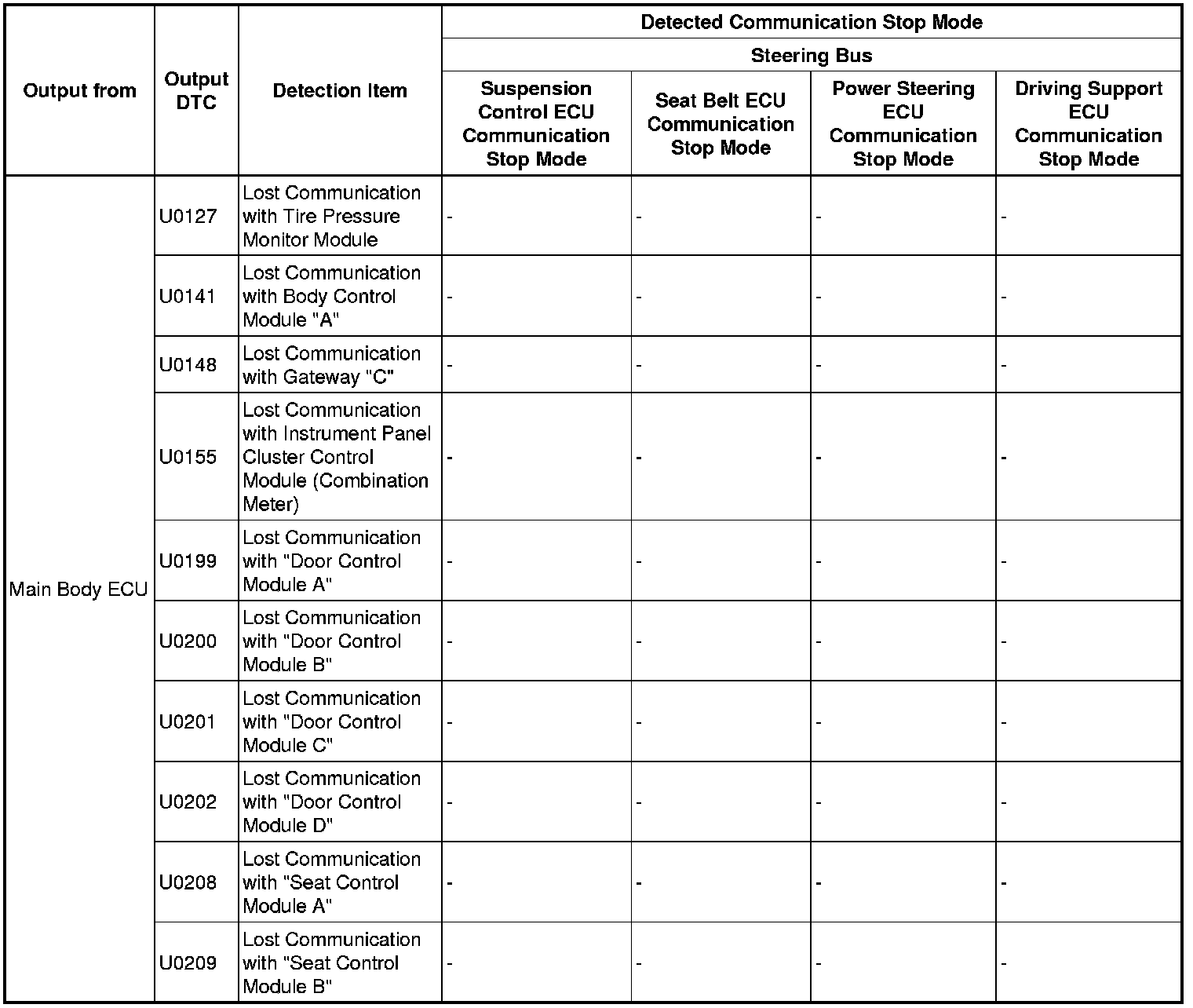

HINT:
- o: Output.
- X: When one side of branch wire is open, output may occur.
- *1: Only output when communication recovery has occurred. During communication stop, cannot be output.
- *5: Only present DTCs output.

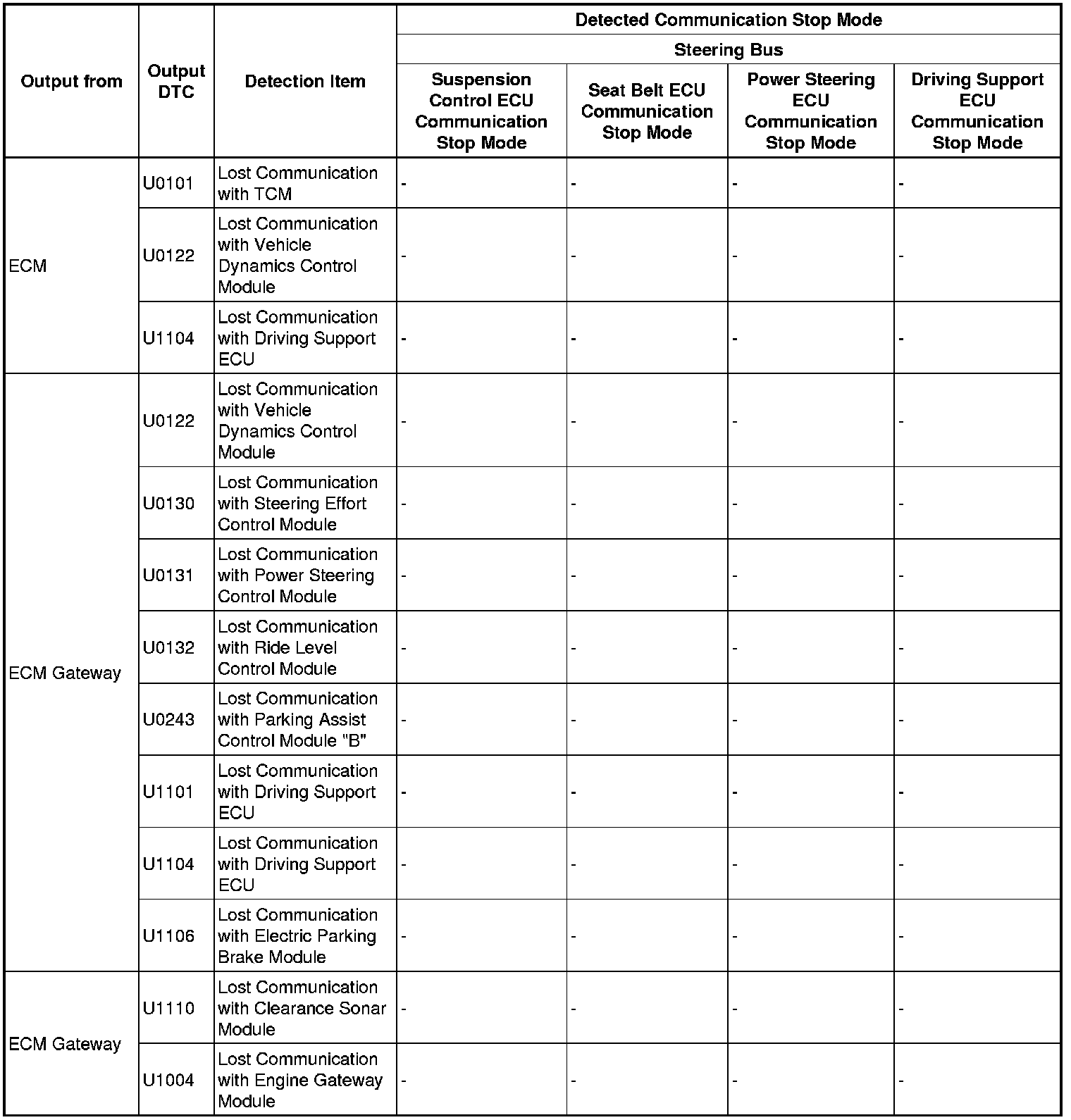

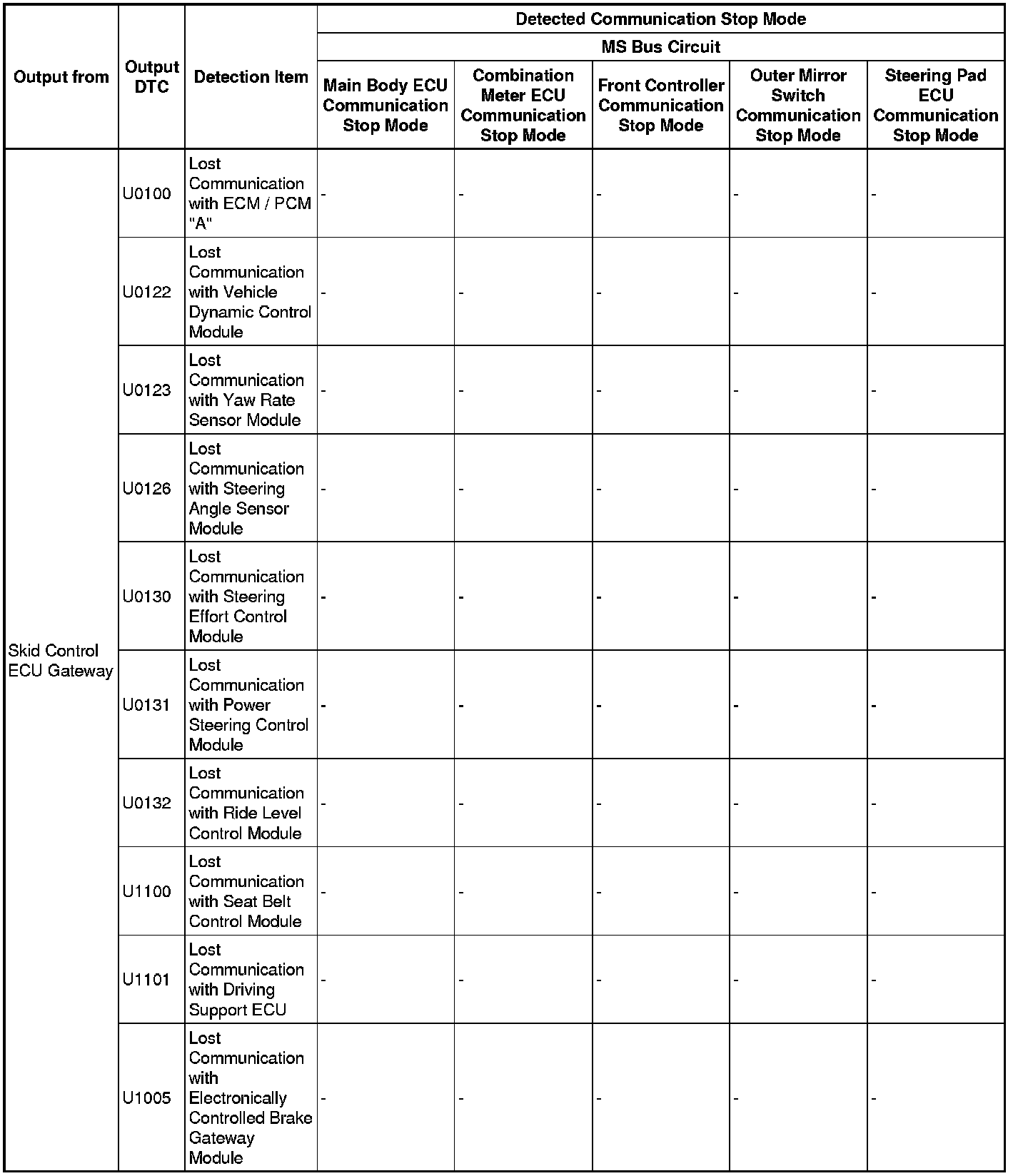

HINT:
- o: Output.
- X: When one side of branch wire is open, output may occur.
- *1: Only output when communication recovery has occurred. During communication stop, cannot be output.
- *5: Only present DTCs output.

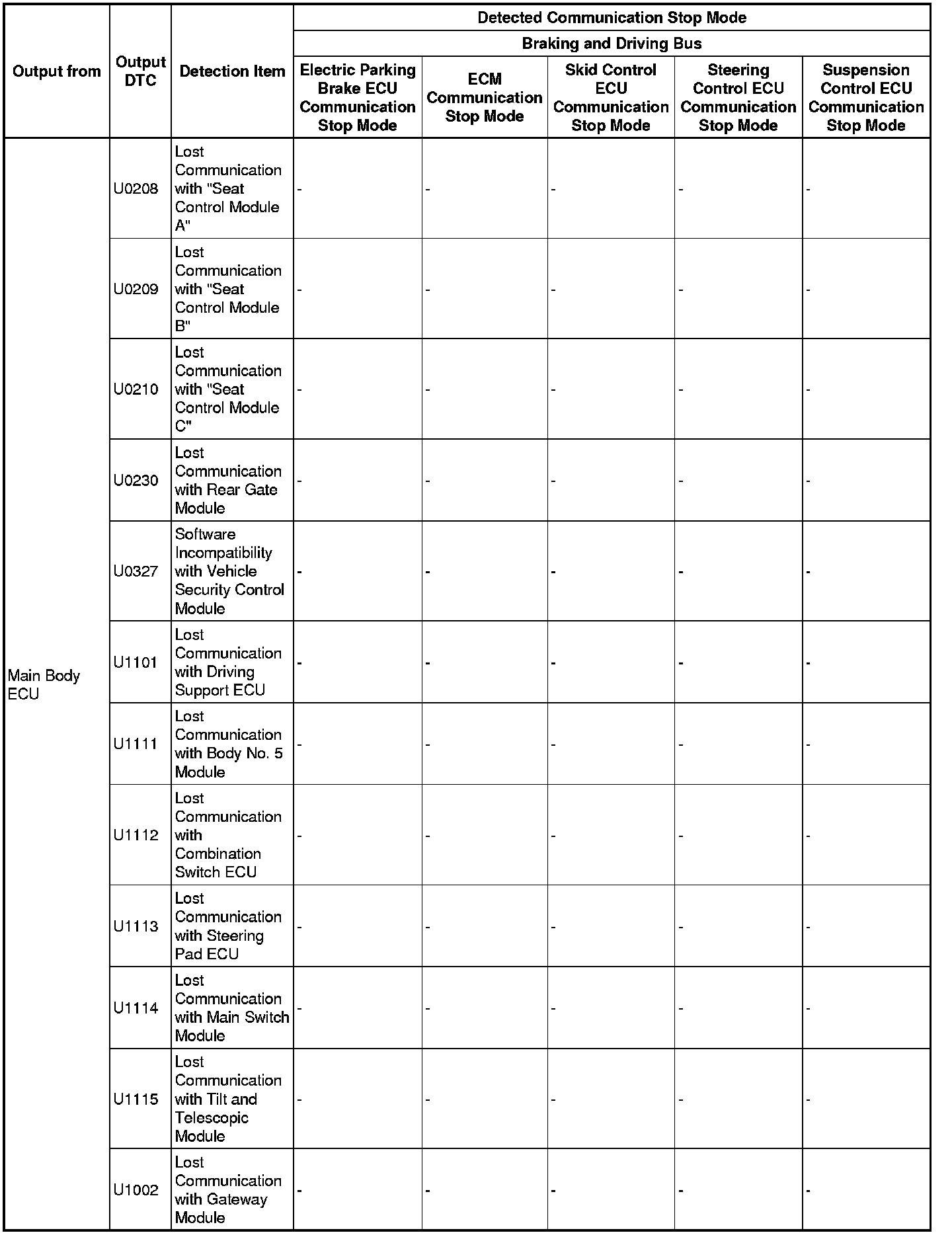

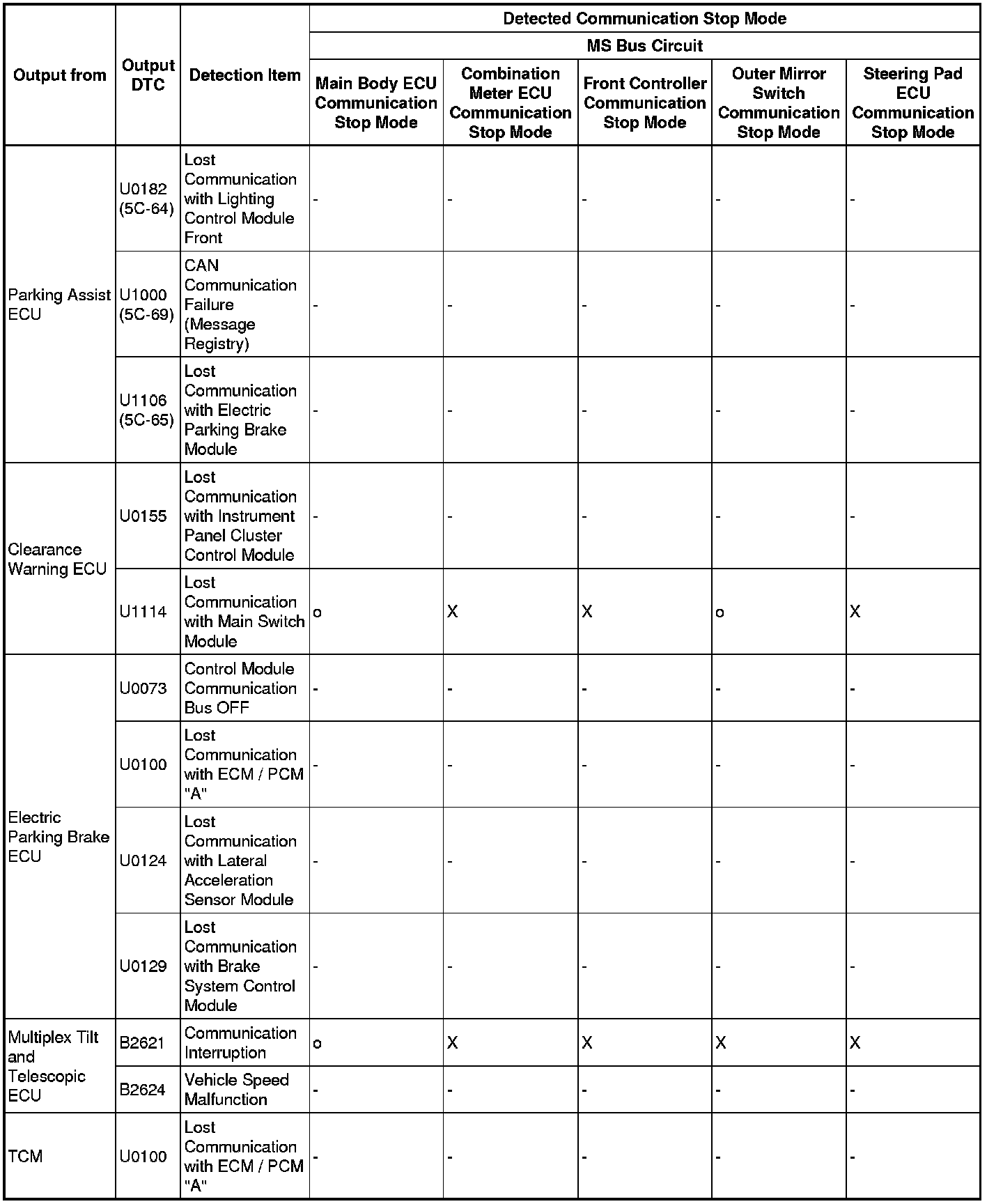

HINT:
- o: Output.
- X: When one side of branch wire is open, output may occur.
- *1: Only output when communication recovery has occurred. During communication stop, cannot be output.
- *5: Only present DTCs output.
