Power and Ground Distribution
>>
Multiple Junction Connector
>>
Locations
>>

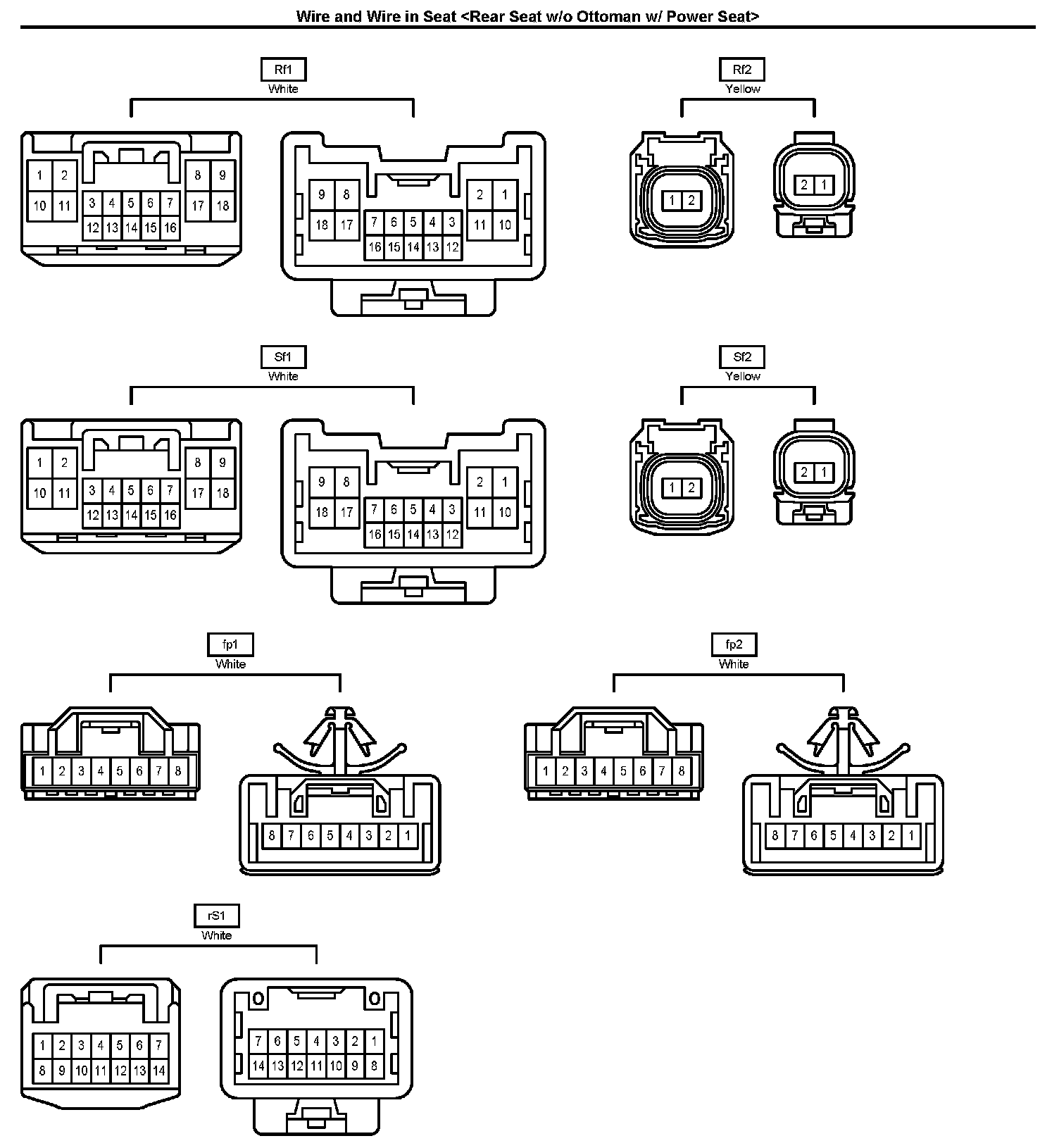

Wire and Wire In Seat [Rear Seat w/o Ottoman w/ Power Seat]

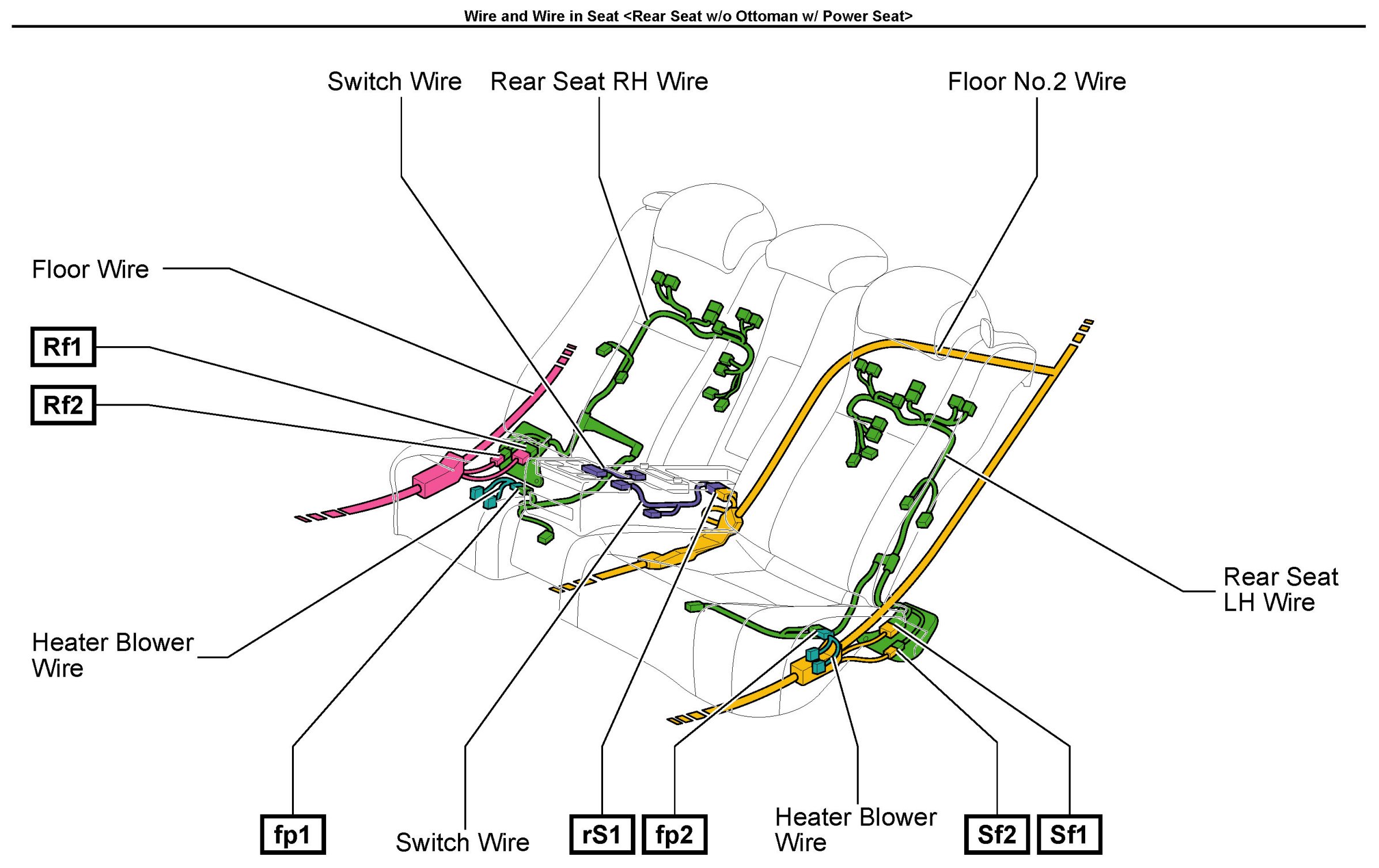

Wire and Wire In Seat [Rear Seat w/o Ottoman w/ Power Seat]
fp1-Sf2:
fp1-Sf2:
