Vanity Light (for Rear)

LIGHTING: VANITY LIGHT (for Rear): INSPECTION

INSPECTION

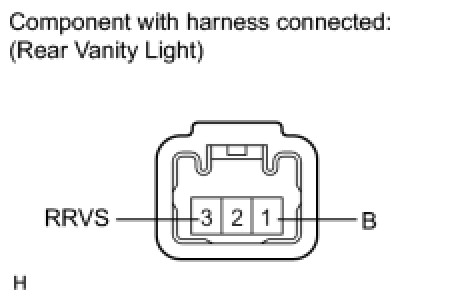

1. INSPECT REAR VANITY LIGHT ASSEMBLY

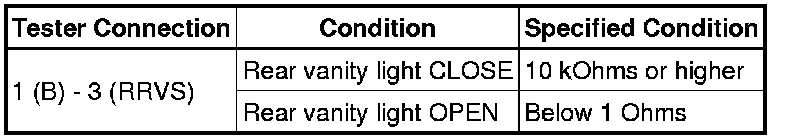

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:
Rear right side





Rear left side





If the result is not as specified, replace the rear vanity light.
