Vanity Light (for Front)








LIGHTING: VANITY LIGHT (for Front): INSPECTION

INSPECTION

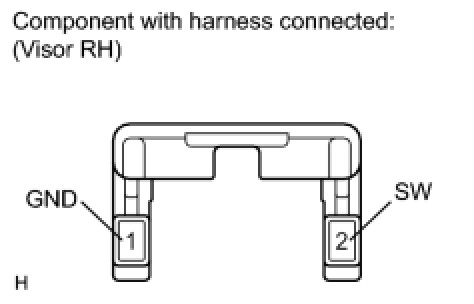

1. INSPECT VISOR ASSEMBLY RH

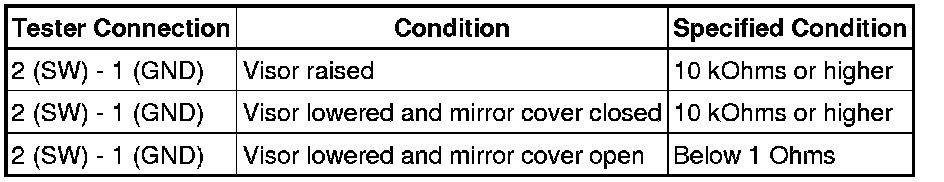

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:
