Problem Symptoms Table
LIGHTING: LIGHTING SYSTEM: PROBLEM SYMPTOMS TABLE
PROBLEM SYMPTOMS TABLE
HINT:
- Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
- Inspect the fuse and relay related to this system before inspecting the suspected areas below.
- Problem symptoms may occur if the electric power control system's functions malfunction. Follow the HOW TO PROCEED WITH TROUBLESHOOTING procedures.

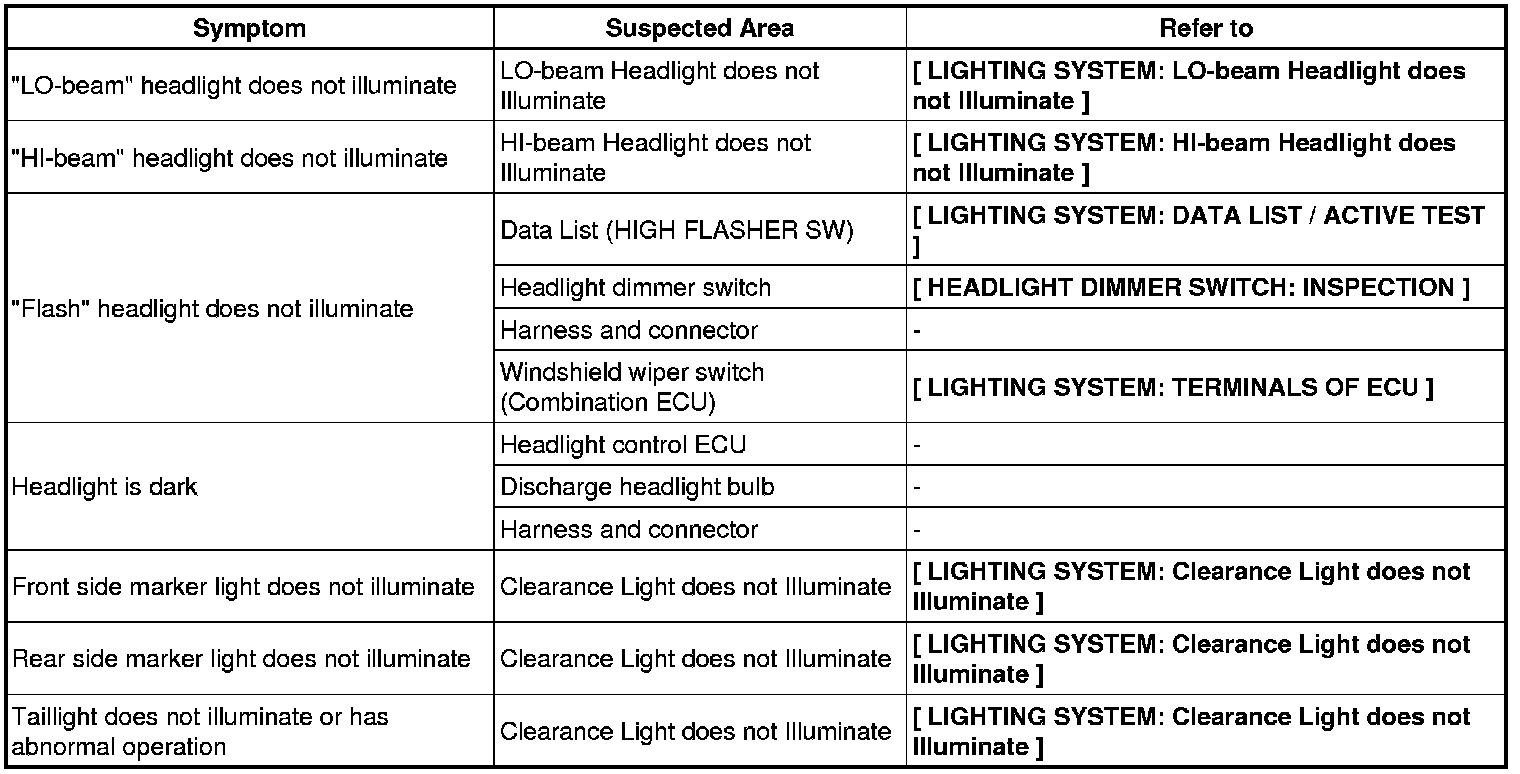

Headlight and taillight system

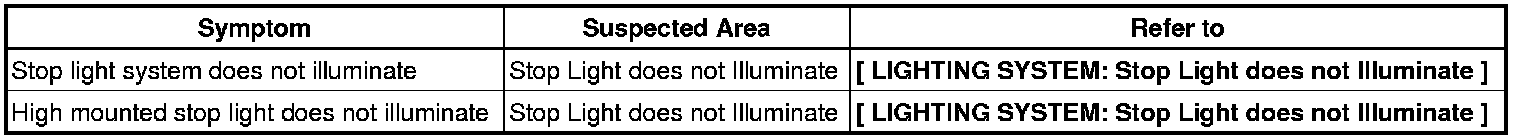

Stop light system
Front fog light system

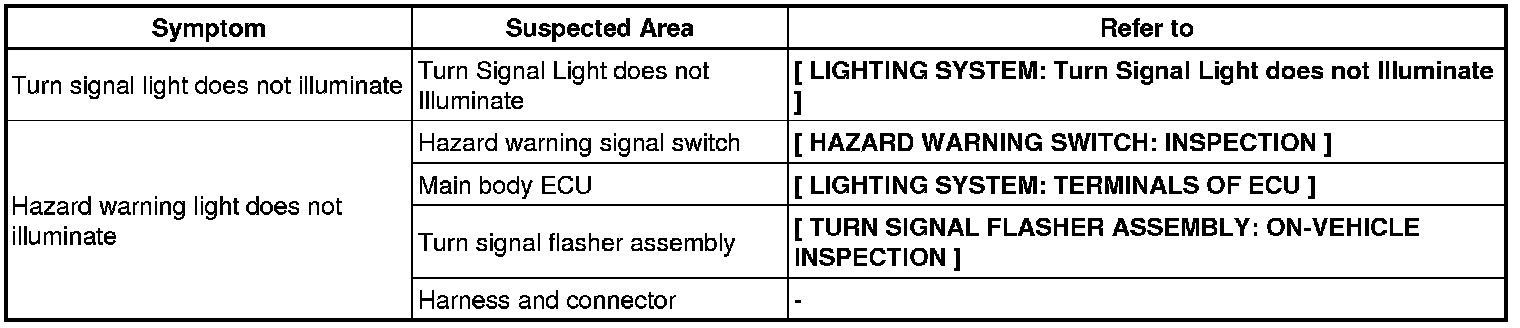

Turn signal light system

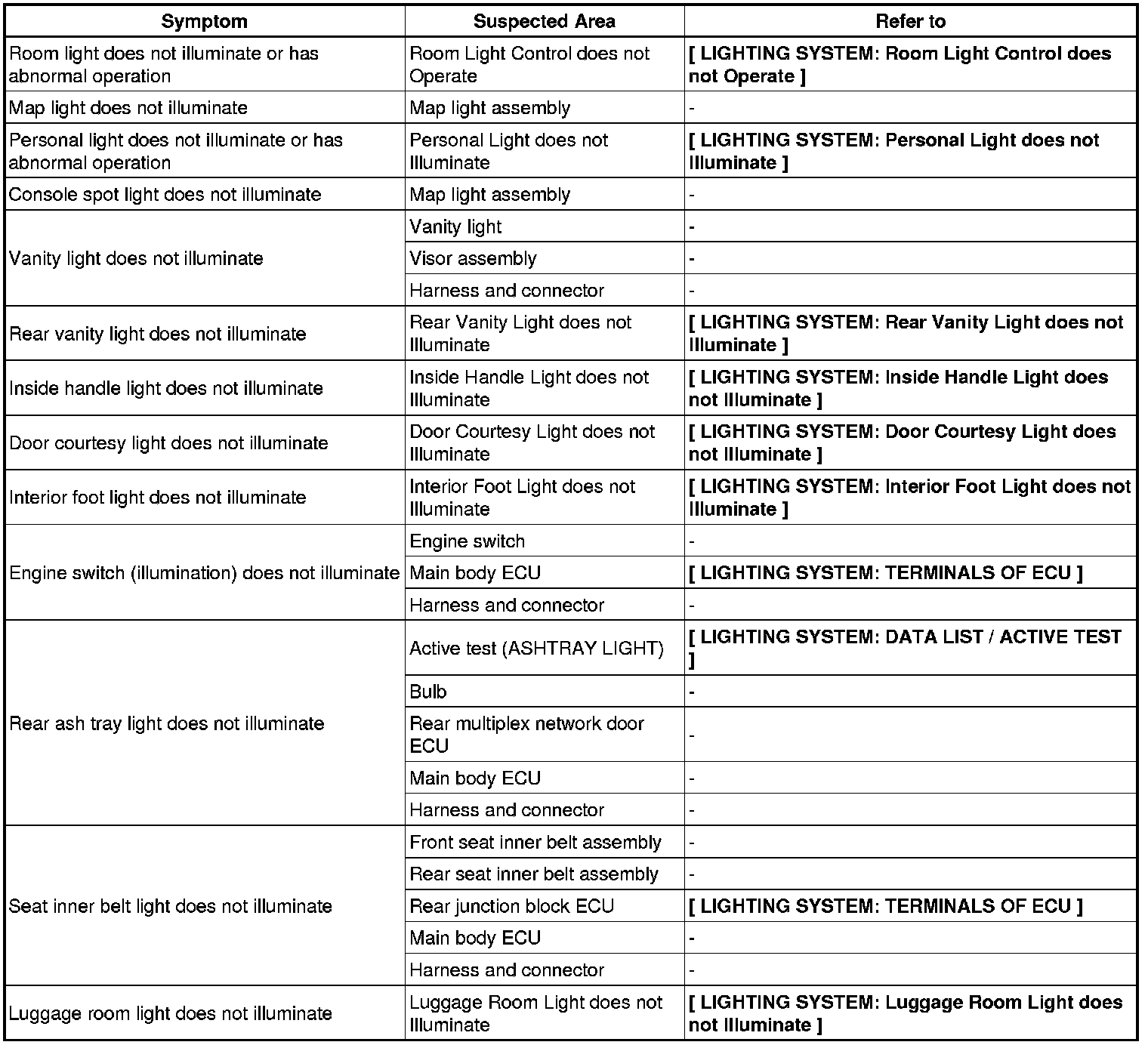

Interior light system
Automatic light control system
Light auto turn off system

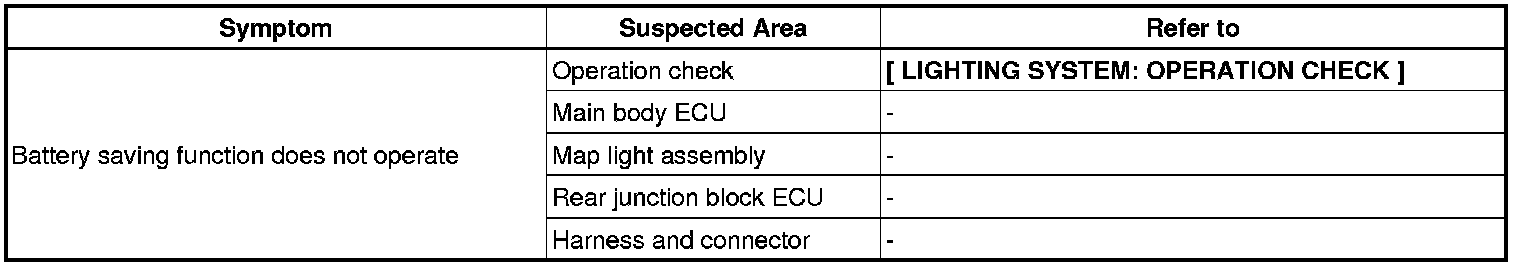

Battery saving system

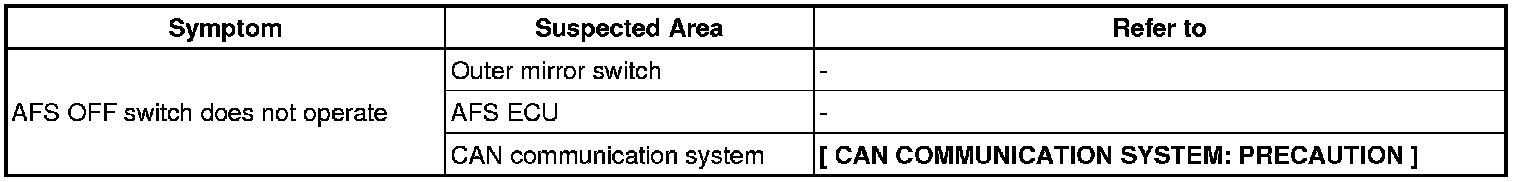

AFS

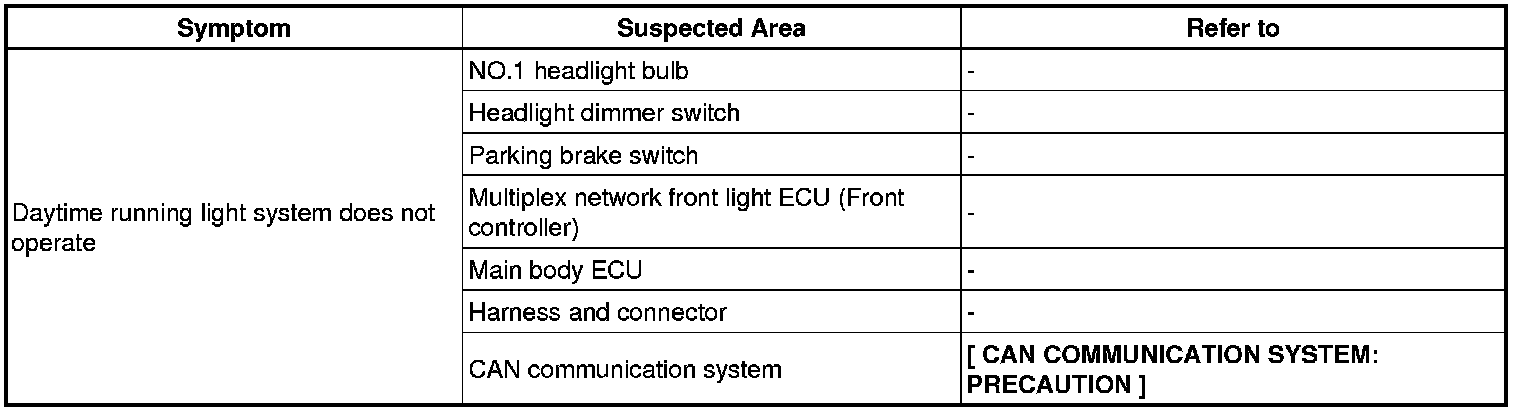

Daytime running light system

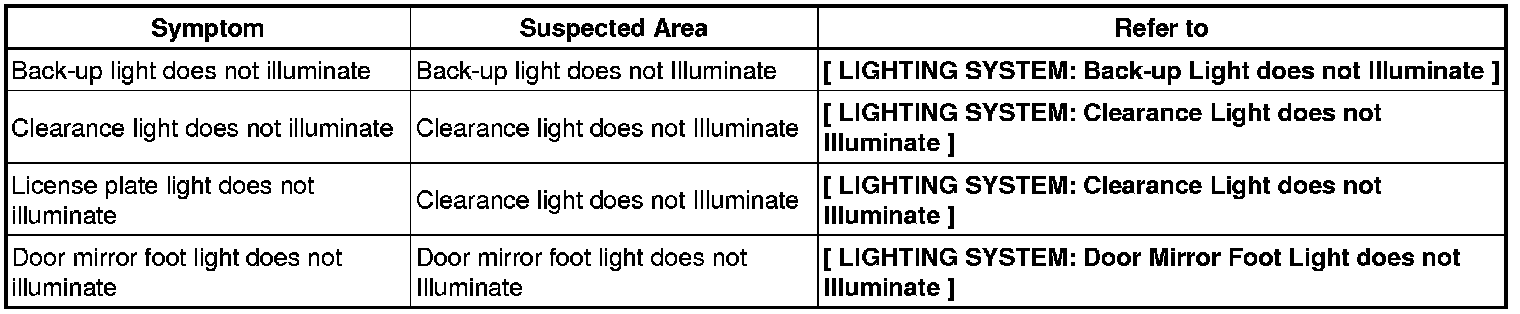

Other
