LIGHTING: HIGH INTENSITY DISCHARGE HEADLIGHT BULB: REMOVAL

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE FRONT FENDER WHEEL OPENING MOULDING LH
4. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH Removal
5. REMOVE FRONT FENDER LINER LH





(a) Remove the 7 screws and 5 clips on the front side of the front fender liner LH, and bend the front fender liner LH.
6. REMOVE DISCHARGE HEADLIGHT BULB

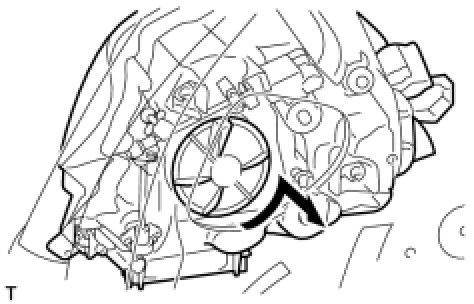

(a) Turn the back cover in the direction indicated by the arrow and remove it.

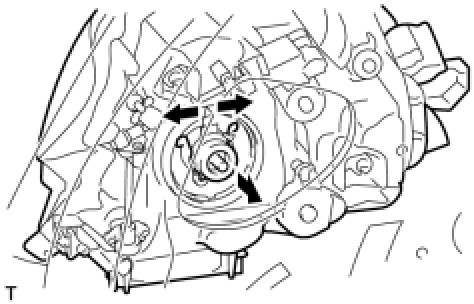

(b) Turn the headlight control ECU in the direction indicated by the arrow and remove the socket.

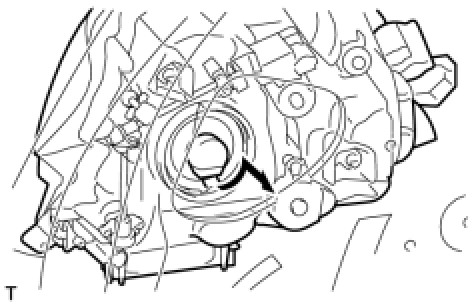

(c) Release the set spring lock as shown in the illustration and remove the discharge headlight bulb.
NOTE:
Do not touch the glass part of the bulb.
