LIGHTING: HIGH INTENSITY DISCHARGE HEADLIGHT BULB: INSTALLATION

INSTALLATION

1. INSTALL DISCHARGE HEADLIGHT BULB
(a) Lock the set spring and install the discharge headlight bulb.
NOTE:
Do not touch the glass part of the bulb.

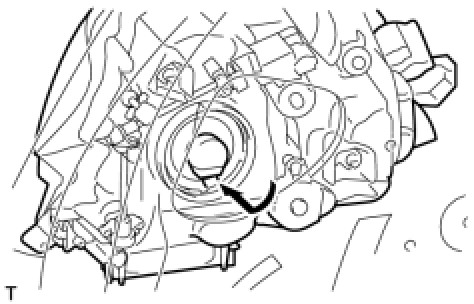

(b) Turn the headlight control ECU in the direction indicated by the arrow and install the socket.
NOTE:
Install the socket so that the wire harness is pointed downwards.

(c) Turn the back cover in the direction indicated by the arrow and install it.
2. INSTALL FRONT FENDER LINER LH





(a) Install the front fender liner LH with the 7 screws and 5 clips.
3. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH Installation
4. INSTALL FRONT FENDER WHEEL OPENING MOULDING LH
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
7. PERFORM INITIALIZATION
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
