Dome Lamp: Testing and Inspection

LIGHTING: REAR ROOM LIGHT ASSEMBLY: INSPECTION

INSPECTION

1. INSPECT SPOT LIGHT ASSEMBLY





(a) LED illumination inspection

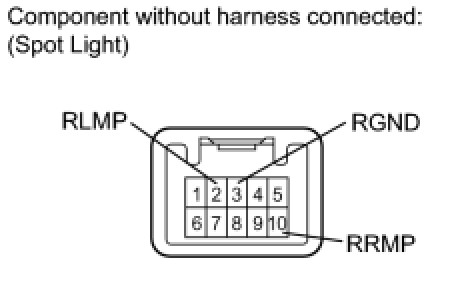

(1) Apply battery voltage to the terminals of the connector, and check the LED illumination condition.

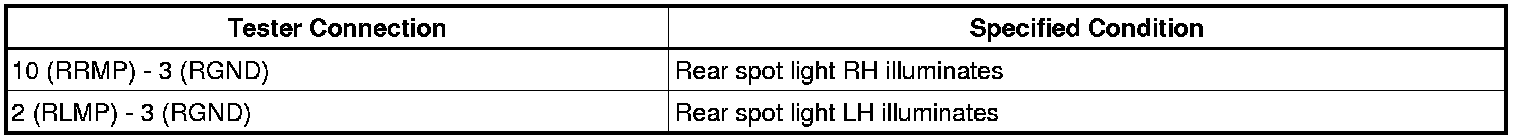

OK:

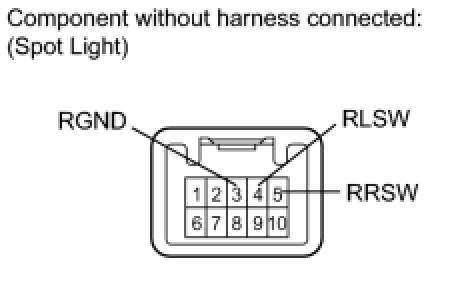

(b) Measure the resistance according to the value(s) in the table below.

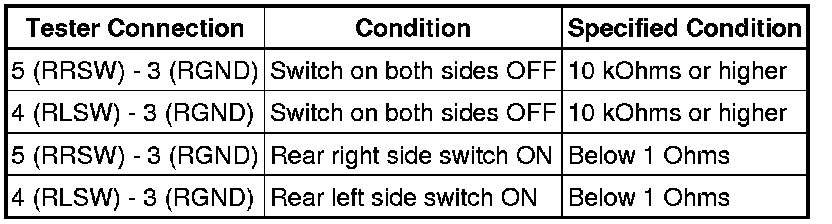

Standard resistance:
