Inside Handle Light








LIGHTING: INSIDE HANDLE LIGHT: INSPECTION

INSPECTION

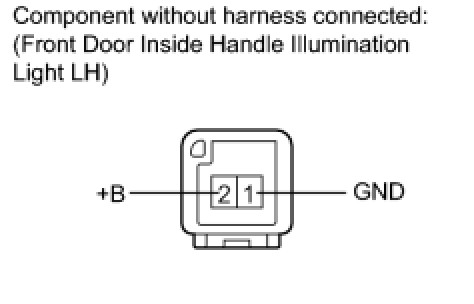

1. INSPECT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH





(a) Apply battery voltage to the terminals of the connector, and check the LED illumination condition.
OK:

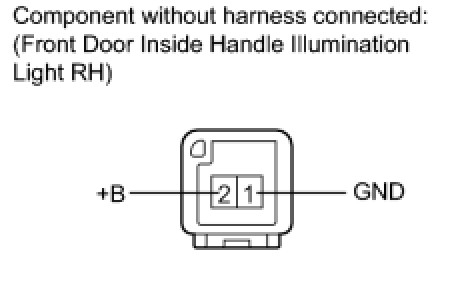

2. INSPECT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY RH





(a) Apply battery voltage to the terminals of the connector, and check the LED illumination condition.
OK:






3. INSPECT REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH





(a) Apply battery voltage to the terminals of the connector, and check the LED illumination condition.
OK:






4. INSPECT REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY RH





(a) Apply battery voltage to the terminals of the connector, and check the LED illumination condition.
OK:
