Footwell Light








LIGHTING: FOOTWELL LIGHT: INSPECTION

INSPECTION

1. INSPECT NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH





(a) Apply battery voltage to the terminals of the connector, and check the LED illumination condition.
OK:

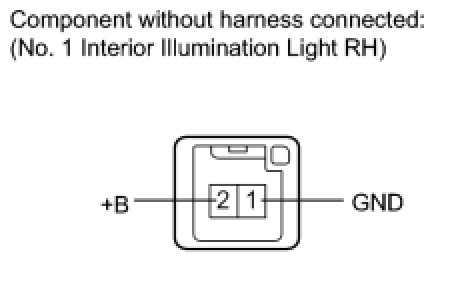

2. INSPECT NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY RH





(a) Apply battery voltage to the terminals of the connector, and check the LED illumination condition.
OK:

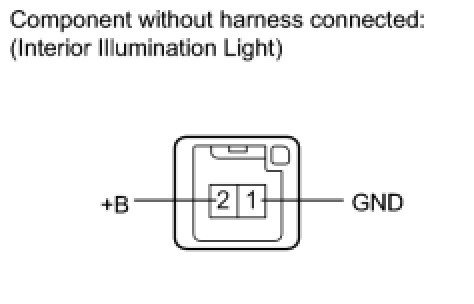

3. INSPECT INTERIOR ILLUMINATION LIGHT SUB-ASSEMBLY





(a) Apply battery voltage to the terminals of the connector, and check the LED illumination condition.
OK:
