LIGHTING: INSIDE HANDLE LIGHT: INSTALLATION

INSTALLATION

1. INSTALL REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH





(a) Connect the connector.
2. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH [1][2]Installation
3. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH (W/ Rear Door Sunshade) [1][2]Installation
4. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY [1][2]Installation
5. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG LH [1][2]Installation
6. INSTALL FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH





(a) Connect the connector.

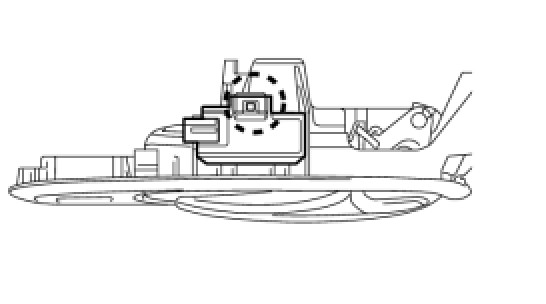

(b) Attach the claw to install the light.
7. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH [1][2]Installation
8. INSTALL FRONT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY LH [1][2]Installation
9. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH [1][2]Installation
