Installation

LIGHTING: FOOTWELL LIGHT: INSTALLATION

INSTALLATION

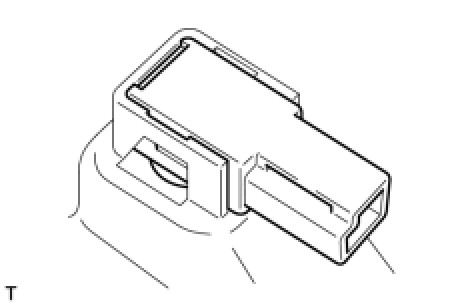

1. INSTALL INTERIOR ILLUMINATION LIGHT SUB-ASSEMBLY





(a) Install the interior illumination light with the screw.

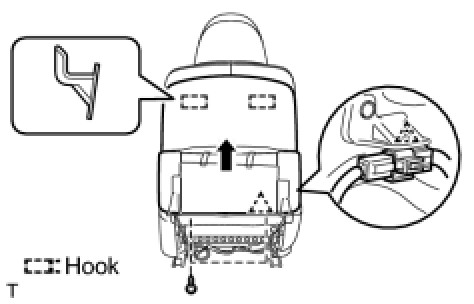

2. INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY LH





(a) Attach the 2 hooks and install the seatback board.
(b) Connect the interior illumination light wire harness connector.
(c) Install the interior illumination light wire harness clamp.
(d) Install the 2 screws.





3. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY RH
(a) Attach the 2 hooks and install the interior illumination light.
4. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation





5. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH
(a) Attach the 2 hooks and install the interior illumination light.
6. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
