Removal

LIGHTING: CONSOLE BOX LIGHT: REMOVAL

REMOVAL

1. REMOVE SPOT LIGHT LENS





(a) Using a screwdriver, detach the 4 claws and remove the spot light lens.
HINT: Tape the screwdriver tip before use.

2. REMOVE ROOF CONSOLE BOX ASSEMBLY Removal

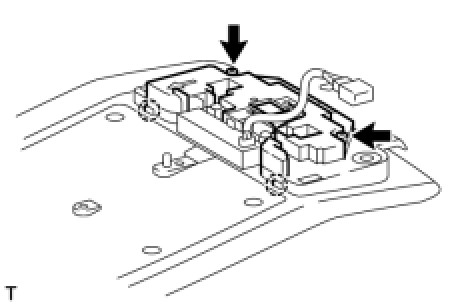

3. REMOVE CONSOLE BOX LIGHT





(a) Remove the 2 screws.
(b) Detach the 2 claws and remove the console box light.
