Center Mounted Brake Lamp: Testing and Inspection

LIGHTING: HIGH MOUNTED STOP LIGHT ASSEMBLY: INSPECTION

INSPECTION

1. INSPECT CENTER STOP LIGHT ASSEMBLY

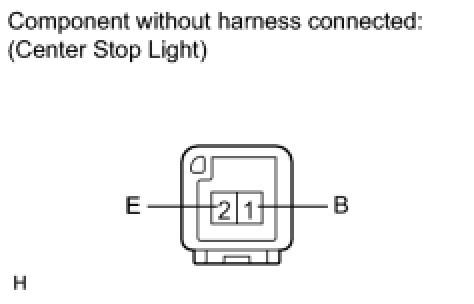

(a) Apply battery voltage to the terminals of the connector, and check the LED illumination condition.
OK:
