Reassembly

METER: COMBINATION METER: REASSEMBLY

REASSEMBLY

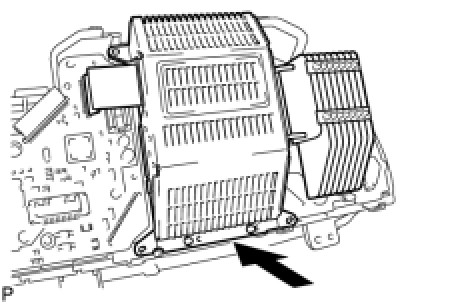

1. INSTALL METER DISPLAY PANEL





(a) Temporarily install the meter ECU.
(b) Attach the 6 claws to connect each wire harness.

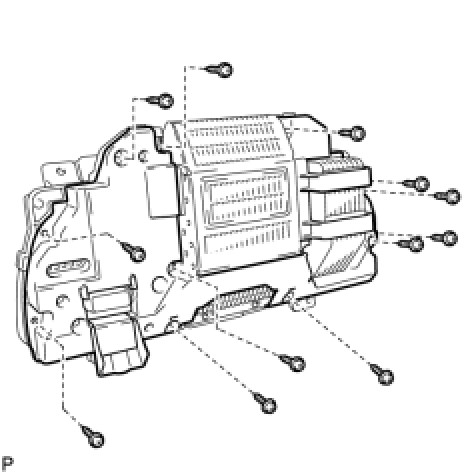

2. INSTALL COMBINATION METER COVER





(a) Install the meter cover with the 12 screws.

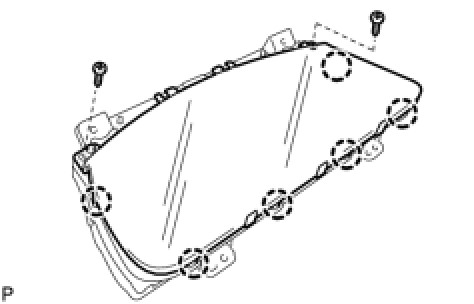

3. INSTALL COMBINATION METER GLASS





(a) Attach the 6 claws to install the meter glass.
(b) Install the 2 screws.

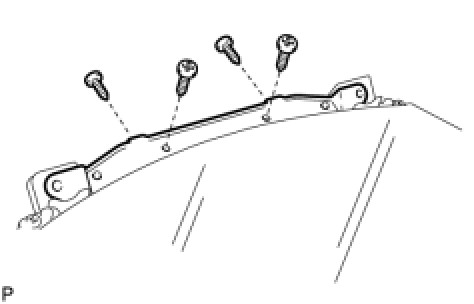

4. INSTALL NO. 1 COMBINATION METER BRACKET





(a) Install the bracket with the 4 screws.
