Clock: Adjustments

OTHER SYSTEM: CLOCK SYSTEM (W/ Multi-display): ADJUSTMENT

ADJUSTMENT

1. START ADJUSTMENT

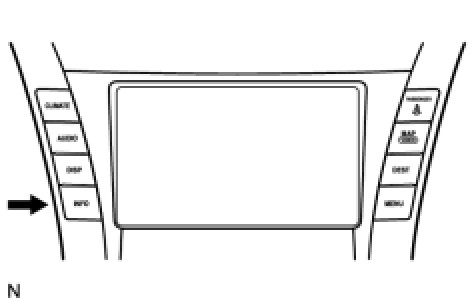

(a) Press "INFO".

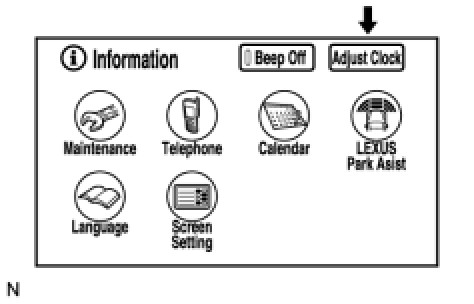

(b) Press "Adjust Clock".

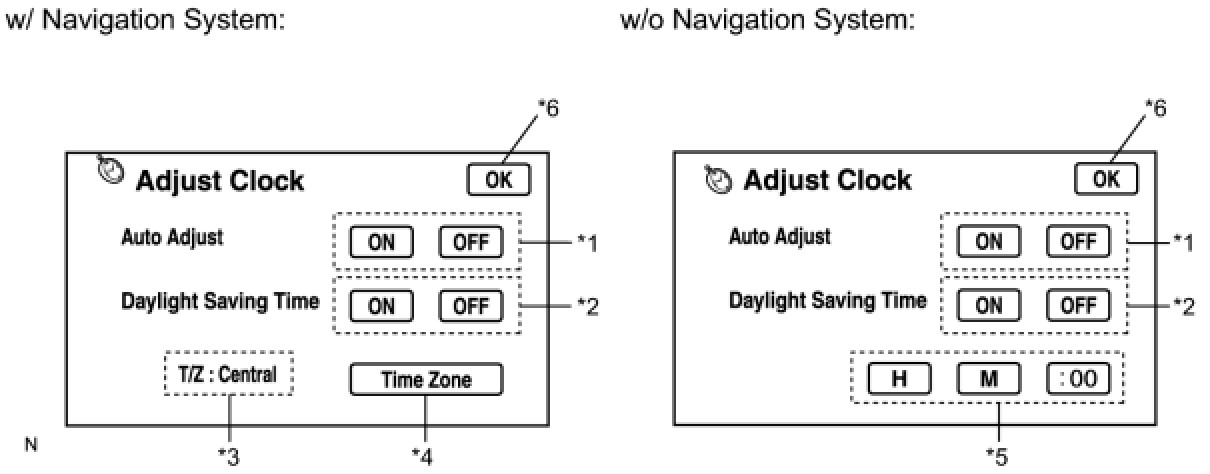

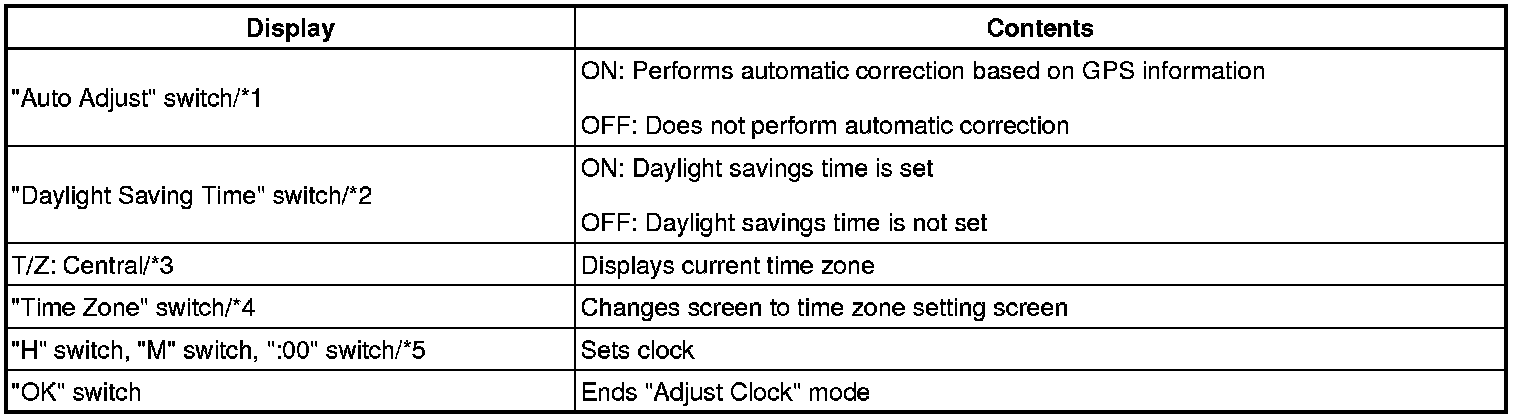

2. SCREEN DESCRIPTION





Screen Display





3. ADJUST CLOCK (W/ Navigation System)

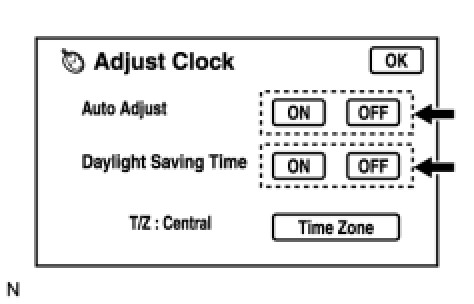

(a) When planning to use GPS correction, press the "Auto Adjust" "ON" switch.
(b) When planning to use daylight saving time, press the "Daylight Saving Time" "ON" switch.

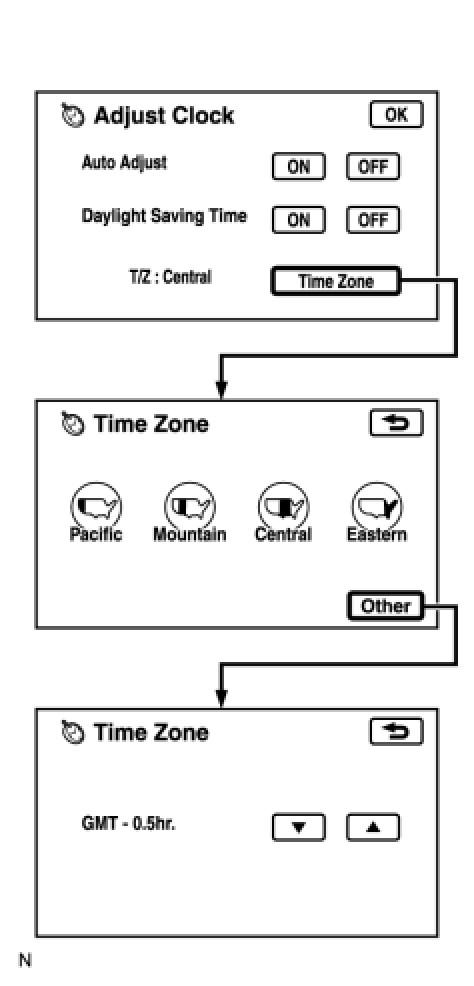

(c) Set time zone




(1) Press "Time Zone".
(2) Select a time zone.
(3) Press "Other" to set a customized time zone.
HINT:
- To set a time ahead of GMT, press "up". Each press of "up" sets the time 30 minutes ahead.
- To set a time behind GMT, press "down". Each press of "down" sets the time 30 minutes behind.

(d) After settings are complete, press "OK".
4. ADJUST CLOCK (W/O Navigation System)
HINT: When the navigation system is not available, "Auto Adjust" is "OFF" and cannot be set to "ON".

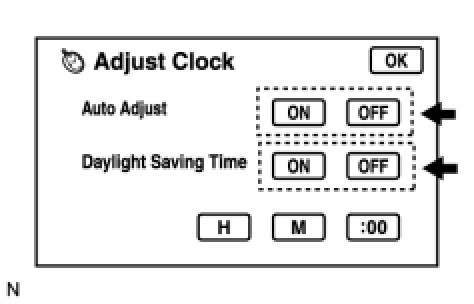

(a) When planning to use daylight saving time, press the "Daylight Saving Time" "ON" switch.





(b) To increase the hours, press "H". To increase the minutes, press "M".
(c) Press ".00" to set the time to the beginning of an hour.
HINT: When performed with the minutes at 0 to 29, the time is set backward, and with the minutes at 30 to 59, the time is set forward. For example, if the time is between 1:00 to 1:29, the time is set to 1:00, and if the time is between 1:30 to 1:59, the time is set to 2:00.

(d) After settings are complete, press "OK".
