Removal

OTHER SYSTEM: CIGARETTE LIGHTER (for Rear Side): REMOVAL

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY Removal





4. REMOVE CONSOLE BOX PLATE

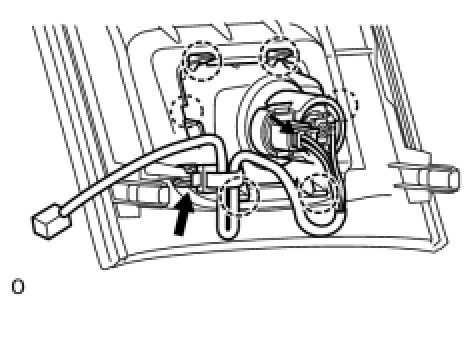

(a) Detach the clamp and disconnect the connector.
(b) Detach the 6 claws and remove the console box plate from the rear console end panel.





5. REMOVE REAR CIGARETTE LIGHTER COVER
(a) Remove the cigarette lighter cover.

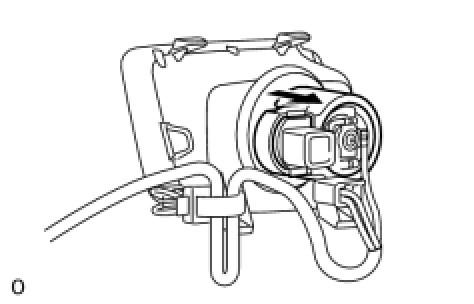

6. REMOVE REAR CIGARETTE LIGHTER ASSEMBLY
(a) Remove the cigarette lighter knob and element.

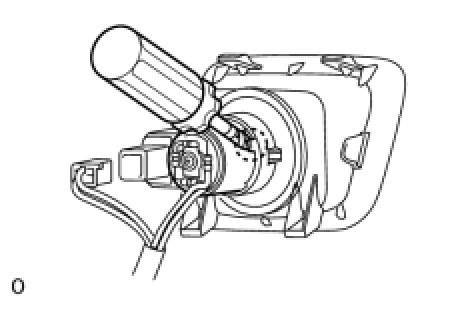

(b) Using a screwdriver, detach the claw and remove the socket cover from the console box plate.
HINT: Tape the screwdriver tip before use.

7. REMOVE REAR CIGARETTE LIGHTER BEZEL STAY
(a) Remove the cigarette lighter bezel stay.





8. REMOVE CIGARETTE LIGHTER HOLE BEZEL

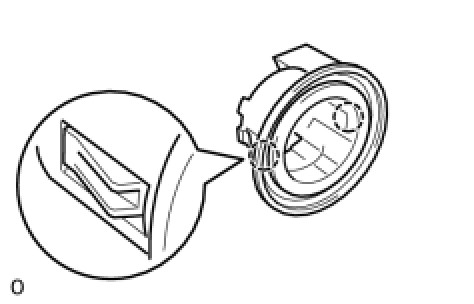

(a) Detach the 2 claws and cigarette lighter hole bezel from the cigarette lighter hole bezel stay.
