Installation

OTHER SYSTEM: CIGARETTE LIGHTER (for Rear Side): INSTALLATION

INSTALLATION





1. INSTALL CIGARETTE LIGHTER HOLE BEZEL
(a) Attach the 2 claws to install the cigarette lighter hole bezel.
2. INSTALL REAR CIGARETTE LIGHTER BEZEL STAY
(a) Install the cigarette lighter bezel stay.
3. INSTALL REAR CIGARETTE LIGHTER ASSEMBLY





(a) Attach the claw to install the cigarette lighter socket cover.

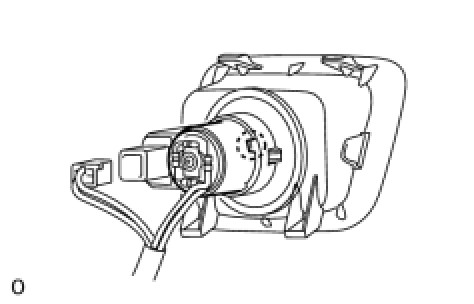

(b) Install the cigarette lighter knob and element.
(c) When replacing cigarette lighter assembly:

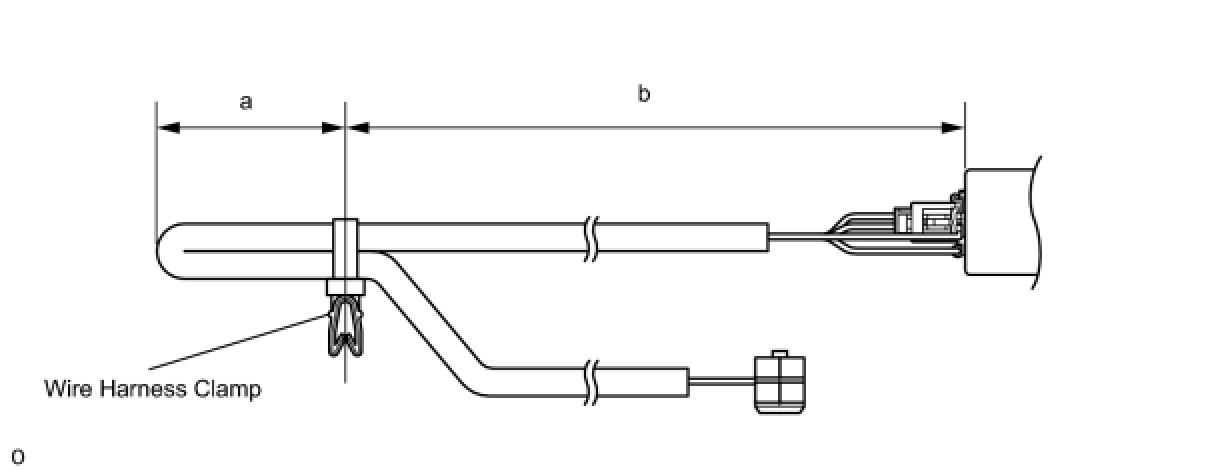

(1) Install a new wire harness clamp as shown in the illustration.

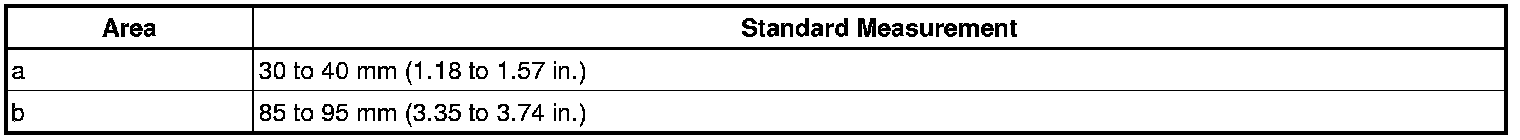

Standard:

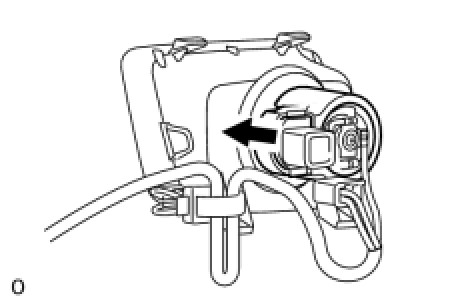

(2) Clamp the cord securely.

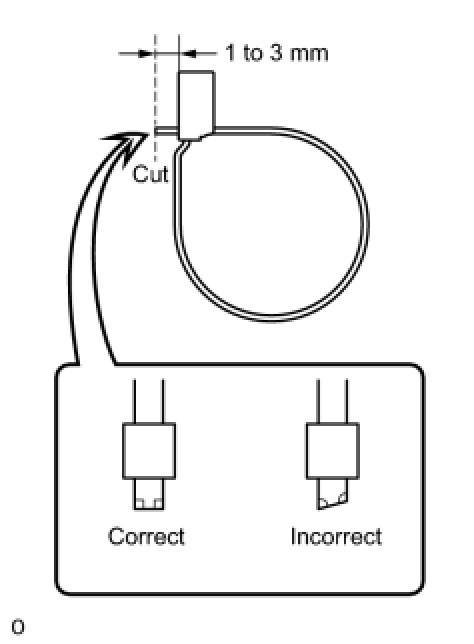

HINT: After clamping the cord, cut off any extra cord so that there is only 1 to 3 mm (0.04 to 0.12 in.) protruding.





4. INSTALL REAR CIGARETTE LIGHTER COVER
(a) Install the cigarette lighter cover.





5. INSTALL CONSOLE BOX PLATE
(a) Attach the 6 claws of the console box plate to the rear console end panel.
(b) Connect the connector and attach the clamp.
6. INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY Installation
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
9. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
