Removal

AIR CONDITIONING: ROOM TEMPERATURE SENSOR (for Front Side): REMOVAL

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE INSTRUMENT SIDE PANEL LH Removal
4. REMOVE NO. 1 INSTRUMENT CLUSTER MOULDING Removal
5. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Removal

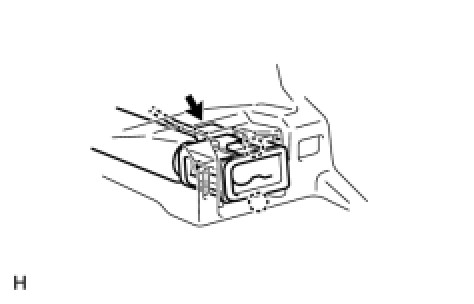

6. REMOVE ROOM TEMPERATURE SENSOR
(a) Disconnect the duct.
(b) Disconnect the connector.
(c) Detach the claws and remove the sensor.
