Installation
AIR CONDITIONING: AMBIENT TEMPERATURE SENSOR: INSTALLATION
INSTALLATION

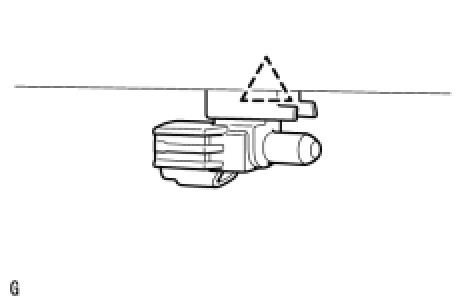

1. INSTALL AMBIENT TEMPERATURE SENSOR
(a) Attach the clamp to install the sensor.
(b) Connect the connector.
2. INSTALL FRONT BUMPER COVER
(a) Install the front bumper cover Installation.
3. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
6. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
