AIR CONDITIONING: INTEGRATION CONTROL AND PANEL (for Front Side): INSTALLATION

INSTALLATION





1. INSTALL NO. 1 RADIO BRACKET
(a) Install the bracket with the 2 bolts.





2. INSTALL NO. 2 RADIO BRACKET
(a) Install the bracket with the 2 bolts.
3. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY WITH BRACKET





(a) Connect the connectors.

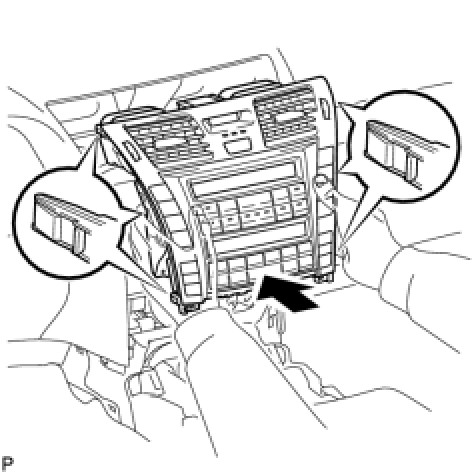

(b) Insert the panel and attach the 6 clips on its backside.





(c) Install the panel with the 2 bolts.
4. INSTALL RADIO RECEIVER ASSEMBLY Installation
5. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER Installation
6. INSTALL REAR CONSOLE PANEL UPPER Installation
7. INSTALL NO. 3 BOX PANEL Installation
8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
9. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
10. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
12. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
13. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
