AIR CONDITIONING: ROOM TEMPERATURE SENSOR (for Front Side): INSTALLATION

INSTALLATION

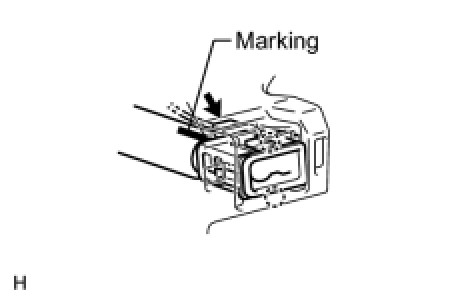

1. INSTALL ROOM TEMPERATURE SENSOR
(a) Attach the claws to install the sensor.
(b) Connect the connector.
(c) Connect the duct.
2. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Installation
3. INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING Installation
4. INSTALL INSTRUMENT SIDE PANEL LH Installation
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. REMOVE COWL TOP VENTILATOR LOUVER RH Installation
7. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

8. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
