1UR-FSE ENGINE MECHANICAL: ENGINE UNIT: REPLACEMENT

REPLACEMENT

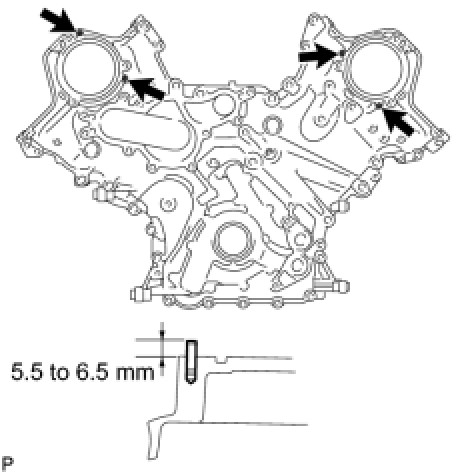

1. REPLACE TIMING CHAIN COVER STRAIGHT PIN





(a) Remove the straight pin.
(b) Using a plastic-faced hammer, tap in new straight pins to the timing chain cover.
Standard protrusion:
5.5 to 6.5 mm (0.217 to 0.256 in.)

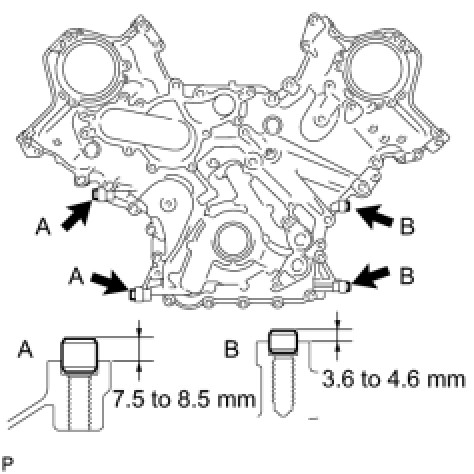

2. REPLACE TIMING CHAIN COVER RING PIN





(a) Remove the ring pin.
(b) Using a plastic-faced hammer, tap in new ring pins to the timing chain cover.

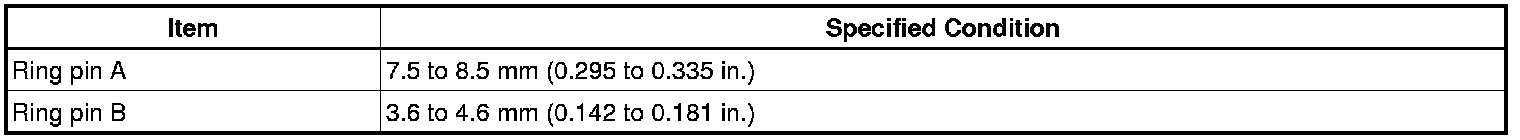

Standard protrusion:






3. REPLACE ENGINE REAR OIL SEAL

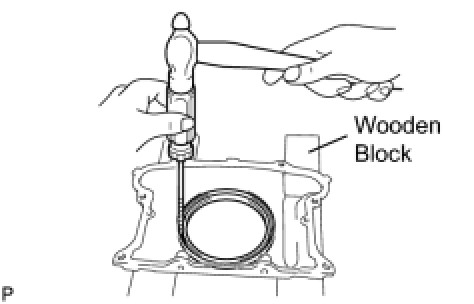

(a) Place the oil seal retainer on wooden blocks.
(b) Using a screwdriver and hammer, tap out the oil seal.

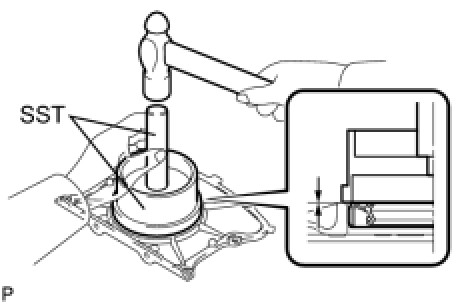

(c) Using SST, tap in a new oil seal until its surface is flush with the oil seal retainer edge.
SST: 09223-15030
SST: 09950-70010
09951-07100
- Keep the lip free from foreign matter.
- Do not tap on the oil seal at an angle.
