Removal

1UR-FSE LUBRICATION: OIL PRESSURE SWITCH: REMOVAL

REMOVAL

1. REMOVE NO. 1 ENGINE UNDER COVER Service and Repair
2. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY
(a) Disconnect the switch connector.

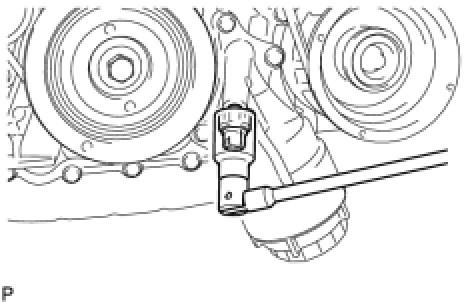

(b) Using a 24 mm deep socket wrench, remove the switch.
